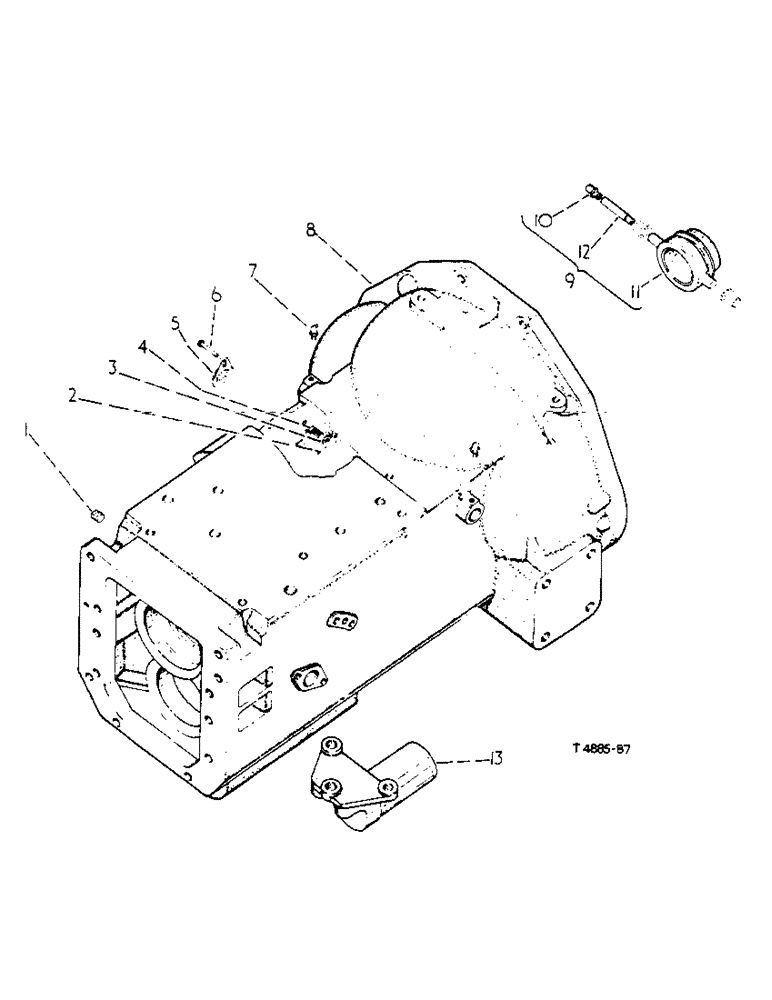

Запчасти Case IH 276 (6-64) - CLUTCH HOUSING, MOWER DRIVE ATTACHMENTS (88) - ACCESSORIES

1

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, pipe, sq.hd.,1/2" (opt.) (A.C.E.)

1шт.

1

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe - Optional (A.C.E.) Sq Hd, 1/2"-14 NPTF

1шт.

2

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16" x 1/2"

1шт.

3

Q102

WASHER

13/64" x 1/2" x 18 ga.

1шт.

4

57561D

VALVE SPRING

SPRING, clutch housing grease hole cover

1шт.

5

57559D

COVER, grease hole

1шт.

6

3072676R1

PIN

grease hole cover

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, angle lubrication, 1/8" PT - 90 degrees (A2) (C2) (E2)

1шт.

8

3070637R11

CLUTCH HOUSING

HOUSING, clutch, comprising

1шт.

3069627R1

BOLT

3шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING

2шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

3069627R1

BOLT, special, 5/8" x 5/8"

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

3070638R91

SLEEVE

clutch release, assy., w/SLEEVE NSS and FITTING 110146R91

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE, clutch release cpte., w/SLEEVE 3070639R1 and PIPE 3070642R1

1шт.

11

3070639R1

SLEEVE, clutch release

1шт.

12

3070642R1

PIPE

grease

1шт.

13

3070640R1

CARRIER

clutch release sleeve

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

hex-hd., 7/16" x 1-1/4"

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.
