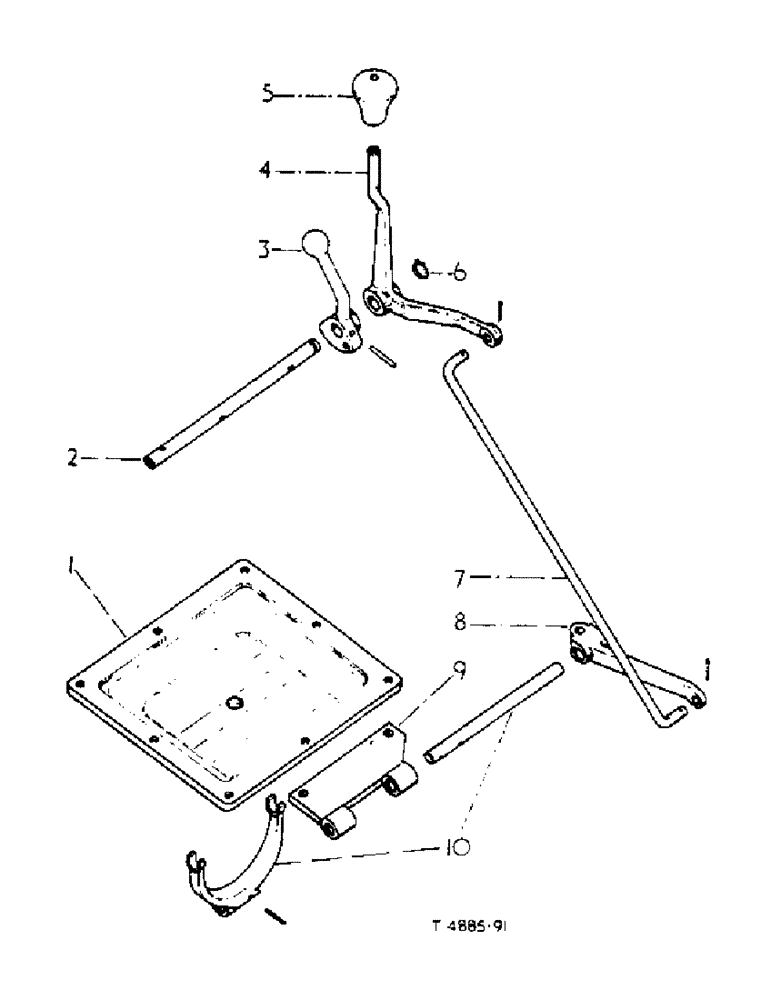

Запчасти Case IH 276 (6-63) - MOWER DRIVE ATTACHMENTS (88) - ACCESSORIES

ATTACHMENT, mower drive, for m/c's fitted with two speed C.R.P.T.O. Attachment (A) Factory Application

1шт.

3107744R91

ATTACHMENT, mower drive, for m/c's fitted with two speed C.R.P.T.O. Attachment (B)

1шт.

ATTACHMENT, mower drive for m/c's fitted with 968 r.p.m. single speed C.R.P.T.O. Attachment (C) (Factory Application)

1шт.

3107746R91

ATTACHMENT, mower drive, for m/c's fitted with 698 r.p.m. single speed C.R.P.T.O. Attachment (D)

1шт.

ATTACHMENT, mower drive, for m/c's fitted with 550 r.p.m. single speed C.R.P.T.O. Attachment (E) (Factory Apllication)

1шт.

3107748R91

1шт.

ATTACHMENT, mower drive, for m/c's fitted with 550 r.p.m. C.R.P.T.O. Attachment (F) Units. Letters of these units correspond with those following the descriptoin of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units. comprising: - MOWER DRIVE CONTROLS (see detail list) CLUTCH HOUSING (see detail list) MOWER DRIVE GEARS AND SHAFTS (Single Speed) (C.D.E.F.) (See detail list) MOWER DRIVE GEARS AN

1шт.

1

3064430R1

COVER

P.T.O. bottom, mower drive controls

1шт.

2

3049108R2

SHAFT

high low range shifter, mower drive controls

1шт.

3

3049109R1

HANDLE

high low range shifter, mower drive controls

1шт.

142358

PIN

groover type, 1/4" x 1-1/2", mower drive controls

1шт.

4

3048748R4

LEVER

forward and reverse, mower drive controls

1шт.

5

53717DA

BUTTON

BALL, gear shifter lever, mower drive controls

1шт.

6

3049105R1

RETAINER

CIRCLIP, Anderton, mower drive controls

1шт.

7

3071368R1

ROD

control, mower drive controls

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), , Mower drive controls 3/32" x 5/8"

2шт.

95-11041

WASHER,3/8"

13/32" x 13/16", mower drive controls

2шт.

8

3071368R1

ROD

LEVER, operating fork, mower drive controls

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

Mower drive controls Hex, 5/16"-18 x 1 3/8", G5

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16", mower drive controls

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Mower drive controls 5/16"

1шт.

9

3064426R91

BRACKET, operating fork, cpte., mower drive controls

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4", Mower drive controls

2шт.

10

3065499R91

FORK

w/PIN 17175R1 operating and shaft assy., mower drive controls

1шт.

17175R1

LOCK PIN,3/16" x 1", Slotted

PIN, , Mower drive controls 3/16" x 1", Slotted

2шт.
