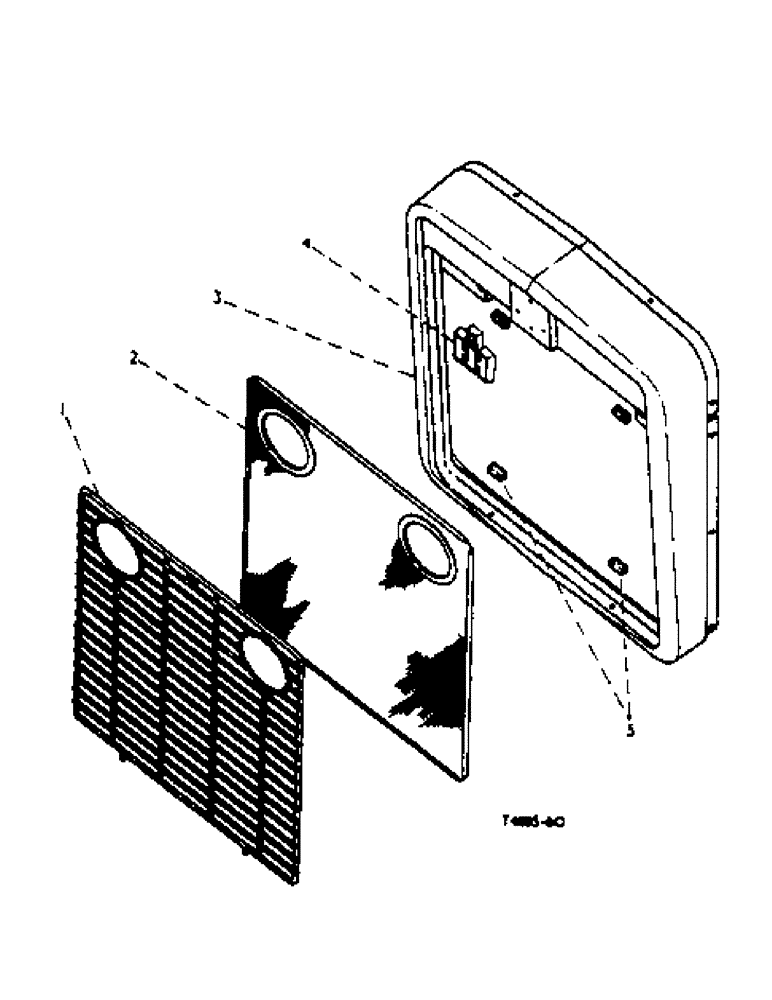

Запчасти Case IH 276 (6-61) - SPECIAL PARTS FOR CANADA (88) - ACCESSORIES

, Serial Range: Key-Units

1шт.

ATTACHMENT, special parts for Canada (Diesel) (Factory application)(Export only)(A)

1шт.

ATTACHMENT, special parts for Canada (Petrol)(Factory application)(Export only)(B) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

3073633R91

GRILLE

assy., radiator w/FASTENER 3070511R1 & RING 3070512R1

1шт.

3070511R1

FASTENER

(Dzus)

1шт.

3070512R1

RING

retaining

1шт.

2

3071092R11

RADIATOR GRILLE

MESH, cpte., radiator grille

1шт.

3

3070325R91

FRAME

cpte., radiator grille

1шт.

4

2751846R1

EMBLEM CASE/IH

PLATE, I.H. Monogram

1шт.

193238

KIT

self-tap.,pan-hd.,sltd., No. 10 x 5/16

1шт.

5

3071315R1

STRIP

cushion (4)

1шт.

3071314R91

FRAME

radiator grille, cpte., w/FRAME 3070325R91 & four STRIP 3071315R1

1шт.

3066551R1

BOLT

battery hold down (A2)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

4шт.

3071087R1

BRACKET, headlamp support, L.H. cpte.

1шт.

3071088R1

BRACKET, headlamp support, R.H. cpte.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

3071052R91

CABLE, headlamp extension (A)

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR, 1 way

3шт.

3071178R1

GROMMET, rubber (B)

1шт.

3071192R92

HARNESS

cpte., main cable (B)

1шт.

2752654R1

PRODUCT GRAPHIC

"International"

2шт.

2754371R1

DECAL

PRODUCT GRAPHIC, (Canada Sales)

1шт.
