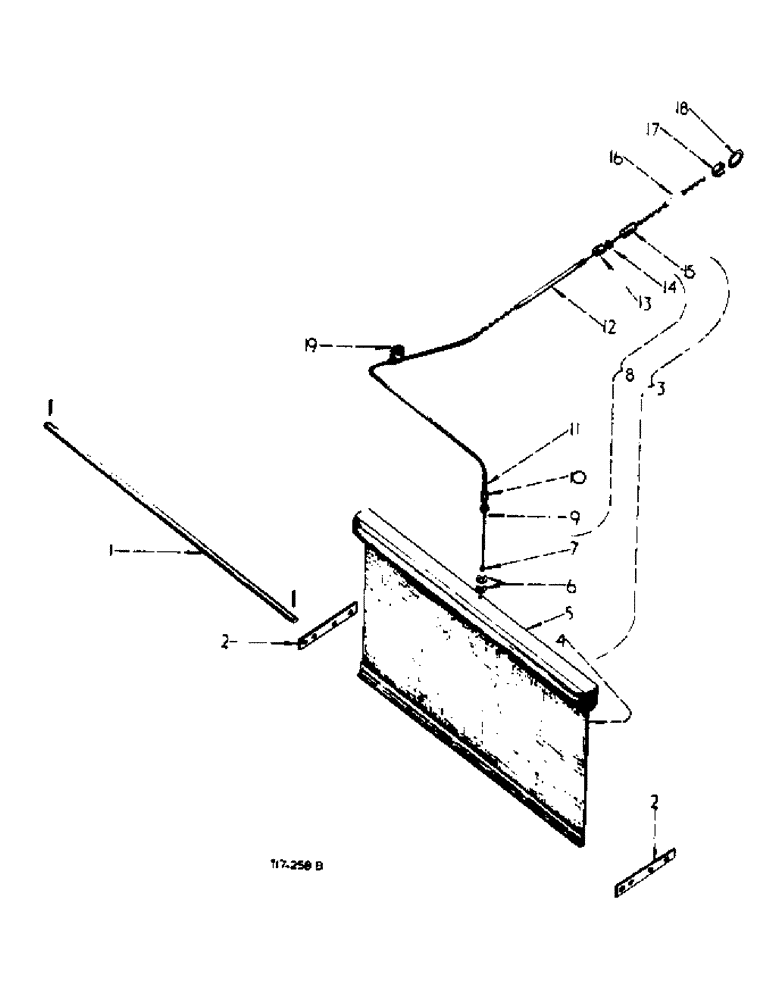

Запчасти Case IH 276 (6-54) - RADIATOR CURTAIN ATTACHMENT (88) - ACCESSORIES

707685R91

ATTACHMENT, radiator curtain

1шт.

1

707689R1

STIFFENER, radiator curtain

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16" x 1/2"

2шт.

2

707690R1

BRACKET, radiator curtain stiffener

2шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

hex., 1/4"UNF - 28

4шт.

3

707692R91

CURTAIN, radiator and operatingain

1шт.

707696R11

CABLE

1шт.

707702R91

CURTAIN

1шт.

707691R1

CONNECTOR

1шт.

707693R1

HOLDER

1шт.

707694R1

NIPPLE

1шт.

704763R1

NIPPLE

1шт.

16558R1

WASHER

2шт.

4

707702R91

CURTAIN, radiator and roller assy.

1шт.

5

707693R1

HOLDER, radiator curtain

1шт.

6

16558R1

WASHER

plain, 17/64" x 5/8"

2шт.

7

707694R1

NIPPLE, cable

1шт.

8

707696R11

CABLE

operating, radiator curtain

1шт.

707696R1

CABLE

1шт.

707697R1

CONDUIT

1шт.

707698R1

END

2шт.

707701R1

NUT

2шт.

707699R1

STOP

1шт.

707700R1

STOP

1шт.

9

707696R1

CABLE

radiator operating

1шт.

10

707700R1

STOP, adjustable, (7/8" underhead)

1шт.

11

707698R1

ENDS, conduit

2шт.

12

707697R1

CONDUIT, operating cable, radiator.

1шт.

13

707699R1

STOP, adjustable(7/8" underhead)

1шт.

14

707701R1

NUT, lock

2шт.

15

707691R1

CONNECTOR, Serial Range: cable-chain

1шт.

443885

SCREW

set, headless, sltd.,ighj.

1шт.

16

3070656R91

CHAIN (AG)

CHAIN, ball radiator curtain

1шт.

17

707688R1

CONNECTOR, ball, Serial Range: chain-ring

1шт.

18

711947R1

RING

1шт.

19

60938D

CLIP, cable (opt.)

1шт.

19

708115R1

PLATE ASSY.

CLIP, cable (opt.)

1шт.

704763R1

NIPPLE, cable

1шт.
