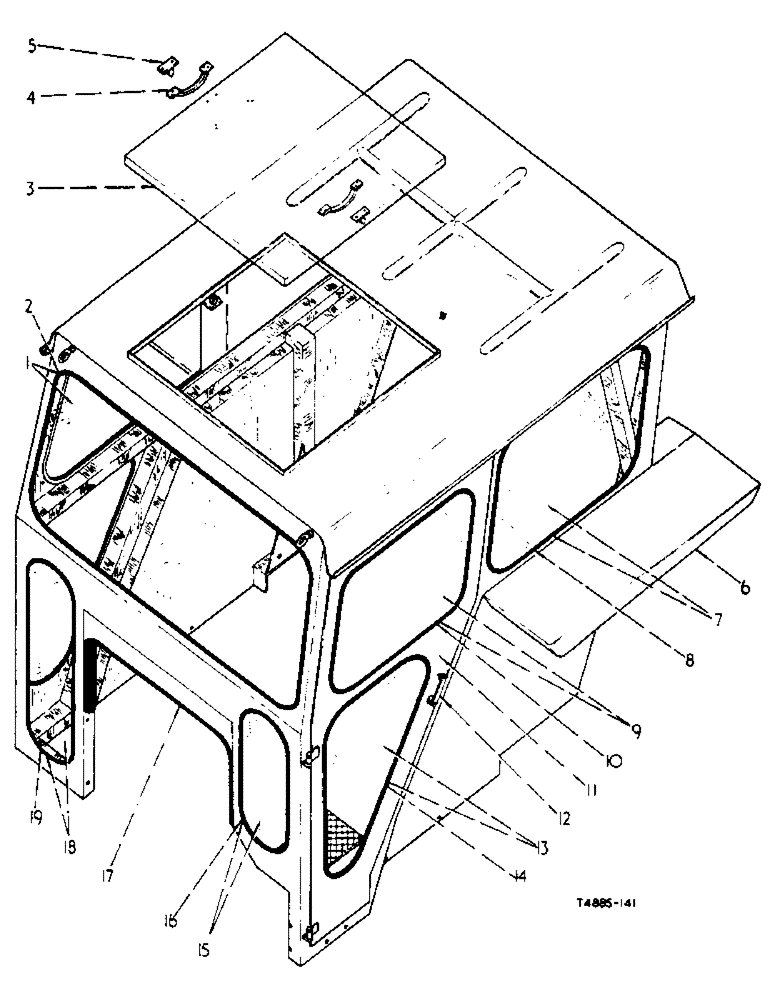

Запчасти Case IH 276 (6-75) - CAB, FRONT VIEW, TRACTOR CAB ATTACHMENT (09) - CHASSIS

1

3073153R91

GLASS

WINDSCREEN, cpte., w/RUBBERRUBBERER

1шт.

2

3073155R1

SEAL

RUBBER, windscreen

1шт.

3

3073335R1

DOOR

HATCH, escape

1шт.

4

3073337R1

HANDLE

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

3061228R1

NUT, lock

8шт.

16559R1

WASHER,1/4"

plain, 17/64

8шт.

5

3073336R1

CLIP

retaining

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

3061228R91

LOCK NUT

lock, 1/4"

4шт.

16559R1

WASHER,1/4"

plain, 17/64"

4шт.

6

3073340R1

MUDFLAP

MUDWING, I.H.

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

hex-hd., 3/8" x 3"

3шт.

3063560R1

LOCK NUT

lock, 3/8"

3шт.

120394

WASHER,3/8", SAE

WASHER, plain, 13/64"

3шт.

7

3073321R91

GLASS

WINDOW, cab, cpte., L.H. w/RUBBERER

1шт.

8

3073322R1

RUBBER

cab window

1шт.

9

3073324R91

GLASS

WINDOW, cab, cpte., upper, w/RUBBER

1шт.

10

3073325R1

RUBBER

cab, upper window

1шт.

11

3073323R91

DOOR

cpte., w/WINDOW 3073324R91,Re

1шт.

12

3073328R1

HANDLE

door (1 inside, 1 outside)

2шт.

13

3073326R91

GLASS

WINDOW, cab, cpte., lower w/RUBBERe

1шт.

14

3073327R1

RUBBER

cab, lower window

1шт.

15

3073158R91

WINDOW

cab, cpte., L.H. lowerg the

1шт.

16

3073160R1

RUBBER

cab, L.H. lower window

1шт.

17

3073157R1

STRIP

SUPERSEAL

1шт.

18

3073161R91

GLASS

WINDOW, cab, cpte., R.H. lowerg the

1шт.

19

3073165R1

RUBBER

cab, R.H. lower window

1шт.

3073684R91

WIPER MOTOR

MOTOR, wiper

1шт.

3073685R1

ARM

wiper

1шт.

3073686R1

BLADE

wiper

1шт.

3105334R1

STRIP, door sealing

1шт.
