Запчасти Case IH 276 (6-73) - TRACTOR CAB ATTACHMENT (09) - CHASSIS

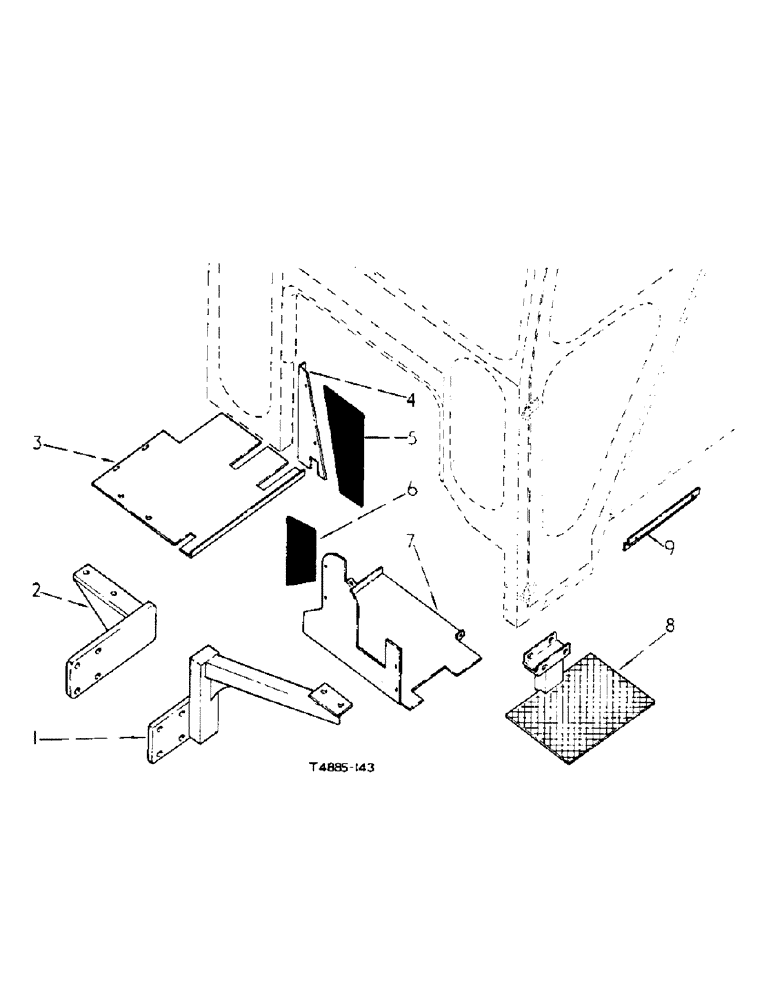

Схема запчастей Case IH 276 - (6-73) - TRACTOR CAB ATTACHMENT (09) - CHASSIS
7
6
1
4
8
3
9
5
2

Артикул

Название

Примечание

Количество

3107079R91

CAB, cpte., Yellow w/White Fenders (opt.)

1шт.

3072905R91

CAB, cpte., Red w/White Fenders (opt.) comprising : - CAB MOUNTING BRACKETS & ACCESSORIES CAB (FRONT VIEW) CAB (REAR VIEW)

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET, mounting L.H.,cab mounting brackets & accessories tractor cab attachments

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET, mounting R.H.,cab mounting brackets & accessories tractor cab attachments

1шт.

3

3073324R1

FOOTPLATE,cab mounting brackets & accessories tractor cab attachments

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8",cab mounting brackets & accessories tractor cab attachments

2шт.

3061228R91

LOCK NUT

lock, 1/4",cab mounting brackets & accessories tractor cab attachments

2шт.

16559R1

WASHER,1/4"

plain, 17/64",cab mounting brackets & accessories tractor cab attachments

2шт.

4

3073168R1

PLATE

weather, R.H.,cab mounting brackets & accessories tractor cab attachments

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8",cab mounting brackets & accessories tractor cab attachments

1шт.

3061228R91

LOCK NUT

lock, 1/4",cab mounting brackets & accessories tractor cab attachments

1шт.

16559R1

WASHER,1/4"

plain, 17/64",cab mounting brackets & accessories tractor cab attachments

1шт.

5

3073167R1

FLAP

rubber, R.H.,cab mounting brackets & accessories tractor cab attachments

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8",cab mounting brackets & accessories tractor cab attachments

2шт.

3061228R91

LOCK NUT

lock, 1/4",cab mounting brackets & accessories tractor cab attachments

2шт.

16559R1

WASHER,1/4"

plain, 17/64",cab mounting brackets & accessories tractor cab attachments

2шт.

6

3073317R1

FLAP

rubber, L.H.,cab mounting brackets & accessories tractor cab attachments

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8",cab mounting brackets & accessories tractor cab attachments

2шт.

3061228R91

LOCK NUT

lock, 1/4",cab mounting brackets & accessories tractor cab attachments

2шт.

16559R1

WASHER,1/4"

plain, 17/64",cab mounting brackets & accessories tractor cab attachments

2шт.

7

3073318R1

PLATE, weather, L.H.,cab mounting brackets & accessories tractor cab attachments

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd. 1/4" x 7/8",cab mounting brackets & accessories tractor cab attachments

4шт.

3061228R91

LOCK NUT

lock, 1/4",cab mounting brackets & accessories tractor cab attachments

4шт.

16559R1

WASHER,1/4"

plain, 17/64",cab mounting brackets & accessories tractor cab attachments

4шт.

8

3073597R1

STEP, mounting,cab mounting brackets & accessories tractor cab attachments

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

hex-hd., 3/8" x 2-3/4",cab mounting brackets & accessories tractor cab attachments

2шт.

3063560R1

LOCK NUT

lock, 3/8",cab mounting brackets & accessories tractor cab attachments

2шт.

120394

WASHER,3/8", SAE

WASHER, plain, 13/32",cab mounting brackets & accessories tractor cab attachments

2шт.

9

3073329R1

BRACKET, base,cab mounting brackets & accessories tractor cab attachments

2шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex-hd., 1/4" x 7/8",cab mounting brackets & accessories tractor cab attachments

4шт.

3061228R91

LOCK NUT

lock, 1/4",cab mounting brackets & accessories tractor cab attachments

4шт.

16559R1

WASHER,1/4"

plain, 17/64",cab mounting brackets & accessories tractor cab attachments

4шт.

Выбрано товаров: 32
