Запчасти Case IH 276 (6-40[1]) - FRONT END WEIGHT ATTACHMENT (09) - CHASSIS

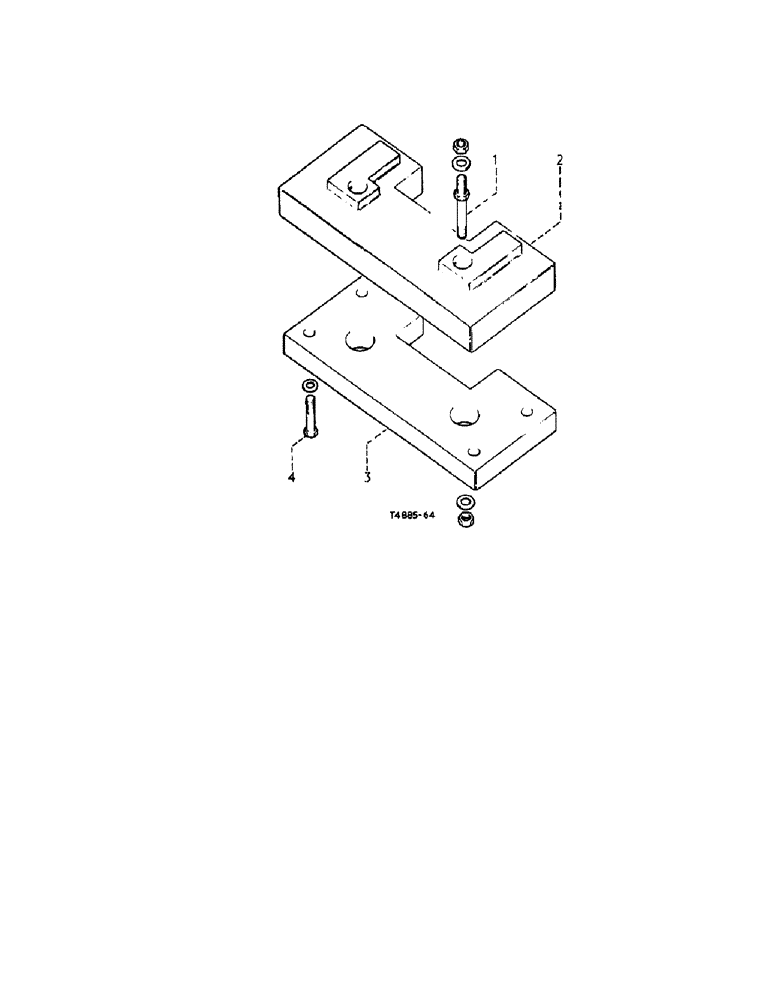

Схема запчастей Case IH 276 - (6-40[1]) - FRONT END WEIGHT ATTACHMENT (09) - CHASSIS
3
1
4
2

Артикул

Название

Примечание

Количество

ref

Part No.

EnglishENT, front end weight (2ndhe

1шт.

3071342R91

ATTACHMENT, front end weight (A)

1шт.

3071343R91

ATTACHMENT, front end weight (2ndhe

1шт.

1

3071339R1

STUD

front end weight (A)

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

(A) Jam, 5/8"-11, G5

2шт.

102639

NUT,5/8"-11, G5

(A) 5/8"-11, G5

4шт.

12258R1

WASHER

flat, 21/32" x 1-1/4" x"g

1шт.

2

3071338R1

WEIGHT

front end top (A)

1шт.

3

3071340R1

WEIGHT

front end bottom (B)

1шт.

4

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

hex-hd., 1/2" x 2-1/2" (4 B)

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .074"g

1шт.

Выбрано товаров: 11
