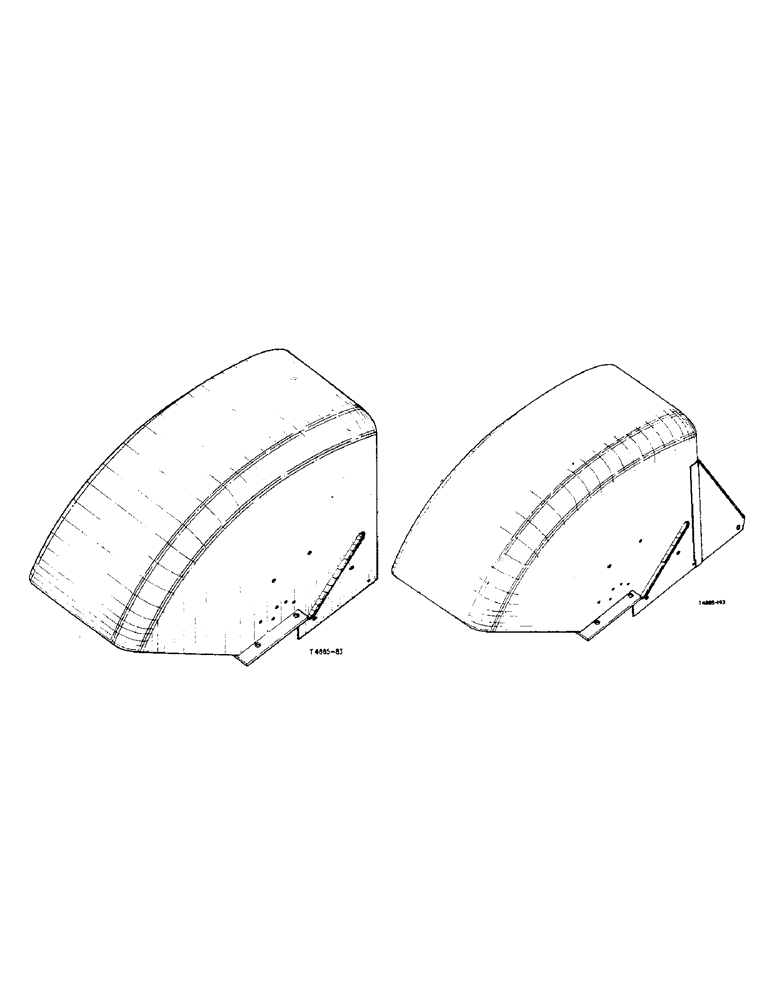

Запчасти Case IH 276 (6-39) - INDUSTRIAL REAR FENDER ATTACHMENT (09) - CHASSIS

3070966R91

ATTACHMENT, for Industrial axle (Export) (A)

1шт.

3071366R91

1шт.

ATTACHMENT, for Agricultural axle (Export) (B) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

709218R92

FENDER

assy., cpte., rear L.H.

1шт.

751784R2

BOLT, "U" 3/8" UNF (B)

1шт.

17522R1

BOLT, hex-hd., 7/16" x 2"

2шт.

179891

SHAFT

hex-hd., 1/2" x 2-1/2" (A2)

1шт.

103026

NUT,3/8"-24, G5

(B2) 3/8"-24, G5

1шт.

102637

NUT,1/2"-13, G5

(A2) 1/2"-13, G5

1шт.

495-21044

WASHER,3/8"

(flat, 7/16" x 1" (B2)) 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B2) 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A2) 1/2"

1шт.

Q5035

WASHER

thick, 17/32" x 1" x .0598 (A2)

1шт.

709219R92

FENDER

assy., cpte., rear R.H.

1шт.

751784R2

BOLT, "U" 3/8" UNF (B)

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex-hd., 1/2" x 2-1/2" (A2)

1шт.

103026

NUT,3/8"-24, G5

(B2) 3/8"-24, G5

1шт.

102637

NUT,1/2"-13, G5

(A2) 1/2"-13, G5

1шт.

495-21044

WASHER,3/8"

(flat, 7/16" x 1" (B2)) 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B2) 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A2) 1/2"

1шт.

Q5035

WASHER

thick, 17/32" x 1" x .0598 (A2)

1шт.

3074158R1

PIECE, packing (B2)

1шт.

751786R1

CENTERING RING

PIECE, packing (B)

1шт.

751787R1

PIECE, packing (B)

1шт.

751788R1

PIECE, packing (B)

1шт.

3070965R91

ATTACHMENT, for Industrial axles (Domestic) (A)

1шт.

3071365R91

1шт.

ATTACHMENT, for Industrial axles (Domestic) (B) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

3070762R1

FENDER, assy., cpte., rear L.H.

1шт.

751784R2

BOLT, "U" 3/8" UNK (B)

1шт.

17522R1

BOLT, hex-hd., 7/16" x 2"

2шт.

179891

SHAFT

hex-hd., 1/2" x 2-1/2" (A2)

1шт.

103026

NUT,3/8"-24, G5

(B2) 3/8"-24, G5

1шт.

102637

NUT,1/2"-13, G5

(A2) 1/2"-13, G5

1шт.

495-21044

WASHER,3/8"

(flat, 7/16" x 1" (B2)) 3/8"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B2) 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A2) 1/2"

1шт.

Q5035

WASHER

thick, 17/32" x 1" x .0598 (A2)

1шт.

3071763R91

FENDER, assy., cpte., rear R.H.

1шт.

751784R2

BOLT, "U" 3/8" UNF (B)

1шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex-hd., 1/2" x 2-1/2" (A2)

1шт.

103026

NUT,3/8"-24, G5

(B2) 3/8"-24, G5

1шт.

102637

NUT,1/2"-13, G5

(A2) 1/2"-13, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B2) 3/8"

1шт.

495-21044

WASHER,3/8"

(flat, 7/16" x 1" (B2)) 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A2) 1/2"

1шт.

Q5035

WASHER

thick, 17/32" x 1" x .0598 (A2)

1шт.

3074158R1

PIECE, packing (B2)

1шт.

751786R1

CENTERING RING

PIECE, packing (B)

1шт.

751787R1

PIECE, packing (B)

1шт.

751788R1

PIECE, packing (B)

1шт.
