Запчасти Case IH 276 (6-36A) - SUSPENSION SEAT WITH BALTIC PAN, BOSTROM SUSPENSION SEAT ATTACHMENTS (09) - CHASSIS

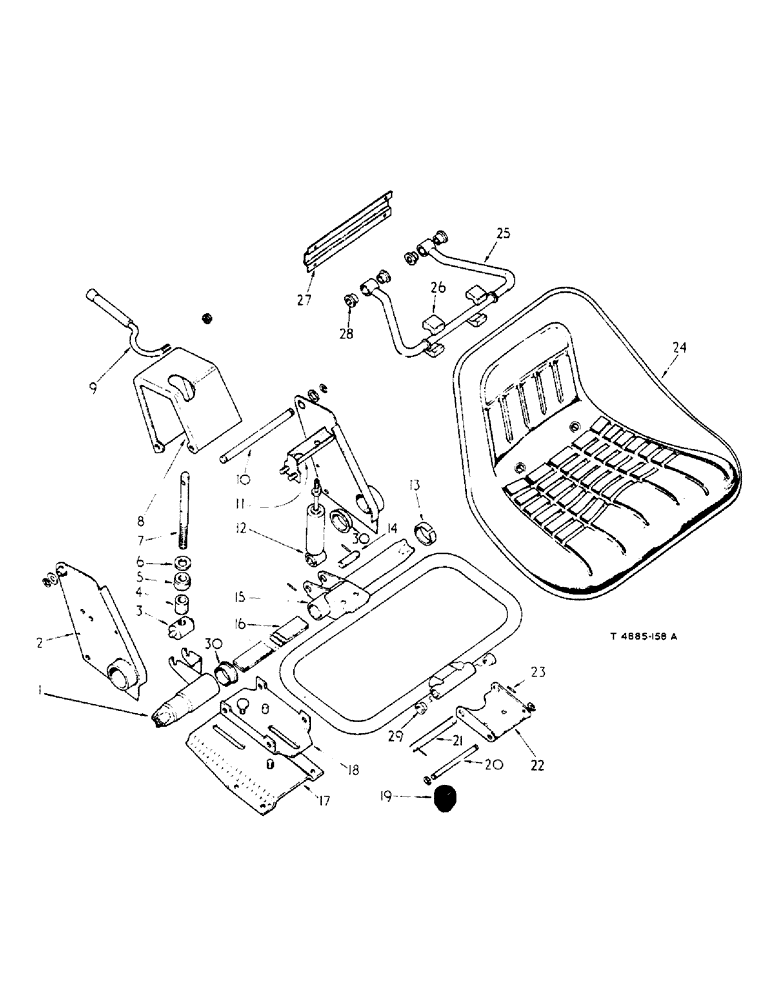

Схема запчастей Case IH 276 - (6-36A) - SUSPENSION SEAT WITH BALTIC PAN, BOSTROM SUSPENSION SEAT ATTACHMENTS (09) - CHASSIS
24
23
18
1
22
8
6
21
16
11
5
4
9
28
30
30
26
10
12
20
15
27
29
13
3
19
7
14
2
17
25

Артикул

Название

Примечание

Количество

3070784R93

SEAT

suspension, cpte., comprising

1шт.

1

3072897R91

TUBE, assy., torque w/BEARING 3109331R1

1шт.

2

3072891R1

PLATE, side R.H.

1шт.

3072899R1

STUD, push rivet (Plated)

4шт.

3

3072896R1

NUT

adjuster (Plated)

1шт.

4

3074846R1

TUBE

spacer

1шт.

5

3072898R91

BEARING, thrust

1шт.

6

3074845R1

WASHER

(Plated)

1шт.

7

3109716R1

STUD, adjuster

1шт.

3074839R1

PIN, drive

1шт.

8

3072893R1

COVER

1шт.

9

3109713R91

HANDLE, assy.

1шт.

10

3074840R1

SHAFT

1шт.

3074841R1

RING, snap

2шт.

3074849R1

WASHER, (Plated)

2шт.

11

3072892R91

PLATE ASSY.

PLATE, assy., side L.H. w/ BEARING 3109331R1

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

2шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

3074833R91

DAMPER

assy., comprising

1шт.

3074853R1

NUT, stiff

1шт.

3074852R1

WASHER

steel

1шт.

3074854R1

WASHER, rubber

1шт.

13

3074837R1

SPACER

1шт.

14

3074837R1

PIN

1шт.

15

3072890R91

FRAME, assy., seat w/two BEARING 3109332R1

1шт.

16

3074836R1

BAR

torsion

3шт.

17

3072888R91

PLATE, assy., mounting

1шт.

425-107

NUT,7/16"-14, G5

7/16" (Plated)

2шт.

18

3072889R91

BASE, assy.

1шт.

3074994R1

BOLT, hex-hd., 3/8" x 1"

4шт.

102635

NUT,3/8"-16, G5

4шт.

110730

LOCK WASHER

WASHER, lock, 3/8" (Plated)

4шт.

19

3109739R1

BUMPER

STOP, bumb

1шт.

20

3074848R1

SHAFT, (Plated)

1шт.

3074842R1

RING, snap

2шт.

21

3074847R1

PIN

1шт.

22

3074832R1

HINGE, front

1шт.

23

3074835R1

PIN, drive

4шт.

24

3074988R91

SEAT

assy., Baltic Pan

1шт.

25

3074987R91

ARM, assy. stabilizer w/four BEARING 3109333R1

1шт.

26

3074843R1

BEARING, half

4шт.

27

3074838R1

CAP

1шт.

21191R1

BOLT,Hex, 5/16"-18 x 5/8", G8, Full Thd

hex-hd., 5/16" x 3/8"

4шт.

28

3109333R1

BEARING

4шт.

29

3109332R1

BEARING

2шт.

30

3109331R1

FLANGED BEARING

BEARING

2шт.

3109714R1

WHEEL, ratchet

1шт.

3109717R1

BOLT, shoulder

1шт.

3109718R1

WASHER

1шт.

3109719R1

WASHER

1шт.

3109720R1

SCREW

1/4" x 3/4"

1шт.

Выбрано товаров: 51
