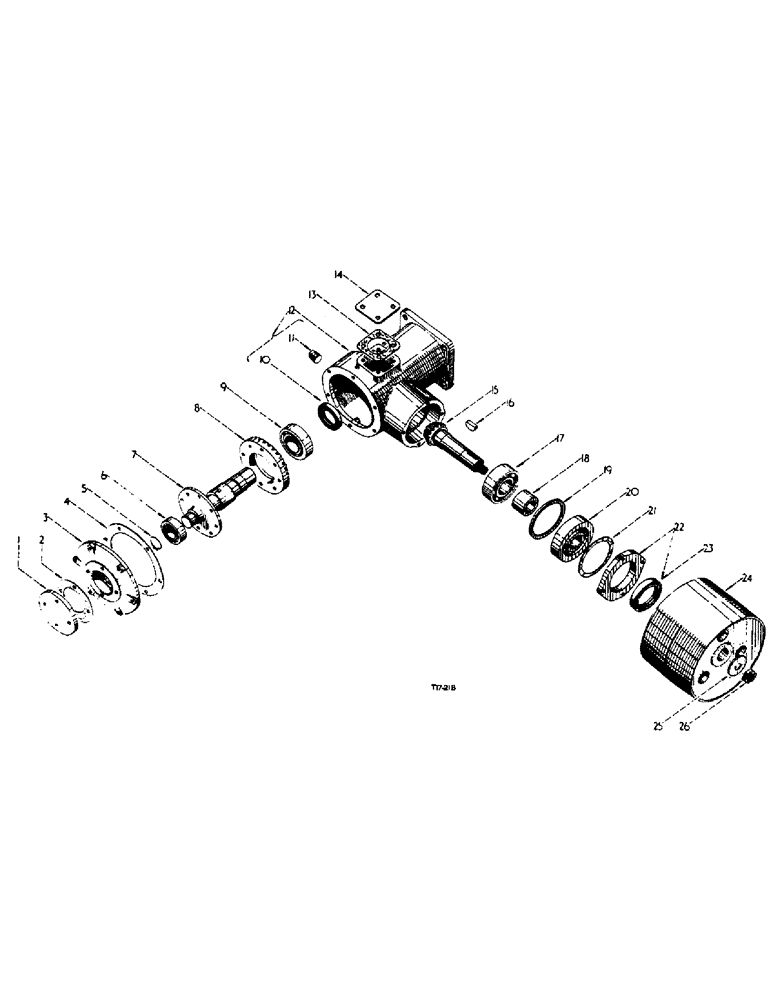

Запчасти Case IH 276 (6-34) - BELT PULLEY ATTACHMENT (09) - CHASSIS

3049002R92

ATTACHMENT, belt pulley w/SAFETY SHIELD 545 & 745 r.p.m., comprising BELT PULLEY SAFETY SHIELD (see detail list)

1шт.

1

711877R1

RETAINER

belt pulley bearing

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4"

3шт.

2

711304R2

GASKET

belt pulley bearing retainer

1шт.

3

704241R1

COVER, belt pulley drive housing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

4

704239R1

GASKET

SHIM, belt pulley drive housing cover heavy (opt.)

1шт.

4

704240R1

SHIM, belt pulley drive housing cover light (opt.)

1шт.

4

707844R1

SHIM

belt pulley drive housing cover .002 (opt.)

1шт.

5

704238R1

RETAINER

CIRCLIP, ext. type 35 mm shaft size

1шт.

6

3108784R91

BEARING, BALL

belt pulley shaft - outer (opt.)

1шт.

6

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

belt pulley shaft - outer (opt.)

1шт.

6

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

belt pulley shaft - outer (opt.)

1шт.

6

705750R91

BEARING, BALL

belt pulley shaft - outer (opt.)

1шт.

6

701445R91

BEARING, BALL

belt pulley shaft - outer (opt.)

1шт.

6

700545R91

BEARING

ball, belt pulley shaft - outer (opt.)

1шт.

6

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

belt pulley shaft - outer (opt.)

1шт.

6

659473R91

BEARING, BALL

belt pulley shaft - outer (opt.)

1шт.

7

704231R12

SHAFT

belt pulley drive, cpte.

1шт.

181333

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

8шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Type A Int Tooth, 5/16"

8шт.

8

704233R2

GEAR

bevel, belt pulley

1шт.

9

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

belt pulley shaft, inner (opt.)

1шт.

9

704234R91

BALL BEARING

BEARING, ball, belt pulley shaft, inner (opt.)

1шт.

9

704235R91

BALL BEARING

BEARING, ball, belt pulley shaft, inner (opt.)

1шт.

9

3048701R91

BALL BEARING

BEARING, ball, belt pulley shaft, inner (opt.)

1шт.

10

704229R91

OIL SEAL

belt pulley drive housing (opt.)

1шт.

10

704230R91

SEAL

OIL SEAL, belt pulley drive housing (opt.)

1шт.

10

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL, belt pulley drive housing (opt.)

1шт.

11

217-442

PLUG,3/4" - 14

pipe 3/4"

1шт.

12

704228R11

HOUSING

belt pulley drive, cpte., w/OIL SEAL 704229R91, and PLUG 103869

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

13

711882R1

GASKET

belt pulley drive housing top cover plate

1шт.

14

711881R1

PLATE

top cover, belt pulley drive housing

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, hex-hd., 3/8" x 11/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

704242R1

GEAR

PINION and SHAFT, belt pulley bevel

1шт.

16

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

17

49522H

BEARING, ball, belt pulley pinion, inner (opt.)

1шт.

17

700521R91

BALL BEARING

BEARING, ball, belt pulley pinion, inner (opt.)

1шт.

17

700523R91

BEARING, BALL

belt pulley pinion, inner (opt.)

1шт.

17

704768R91

BALL BEARING

BEARING, ball, belt pulley pinion, inner (opt.)

1шт.

18

704243R1

SPACER

bearing, belt pulley

1шт.

19

706745R1

SPACER

belt pulley pinion shaft (.148)

1шт.

19

3078348R1

SCREW

SHIM, belt pulley pinion shaft (.002)

1шт.

20

138606H

BEARING, ball, belt pulley pinion - outer

1шт.

20

704244R91

BEARING

ball, belt pulley pinion - outer

1шт.

20

704245R91

BEARING

ball, belt pulley pinion - outer

1шт.

20

3063609R91

BALL BEARING

BEARING, ball, belt pulley pinion - outer

1шт.

21

711872R1

GASKET

retainer, belt pulley pinion shaft

1шт.

22

704246R21

RETAINER

belt pulley pinion shaft cpte., w/OIL SEAL 704247R91

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

704247R91

OIL SEAL

belt pulley pinion shaft retainer (opt.)

1шт.

23

704248R91

SEAL

OIL SEAL, belt pulley pinion shaft retainer (opt.)

1шт.

23

3066620R91

SEAL

OIL SEAL, belt pulley pinion shaft retainer (opt.)

1шт.

24

704249R11

PULLEY

belt, cpte., w/BUSHING 704250R1

1шт.

704250R1

BUSHING

belt pulley

1шт.

25

704251R1

WASHER

retainer, belt pulley

1шт.

26

704252R1

NUT

belt pulley pinion shaft

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

1шт.
