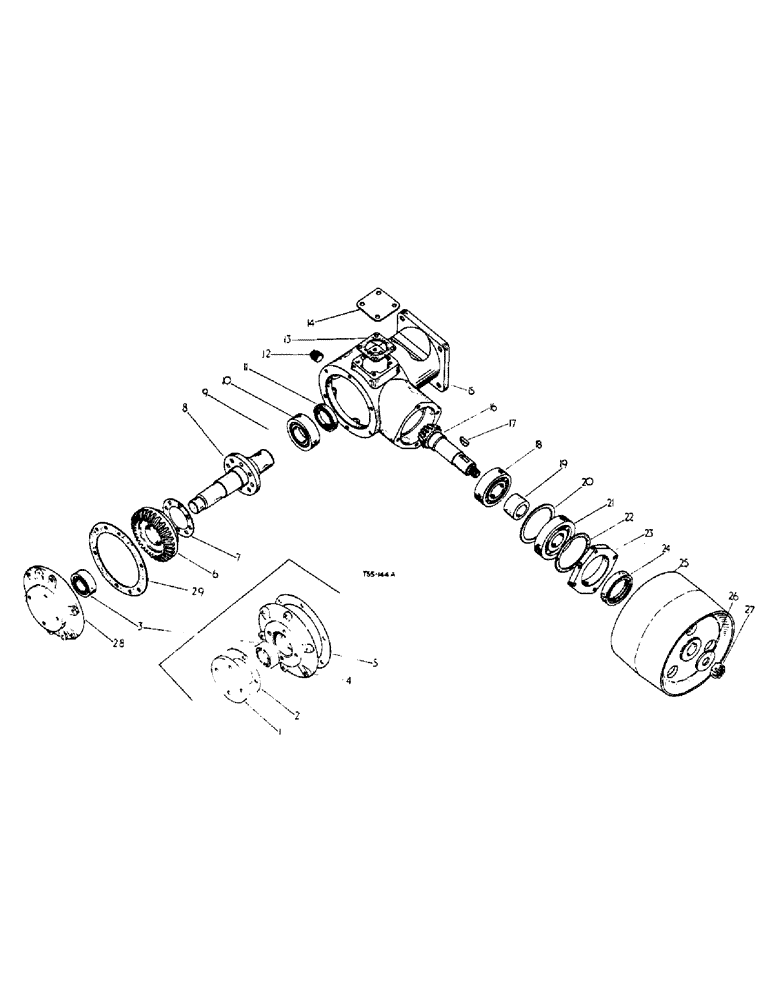

Запчасти Case IH 276 (6-32) - BELT PULLEY AND SHIELD ATTACHMENT (09) - CHASSIS

3067897R91

ATTACHMENT, belt pulley 545 r.p.m.

1шт.

Must not be used on domestic agricultural machiines

1шт.

3067899R91

ATTACHMENT, belt pulley 745 r.p.m.

1шт.

Must not be used on domestic agricultural machiines

1шт.

3067901R91

ATTACHMENT, belt pulley 1,000ngt -g

1шт.

3067898R91

1шт.

Suitable for domestic agricultural machines

1шт.

3067900R91

1шт.

Suitable for domestic agricultural machines

1шт.

3067902R91

1шт.

Suitable for domestic agricultural machines

1шт.

1

711877R1

RETAINER

belt pulley bearing

1шт.

Order Cover 3073827R1 with four Shims 3073828R1

1шт.

NLS

NO LONGER SERVICED

Belt Pulley Hex, 3/8"-16 x 1", G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley 3/8"

1шт.

2

711304R2

GASKET

belt pulley bearingshaft -g

1шт.

3

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

belt pulley shaft -g

1шт.

3

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

belt pulley shaft -g

1шт.

3

705750R91

BEARING, BALL

belt pulley shaft -g

1шт.

3

701445R91

BEARING, BALL

belt pulley shaft -g

1шт.

3

700545R91

BEARING

ball, belt pulley shaft -g

1шт.

3

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

belt pulley shaft -g

1шт.

3

659473R91

BEARING, BALL

belt pulley shaft -g

1шт.

3

3108784R91

BEARING, BALL

belt pulley shaft -g

1шт.

4

704241R1

COVER, belt pulley drive housing

1шт.

Order Cover 3073827R1 with four Shims 3073828R1

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex-hd., BELT PULLEY

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley 3/8"

1шт.

5

3067914R1

GASKET

belt pulley drive housing-g

1шт.

6

3067908R1

GEAR

belt pulley bevel (54500.O.-g

1шт.

6

3067909R1

GEAR

belt pulley bevel (745 r.p.m)

1шт.

6

3067910R1

GEAR

belt pulley bevel (1,000.O.-g

1шт.

7

3067911R1

SHIM

belt pulley bevel gear.T.O.-g

1шт.

8

3067905R11

CLUTCH

cpte., belt pulley P.T.O.-g

1шт.

8

3067907R11

SHAFT

CLUTCH, cpte., belt pulley P.T.O.-g

1шт.

9

NOT USED

1шт.

10

20161D

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

belt pulley shaft -g

1шт.

10

706234R91

PIPE

BEARING, ball, belt pulley shaft -g

1шт.

10

704235R91

BALL BEARING

BEARING, ball, belt pulley shaft -g

1шт.

10

3048701R91

BALL BEARING

BEARING, ball, belt pulley shaft -g

1шт.

11

704229R91

OIL SEAL

belt pulley drive housing

1шт.

11

704230R91

SEAL

OIL SEAL, belt pulley drive housing

1шт.

11

3066615R91

OIL SEAL,50mm ID x 80.15mm OD x 10mm Thk

OIL SEAL, belt pulley drive housing

1шт.

12

444592R1

PLUG

3/4" pipe (opt.), BELT PULLEY

1шт.

12

20963R1

PLUG,Sq Hd, 1/4"-14 NPTF

3/4" pipe (opt.), BELT PULLEY

1шт.

13

711882R1

GASKET

belt pulley drive housingve, BELT PULLEY

1шт.

14

711881R1

PLATE

belt pulley drive housingive

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

BOLT, 3/8" x 11/16" hex-hd., BELT PULLEY

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley 3/8"

1шт.

15

3067904R1

HOUSING

belt pulley drive

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

Belt pulley Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Belt pulley 1/2"

1шт.

16

3067915R1

SHAFT

PINION and shaft, belt pulley drive

1шт.

3067916R1

SHAFT

PINION and shaft, belt pulley drive

1шт.

704242R1

GEAR

PINION and shaft, belt pulley drive

1шт.

17

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

Belt pulley #D, 5/16" x 1 1/4", HT

1шт.

18

49533H

BEARING, BALL

belt pulley pinion -

1шт.

18

700521R91

BALL BEARING

BEARING, ball, belt pulley pinion -

1шт.

18

700523R91

BEARING, BALL

belt pulley pinion -

1шт.

18

704768R92

BALL BEARING

BEARING, ball, belt pulley pinion -

1шт.

19

704243R1

SPACER

belt pulley bearing

1шт.

20

3073348R1

SHIM

BELT PULLEY

1шт.

20

706745R1

SPACER

BELT PULLEY

1шт.

21

133606H

BEARING, BALL

belt pulley pinion -

1шт.

21

704224R91

BALL BEARING

BEARING, ball, belt pulley pinion -

1шт.

21

704245R91

BEARING

ball, belt pulley pinion -

1шт.

21

3063609R91

BALL BEARING

BEARING, ball, belt pulley pinion -

1шт.

22

711872R1

GASKET

belt pulley pinion shaftft)

1шт.

23

704246R21

RETAINER

w/OIL SEAL 704247R91haft), BELT PULLEY

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8" x 1-1/8" hex-hd.,, BELT PULLEY

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley 3/8"

4шт.

24

704247R91

OIL SEAL

belt pulley pinion shaft)

1шт.

24

704248R91

SEAL

OIL SEAL, belt pulley pinion shaft)

1шт.

24

3066620R91

SEAL

OIL SEAL, belt pulley pinion shaft)

1шт.

25

704249R11

PULLEY

w/BUSHING 704250R1 cpte.,h), BELT

1шт.

704250R1

BUSHING

BELT PULLEY

1шт.

26

704251R1

WASHER

belt pulley retainer

1шт.

27

704252R1

NUT

belt pulley pinion shaft

1шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), , Belt pulley 5/32" x 1 3/8"

1шт.

28

3073827R1

COVER

belt pulley drive housing

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

hex-hd., 3/8" x 1-1/8", BELT PULLEY

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley 3/8"

6шт.

29

3073828R1

SHIM

housing, BELT PULLEY

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

3/8" x 3/4" hex-hd., BELT PULLEY

8шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, , Belt pulley Int Tooth, 3/8"

8шт.

179538

BOLT, 3/8" x 7/8" hex-hd., BELT PULLEY

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Belt pulley 3/8"

1шт.
