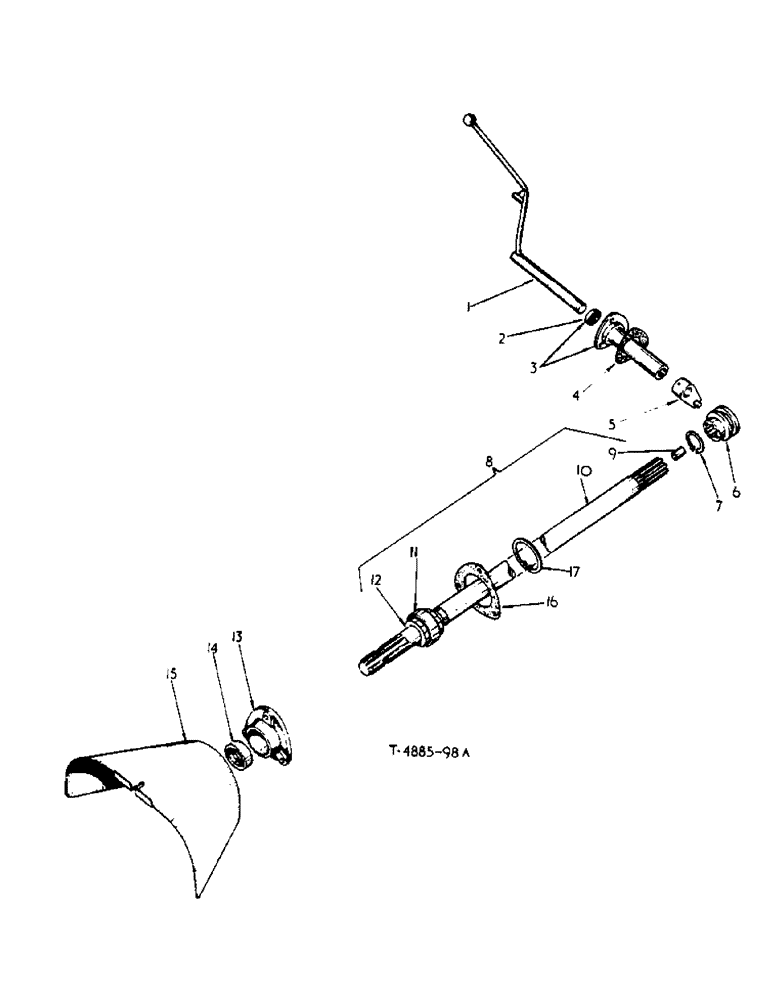

Запчасти Case IH 276 (6-30) - STANDARD REAR P.T.O. ATTACHMENT (09) - CHASSIS

3044913R92

ATTACHMENT, standard rear P.T.O.

1шт.

For use with Standard Transmission

1шт.

1

3064230R91

LEVER

cpte., P.T.O. rear clutchch)

1шт.

2

3066616R91

SEAL

OIL SEAL, P.T.O. shifter bracketch)

1шт.

2

704393R91

OIL SEAL

OIL SEAL, P.T.O. shifter bracketch)

1шт.

2

704394R91

SEAL

OIL SEAL, P.T.O. shifter bracketch)

1шт.

3

704392R21

SUPPORT

BRACKET, cpte., P.T.O. shifter

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

711312R1

GASKET

P.T.O. shifter bracket

1шт.

5

3063246R11

LEVER

SHIFTER, cpte., P.T.O. (opt.)

1шт.

5

751115R91

LEVER

SHIFTER, cpte., P.T.O. (opt.)

1шт.

38-31220

PIN,4.75mm OD x 31.75mm L, Coiled

groove, type, 1, 3/16" xtch)

1шт.

6

751113R2

CLUTCH

sliding, P.T.O. shaft rear

1шт.

7

751117R1

CLIP

CIRCLIP, P.T.O. shaft rear, clutch)

1шт.

8

3073111R91

SHAFT

cpte., P.T.O. 276D/4560 up, comprising

1шт.

Including 276P/2102 up, 2276/747 up, 2761/2008 up

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH

1шт.

NSS

NOT SOLD SEPARAT

COLLAR

2шт.

NSS

NOT SOLD SEPARAT

SHAFT

1шт.

8

751114R51

SHAFT HOUSING

SHAFT, rear cpte., P.T.O. up to 276D/4559 (order 3073111R91), comprising

1шт.

Including up to 276P/2101, up to 2276/746, up to 2761/2007

1шт.

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH

1шт.

9

48594DA

BUSHING,19.19mm ID x 20.55mm OD x 19.84mm L

BUSH, rear, P.T.O. shaft

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT, P.T.O. (order 3073111R91)

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, P.T.O. shaft (order 3073114R91) 276D/4560 up

1шт.

Including 276P/2102 up, 2276/747 up, 2761/2008 up

1шт.

11

76491H

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm W

BEARING, P.T.O. shaft (SKF) (opt.)

1шт.

11

700311R91

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, P.T.O. shaft (Fischer)tor)

1шт.

11

704769R92

BEARING, BALL,35 mm ID x 72 mm OD x 17"

BEARING, P.T.O. shaft (Hoffman)tor)

1шт.

11

705750R91

BEARING, BALL

BEARING, P.T.O. shaft (R&M) (opt.)

1шт.

11

3108784R91

BEARING, BALL

BEARING, P.T.O. shaft (NTN) up to 276D/4559 (opt.)

1шт.

Including up to 276P/2101, up to 2276/746, up to 2761/2007

1шт.

12

NSS

NOT SOLD SEPARAT

COLLAR, P.T.O. shaft (order 3073114R91) 276D/4560 up

1шт.

Including 276P/2102 up 276In/2008 up

1шт.

12

707991R1

COLLAR

P.T.O. shaft, Serial Range: up-276D/4559

1шт.

Including up to 276P/2101, up to 2276/746, up to 2761/2007

1шт.

13

704387R12

RETAINER

w/OIL SEAL 708580R91,ear)

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

3шт.

95-11034

WASHER,1/4"

11/32" x 11/16" x 16 ga.

3шт.

14

708580R91

SEAL ASSY.

OIL SEAL, P.T.O. (opt.)

1шт.

14

3065217R91

OIL SEAL

OIL SEAL, P.T.O. (opt.)

1шт.

14

3068756R91

SEAL

OIL SEAL, P.T.O. (opt.)

1шт.

15

704395R96

SHIELD

cpte., P.T.O. safety

1шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16"

6шт.

3072253R1

STUD

P.T.O. safety shield

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

16

703971R1

GASKET

P.T.O. shaft

1шт.

17

704385R1

CLIP

CIRCLIP, internal, 72 mm.

1шт.

3073114R91

SERVICE KIT

PACKAGE, P.T.O. shaft bearingt,ear)

1шт.

NSS

NOT SOLD SEPARAT

BEARING

1шт.

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

1026425R1

PRODUCT GRAPHIC

PROGRAPH, P.T.O. speed 545 r.p.m.

1шт.

1080213R1

PRODUCT GRAPHIC

PROGRAPH, P.T.O.

1шт.
