Запчасти Case IH 276 (6-16) - THREE POINT LINKAGE ATTACHMENT (09) - CHASSIS

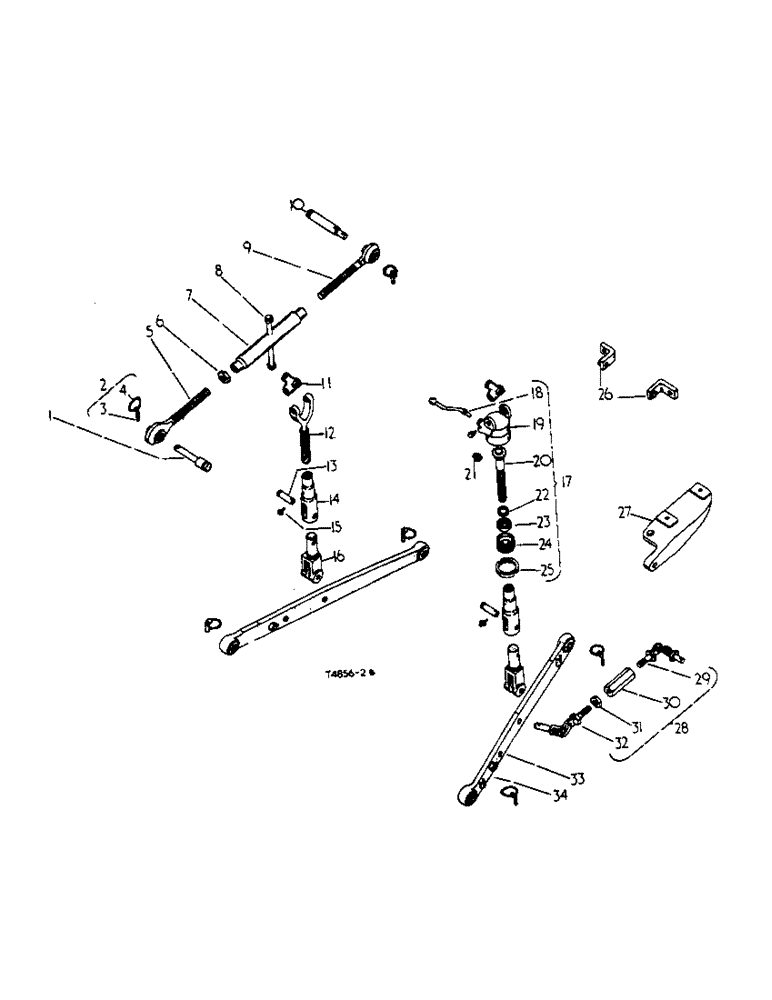

Схема запчастей Case IH 276 - (6-16) - THREE POINT LINKAGE ATTACHMENT (09) - CHASSIS
19
33
2
4
1
23
22
16
13
11
12
31
34
17
32
27
26
10
20
25
5
6
29
9
7
8
15
18
28
24
21
3
14
30

Артикул

Название

Примечание

Количество

3069516R91

ATTACHMENT, three point linkage

1шт.

Must be used when Automatic Hitch 3064664R91 is also fitted, Vary Touch

1шт.

3044339R91

LINK

top cpte., comprising

1шт.

3074763R1

RETAINER

CIRCLIP

2шт.

704177R21

BOLT

EYEBOLT

1шт.

704178R21

BOLT

EYEBOLT

1шт.

3074660R11

HANDLE

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

3074755R1

PIN

1шт.

3074756R1

PIN

1шт.

3044340R1

BUCKLE

TURNBUCKLE

1шт.

1

3074755R1

PIN

top link (Cat. I)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

2

704212R91

COTTER PIN

COTTER, w/RING 704187R1 and COTTER1

1шт.

3

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

4

704187R1

LOCKING RING

RING, clip implement cotter

2шт.

5

704178R21

BOLT

EYEBOLT, top link assy. (Cat. I)

1шт.

6

426899

NUT,Jam, 1"-8, G5

jam, hex., 1" (cad.-pltd.)

1шт.

7

3044340R1

BUCKLE

TURNBUCKLE, top link

1шт.

8

3074660R11

HANDLE

cpte.

1шт.

9

704177R21

BOLT

EYEBOLT, top link assy., (Cat. II)

1шт.

10

3074756R1

PIN

top link (Cat. II)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

11

704207R3

PIVOT

SWIVEL, lift rod

2шт.

12

3044350R1

ROD

lift upper half L.H.

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

14

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

telescoping, lift rod

2шт.

15

3071482R1

PIN

std-hd., 3/4" x 2-3/8"

2шт.

720361R1

CLIP

spring

2шт.

575813R1

WASHER

25/32" x 1-1/4" x 11 ga.

1шт.

16

3044352R1

FORK

lift rod

2шт.

17

3069056R92

ROD

cpte., lift levelling, up to21

1шт.

18

3069062R11

CRANK

levelling control cpte.

1шт.

435-1612

GROOVED PIN,3/16" x 3/4", Type A

Pin, Grooved, 3/16" x 3/4", Type A

1шт.

19

3069057R1

BOX

levelling gear

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Optional 1/8"-27 x .66 lg

1шт.

20

3069063R1

GEAR

levelling box pinion

1шт.

21

3105063R1

ROD AND GEAR, levelling 276/2621 up

1шт.

3069063R1

GEAR

levelling box pinion, up to21

1шт.

On orders for Rod 3069066R1 or Gear 3069063R1 furnish ROD and Gear 3105188R1 and Collar 3105187R1

1шт.

3069066R1

ROD

levelling, Serial Range: up-276/2620

1шт.

On orders for Rod 3069066R1 or Gear 3069063R1 furnish Rod and Gear 3105188R1 and Collar 3105187R1

1шт.

22

3105187R1

COLLAR,25.4mm ID x 34.92mm OD x 7.92mm L

levelling lift rod 276/2621

1шт.

23

3044346R91

BALL BEARING

BEARING, 1" ball thrust (opt.)

1шт.

3044347R91

THRUST BEARING

BEARING, 1" ball thrust (opt.)

1шт.

3044348R91

BEARING, THRUST

BEARING, 1" ball thrust (opt.)

1шт.

3068049R91

BALL BEARING

BEARING, 1" ball thrust (opt.)

1шт.

24

3069064R1

BEARING

levelling rod

1шт.

25

3069065R1

LOCK NUT

levelling rod bearing lock

1шт.

26

704779R3

BRACKET

check chain inner

2шт.

179439R1

BOLT, hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

27

3048461R1

BRACKET

check chain R.H. and RINGh

1шт.

3048460R1

BRACKET

check chain L.H.

1шт.

3070951R1

BOLT,Large Tee, 5/8" - 11 x 7 3/4"

"T" hd. 5/8" x 7-3/4"

4шт.

102639

NUT,5/8"-11, G5

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

3048454R91

X

CHAIN, check, assy., comprising

2шт.

29

3048456R91

CHAIN (AG)

END, tractor, check chain cpte.

2шт.

30

3048314R1

NUT

adjustable, check chain

2шт.

31

218443

NUT

jam, hex., 3/4"

2шт.

32

3048355R91

CHAIN (AG)

END, link check chain cpte.

2шт.

33

3109308R91

SWEEP

1шт.

34

3074662R1

HOLDER, link pin cpte.

4шт.

704194R2

BUSHING

BUSH, lower link

2шт.

704212R91

COTTER PIN

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

4шт.

704190R51

END

lower link cpte., (Cat. I)

1шт.

704191R51

END

lower link cpte., (Cat. II)

1шт.

709307R92

BOLT

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

3074755R1

PIN

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

709308R92

BOLT

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074756R1

PIN

1шт.

704187R1

LOCKING RING

RING, clip implement cotter

4шт.

Выбрано товаров: 82
