Запчасти Case IH 276 (6-15) - AUTOMATIC HITCH ATTACHMENT (09) - CHASSIS

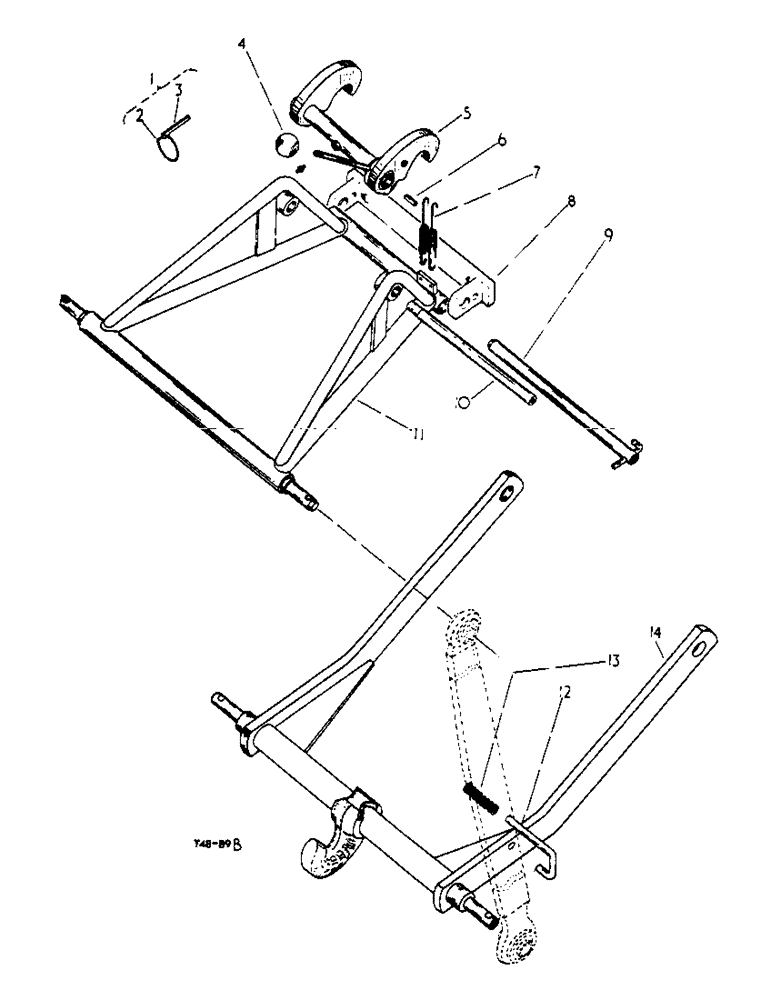

Схема запчастей Case IH 276 - (6-15) - AUTOMATIC HITCH ATTACHMENT (09) - CHASSIS
7
3
11
8
6
5
12
9
4
13
2
1
10
14

Артикул

Название

Примечание

Количество

3064664R91

ATTACHMENT, automatic hitch

1шт.

Can only be fitted to tractor fitted with Vary Touch Hyd. Lift Attach. Swinging Drawbar Attach. and Three Point Linkage Attach.

1шт.

1

704212R91

COTTER PIN

COTTER, w/COTTER 700531R1 and RINGh

1шт.

2

704187R1

LOCKING RING

RING, implement cotter, snap

1шт.

3

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

4

3063270R1

KNOB

BALL, 1-1/2" dia.

1шт.

5

3064679R91

LATCH

w/PIN 442955 cpte., radius

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT, Straightuch 1/8"-27 x .66 lg

1шт.

6

442955

PIN

5/16" x 3/4" type 2, groove

1шт.

7

3064687R1

SPRING

tension

2шт.

8

3064688R12

BRACKET

assy., pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

3064691R11

PIN

cpte., pivot

1шт.

10

3068860R1

PIVOT

SHAFT, pivot

1шт.

11

3064670R93

ARM

cpte., radius

1шт.

12

704281R2

PIN

automatic hitch retainer

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

575808R1

WASHER

19/32" x 1" x 16 ga.Touch

1шт.

13

704282R2

SPRING

automatic hitch retainer

1шт.

14

3064665R92

HOOK

cpte., trailer

1шт.

3064669R92

ARM

cpte., radius, comprising

1шт.

3064670R93

ARM

1шт.

3063270R1

KNOB

BALL

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3064679R91

LATCH

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3064686R1

SHAFT

1шт.

3064687R1

SPRING

2шт.

PO10532

WASHER

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

PO10532

WASHER

1шт.

Выбрано товаров: 33
