Запчасти Case IH 276 (6-14[1]) - AUTOMATIC HITCH ATTACHMENT (09) - CHASSIS

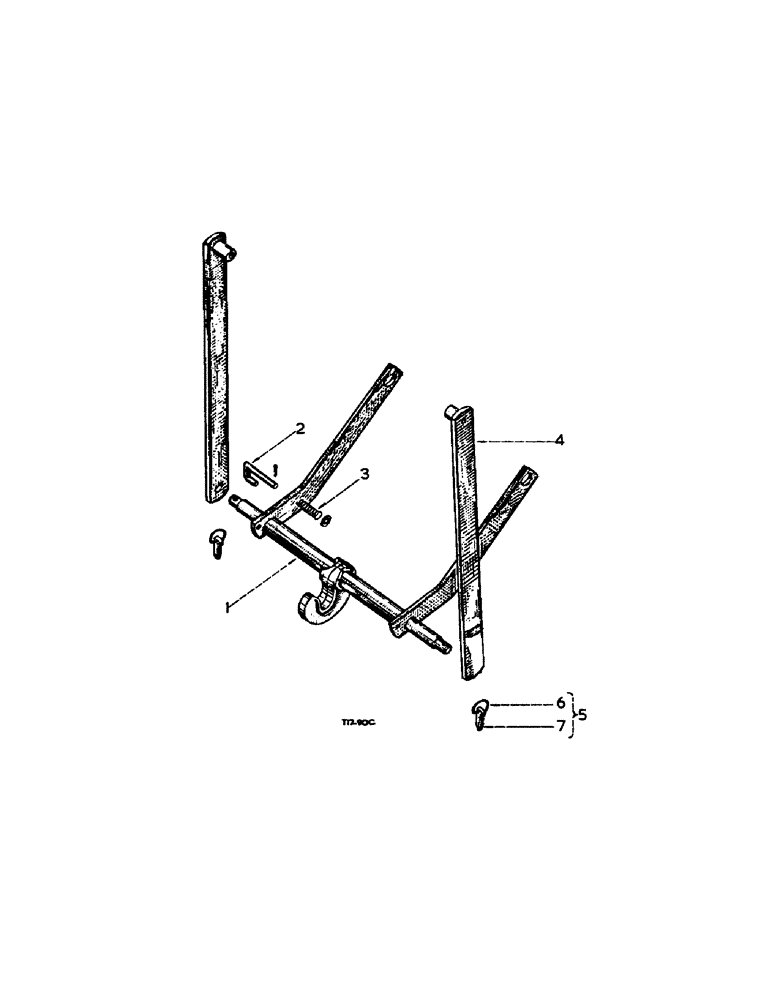

Схема запчастей Case IH 276 - (6-14[1]) - AUTOMATIC HITCH ATTACHMENT (09) - CHASSIS
6
5
3
7
2
1
4

Артикул

Название

Примечание

Количество

704275R91

ATTACHMENT, automatic hitch

1шт.

Can only be used when Tractor is fitted with Hydraulic Lift Attachment

1шт.

1

704278R31

NO LONGER SERVICED

HOOK, trailer cpte.

1шт.

2

704281R2

PIN

retainer automatic hitch

1шт.

3

704282R2

SPRING

retainer automatic hitch

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

575808R1

WASHER

19/32" x 1" x 16 ga.

1шт.

4

704276R21

LINK

lift automatic hitch cpte.

2шт.

5

704212R91

COTTER PIN

1шт.

6

704187R1

LOCKING RING

RING, clip implement cotter

2шт.

7

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

3060919R2

CAM, adjusting

2шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

BOLT, hex-hd., 3/4" x 2-1/2"

2шт.

3074662R1

HOLDER, lynch pin

2шт.

Выбрано товаров: 14
