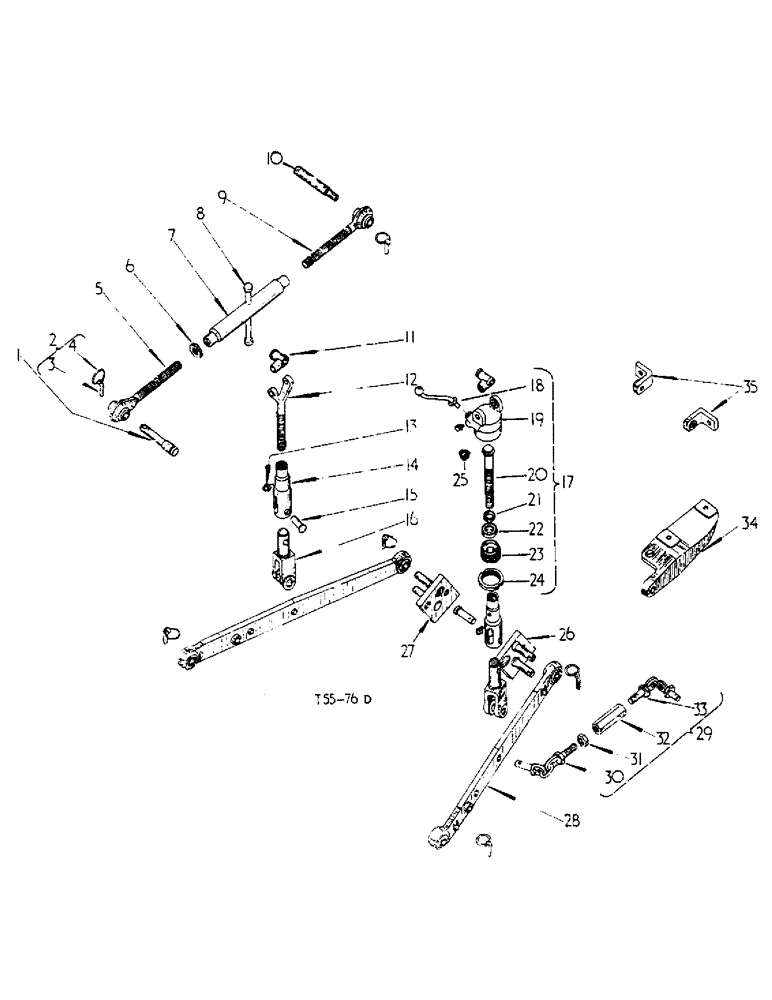

Запчасти Case IH 276 (6-12) - THREE POINT LINKAGE ATTACHMENT (09) - CHASSIS

3048451R91

ATTACHMENT, three point linkage

1шт.

Used only with Hydraulic Lift attachment, Vary Touch

1шт.

3044339R91

LINK

top, cpte., comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074660R11

HANDLE

1шт.

3074756R1

PIN

1шт.

3044340R1

BUCKLE

TURNBUCKLE

1шт.

1

3074755R1

PIN

top link (Cat. I)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

2

704212R91

COTTER PIN

1шт.

3

700531R1

NO LONGER SERVICED

COTTER, implement

6шт.

4

704187R1

LOCKING RING

RING, clip, implement cotter

6шт.

5

704178R21

BOLT

EYEBOLT, top link, assy., (Cat. I)

1шт.

6

426899

NUT,Jam, 1"-8, G5

jam, hex., 1" (cad.-pltd.)

1шт.

7

3044340R1

BUCKLE

TURNBUCKLE, top link

1шт.

8

3074660R11

HANDLE

cpte.

1шт.

9

704177R21

BOLT

EYEBOLT, top link, assy., (Cat. II)

1шт.

10

3074756R1

PIN

top link (Cat. II)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

11

704207R3

PIVOT

SWIVEL, lift rod

2шт.

12

3044350R1

ROD

lift, upper half, L.H.

1шт.

13

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

14

3045186R1

TUBE,1.5" ID, 1.906" OD, 7.8" Length

telescoping, lift rod

2шт.

15

3071482R1

PIN

std-hd., 3/4" x 2-3/8"

2шт.

720631R1

LINCH PIN

CLIP, spring

2шт.

Q3501

WASHER

25/32" x 1-1/4" x 16 ga.

1шт.

16

3044352R1

FORK

lift rod

2шт.

17

3044344R91

ROD

lift, levelling, cpte.,d,Touch

1шт.

18

704200R32

CRANK

control, levelling cpte.

1шт.

19

3044345R1

HOUSING

BOX, gear, leveling

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

LUBRICATOR, 7/16" (opt.)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LUBRICATOR, 7/16" (opt.)

1шт.

20

3044349R1

ROD

levelling

1шт.

21

704203R1

COLLAR

crank, levelling control

1шт.

NLS

NO LONGER SERVICED

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

22

3044346R91

BALL BEARING

ball, 1" (opt.)

1шт.

3044347R91

THRUST BEARING

BEARING, thrust ball, 1" (opt.)

1шт.

3044348R91

BEARING, THRUST

ball, 1" (opt.)

1шт.

3068049R91

BALL BEARING

BEARING, thrust ball, 1" (opt.)

1шт.

23

NOT USED

1шт.

24

NOT USED

1шт.

25

3048453R91

PLATE, linkage hitch, cpte., R.H.

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

26

3048452R91

PLATE ASSY.

PLATE, linkage, hitch, cpte., L.H.

1шт.

NLS

NO LONGER SERVICED

hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

27

3109308R91

SWEEP

LINK, lower, assy.

1шт.

3074662R1

HOLDER, link pin

4шт.

28

3048454R91

X

CHAIN, check, assy., comprising

2шт.

29

3048455R91

CHAIN (AG)

END, link, check chain, cpte.

2шт.

30

218443

NUT

hex., jam., 3/4"

2шт.

31

3048314R1

NUT

adjustment, check chain

2шт.

32

3048456R91

CHAIN (AG)

END, tractor, check chain, cpte.

2шт.

33

3048461R1

BRACKET

check chain R.H. end,Touch

1шт.

3048460R1

BRACKET

check chain L.H.

1шт.

3070951R1

BOLT,Large Tee, 5/8" - 11 x 7 3/4"

"T" hd., 5/8" x 7-3/4"

4шт.

102639

NUT,5/8"-11, G5

4шт.

34

704779R3

BRACKET

check chain inner

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

704194R2

BUSHING

BUSH, lower link

2шт.

704190R51

END

lower link, cpte., (Cat. I)

1шт.

704191R51

END

lower link cpte., (Cat. II)

1шт.

709307R92

BOLT

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

3074755R1

PIN

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

709308R92

BOLT

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

3074756R1

PIN

1шт.
