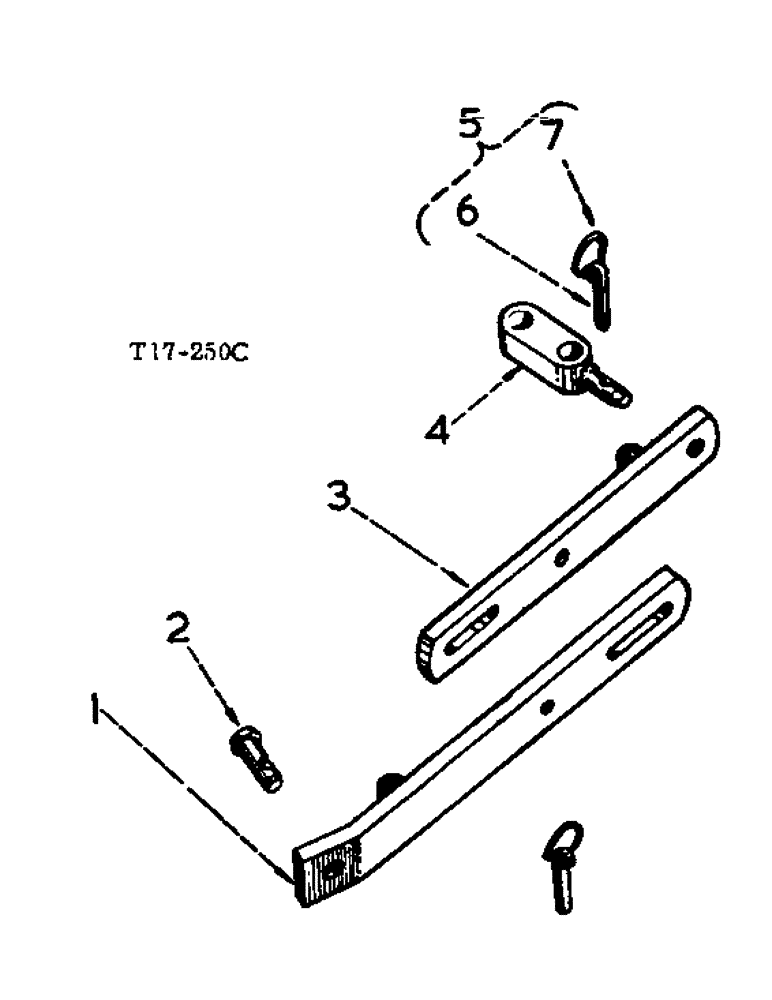

Запчасти Case IH 276 (6-11) - ADJUSTABLE CHECK LINK ATTACHMENT (09) - CHASSIS

, Serial Range: Key-Units

1шт.

707067R91

ATTACHMENT, adjustable check link (A)

1шт.

ATTACHMENT, adjustable check link (Factory Application)(B) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

707069R12

ADJUSTER

check link outer cpte., w/HOLDER 3074662R1 and PIN 704212R91

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

hex-hd., 1/2" x 1-1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32" x 1-1/16" x .095"

2шт.

2

707072R1

PIN

attaching, check link

1шт.

3

707068R12

ADJUSTER

check link inner w/Holder 3074662R1 and PIN 704212R91

1шт.

4

707070R1

BRACKET, check link

1шт.

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

hex-hd., 3/4" x 2-1/2" UNF

2шт.

218917

NUT, hex., 3/4" UNF

2шт.

5

704212R91

COTTER PIN

COTTER, implement, cpte., w/COTTER 700531R1 and RING 704187R1

2шт.

6

704187R1

LOCKING RING

RING, clip, implement cotter

2шт.

7

700531R1

NO LONGER SERVICED

COTTER, implement

2шт.

3074662R1

HOLDER, lynch pin

4шт.

707073R91

LINK, lower (B)

1шт.
