Запчасти Case IH 276 (6-09) - THREE POINT LINKAGE ATTACHMENTS (09) - CHASSIS

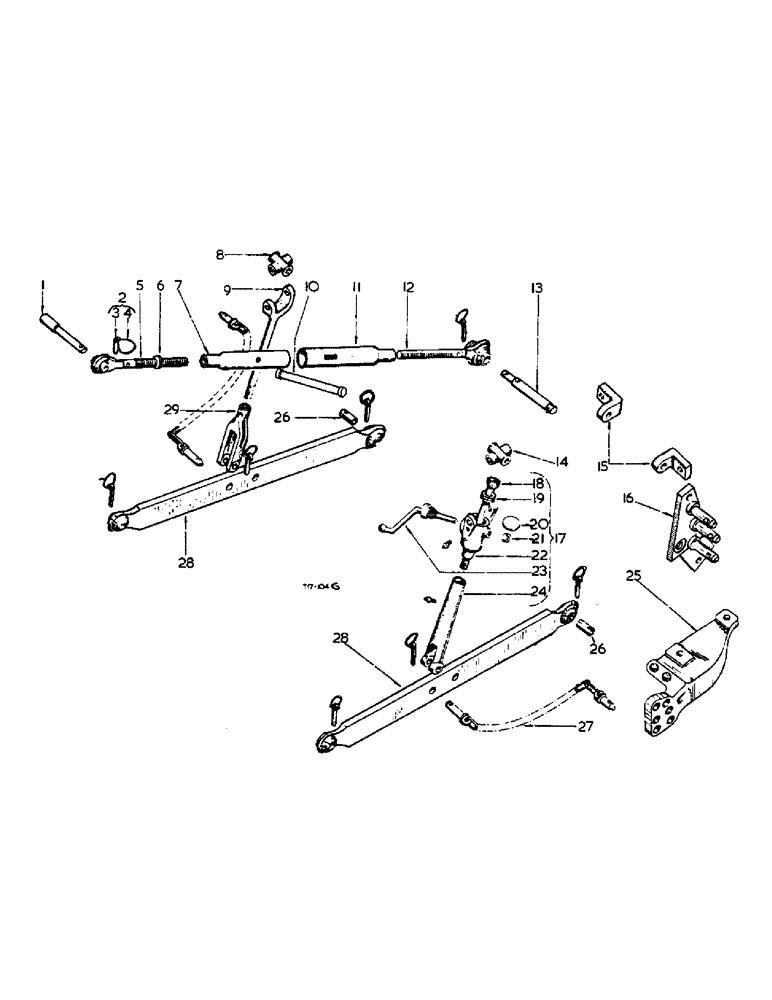

Схема запчастей Case IH 276 - (6-09) - THREE POINT LINKAGE ATTACHMENTS (09) - CHASSIS
10
25
1
8
13
26
6
20
16
5
14
28
15
4
26
22
27
7
9
11
23
18
19
3
2
21
29
28
17
24
12

Артикул

Название

Примечание

Количество

, Serial Range: Key-Units

1шт.

707820R93

ATTACHMENT, three point linkage (High Hitch Points) (A)

1шт.

706137R94

ATTACHMENT, three point linkage (Low Hitch Points) (B)

1шт.

3044296R92

1шт.

ATTACHMENT, three point linkage (High and Low Hitch Points) (C) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

704176R94

LINK, top, telescoping, cpte., comprising

1шт.

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

1шт.

704178R21

BOLT

EYEBOLT

1шт.

704177R21

BOLT

EYEBOLT

1шт.

704179R1

LINK

1шт.

704180R1

LINK

1шт.

3069861R1

NUT

1шт.

426899

NUT,Jam, 1"-8, G5

1шт.

1

3074755R1

PIN

top link (Cat. I)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

2

704212R91

COTTER PIN

COTTER, implement, assy., w/COTTER 700531R1 and RING 704187R1

10шт.

3

700531R1

NO LONGER SERVICED

COTTER, implement

10шт.

4

704187R1

LOCKING RING

RING, clip implement cotter

10шт.

5

704178R21

BOLT

EYEBOLT, top link, asy., (Cat. I) w/BALL

1шт.

6

426899

NUT,Jam, 1"-8, G5

hex., jam., 1" (cad.-pltd.)

1шт.

7

704180R1

LINK

top telescoping (half) (Cat. I end.)

1шт.

8

704207R3

PIVOT

SWIVEL, lift rod

1шт.

9

704541R3

ROD

lift, upper half

1шт.

3044309R1

PIN

std., hd., (special)

2шт.

432-1216

COTTER PIN,3/16" x 1"

PIN, cotter, 3/4" x 1"

2шт.

10

19952R1

BOLT,Hex, 1/2" - 13 x 7", Gr 5

hex-hd., 1/2" x 7" (cad.-pltd.)

1шт.

3069861R1

NUT

self sealing 1/2" (cad.-pltd.)

1шт.

11

704179R1

LINK

top, telescoping (half) (Cat. 2 end.)

1шт.

12

704177R21

BOLT

EYEBOLT, top link, assy., (Cat. 2) w/BALL

1шт.

13

3074756R1

PIN

top link (Cat. 2)

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

14

704207R3

PIVOT

SWIVEL, lift rod

1шт.

15

704779R3

BRACKET

check chain inner

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

hex-hd., 1/2" x 1-1/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16

3064335R91

PLATE, support, drawbar, cpte., R.H. (A)

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex-hd., 3/4" x 1-1/8" (A2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (A2)

1шт.

16

3064336R91

PLATE, support, drawbar cpte., L.H. (A)

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex-hd., 3/4" x 1-1/8" (A2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (A2)

1шт.

17

704196R96

ROD

lift, leveling, cpte., comprising

1шт.

704197R91

BALL BEARING

BEARING

1шт.

704195R4

BOX

1шт.

704200R32

CRANK

1шт.

704203R1

COLLAR

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR

2шт.

704205R3

NUT

1шт.

NLS

NO LONGER SERVICED

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

172578

PLUG,Exp, 1 3/4"

1шт.

704198R1

ROD

1шт.

18

704198R1

ROD

leveling

1шт.

19

704197R91

BALL BEARING

BEARING, ball, thrust 20 mm. (opt.)

1шт.

19

704201R91

BALL BEARING

BEARING, ball, thrust 20 mm. (opt.)

1шт.

19

704202R91

BALL BEARING

BEARING, ball, thrust 20 mm. (opt.)

1шт.

20

172578

PLUG,Exp, 1 3/4"

expansion, 1-3/4" O.D.

1шт.

21

704203R1

COLLAR

levelling, control crank

1шт.

142507

GROOVED PIN

Pin, Grooved, 3/16" x 7/8", Type A

1шт.

22

704195R4

BOX

levelling

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

LUBRICATOR, 7/16"

1шт.

23

704200R32

CRANK

levelling control

1шт.

24

704205R3

NUT

levelling rod

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

LUBRICATOR, 7/16"

1шт.

25

707815R1

BRACKET, check chain, R.H. (A)

1шт.

25

707814R1

BRACKET, check chain, L.H. (A)

1шт.

3070951R1

BOLT,Large Tee, 5/8" - 11 x 7 3/4"

mach., "T" hd., 5/8" x 7-3/4"

4шт.

102639

NUT,5/8"-11, G5

4шт.

26

704194R2

BUSHING

BUSH, lower link

2шт.

27

704208R93

CHAIN (AG)

CHAIN, check, assy.

2шт.

28

704188R97

LINK

lower, assy., w/two HOLDER 3074662R1

2шт.

3074662R1

HOLDER, lynch pin

4шт.

29

704542R5

ROD

lift, lower half

1шт.

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Lift rod 1/8"-27 x .66 lg

1шт.

30

NOT USED

1шт.

31

NOT USED

1шт.

32

NOT USED

1шт.

33

3060786R11

PLATE

support, drawbar, cpte., (B)

1шт.

33

3060787R11

PLATE

support, drawbar, cpte., (B)

1шт.

34

704214R2

BRACKET

check chain, R.H. (B)

1шт.

34

704213R2

BRACKET, check chain, L.H. (B)

1шт.

35

3064338R91

PLATE, support, drawbar, cpte., L.H. (C)

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex-hd., 3/4" x 3/8" (C2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (C2)

1шт.

35

3064339R91

PLATE, support, drawbar, cpte., R.H. (C)

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex., hd., 3/4" x 1-3/8" (C2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (C2)

1шт.

36

3044307R1

BRACKET, check chain L.H. (C)

1шт.

36

3044308R1

BRACKET, check chain R.H. (C)

1шт.

704190R51

END

lower link, cpte., (Cat. I)

1шт.

704191R51

END

lower liink, cpte., (Cat. 2)

1шт.

709307R92

BOLT

EYEBOLT, top link, assy., (Cat. I), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704178R21

BOLT

EYEBOLT

1шт.

3074755R1

PIN

1шт.

218445

NUT,Jam, 1"-8, G5

1шт.

709308R92

BOLT

EYEBOLT, top link, assy., (Cat. 2), comprising

1шт.

3074763R1

RETAINER

CIRCLIP

1шт.

704212R91

COTTER PIN

COTTER

1шт.

704177R21

BOLT

EYEBOLT

1шт.

704185R1

HOOK

1шт.

3074756R1

PIN
