Запчасти Case IH 276 (6-08) - HEAVY DUTY CHECK CHAIN ATTACHMENT (09) - CHASSIS

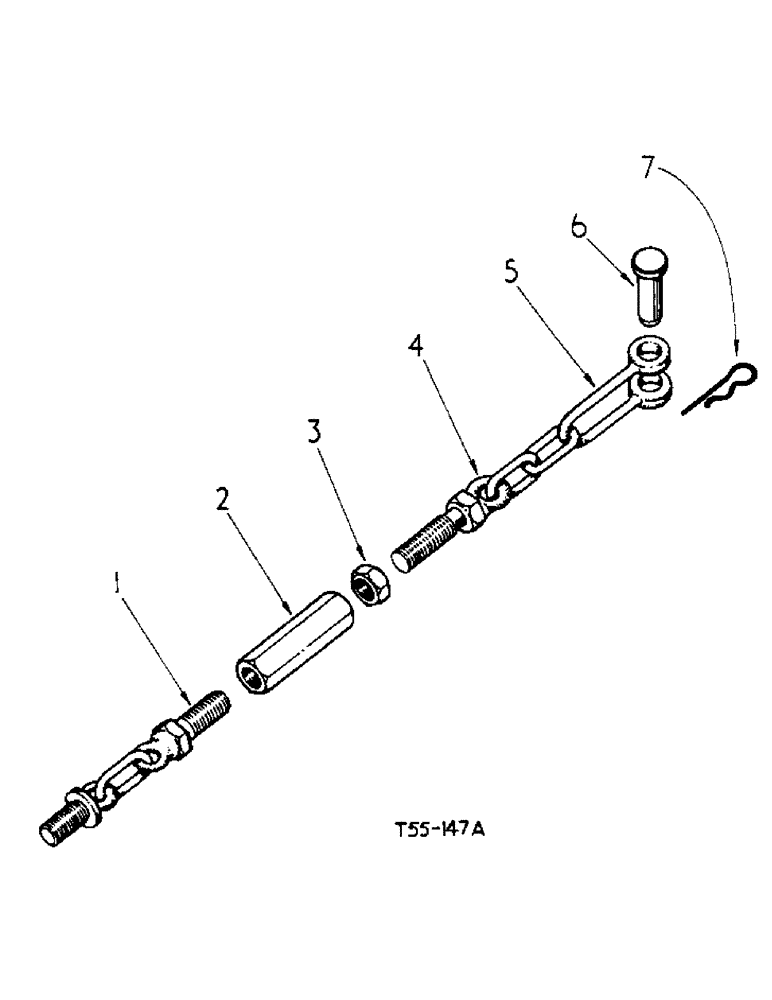

Схема запчастей Case IH 276 - (6-08) - HEAVY DUTY CHECK CHAIN ATTACHMENT (09) - CHASSIS
1
7
5
6
4
2
3

Артикул

Название

Примечание

Количество

368166R91

ATTACHMENT, heavy duty check chain, each comprising

1шт.

Used only with Three Point Linkage Attachment and Vary Touch Hydraulic Lift Attachment

1шт.

3068168R92

CHAIN ASSY., heavy duty, check, , each comprising Ref. 1 - 7

1шт.

1

3073107R91

LINK

CHAIN, check, tractor end,Touch

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

1шт.

2

3048314R1

NUT

check chain adjustment

1шт.

3

218443

NUT

jam, hex., 3/4"

1шт.

4

3048309R91

CHAIN (AG)

CHAIN, check, link end, cpte.

1шт.

5

3068173R1

SHACKLE, special dee

1шт.

6

Q1237

PIN,3/4" x 2 1/2"

std. hd., 3/4" dia. xTouch

1шт.

7

720631R1

LINCH PIN

PIN, cotter

1шт.

Выбрано товаров: 11
