(6-07) - ADJUSTABLE CHECK CHAIN ATTACHMENT

Запчасти Case IH 276 (6-07) - ADJUSTABLE CHECK CHAIN ATTACHMENT (09) - CHASSIS

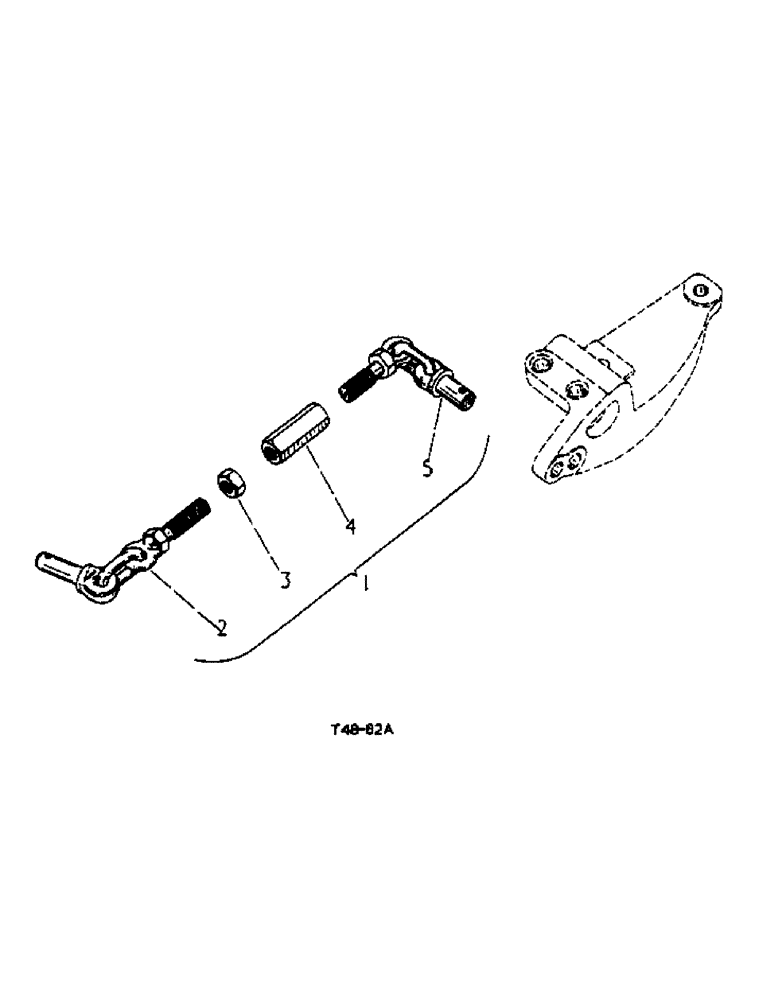

Схема запчастей Case IH 276 - (6-07) - ADJUSTABLE CHECK CHAIN ATTACHMENT (09) - CHASSIS
2
4
1
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

ATTACHMENT, adjustable check chain (Factory application)

1шт.

1

3063509R91

CHAIN (AG)

CHAIN, check, assy., adjustable, comprising

2шт.

2

3063510R91

END

check chain link, cpte.

2шт.

3

218443

NUT

jam, hex., 3/4"

2шт.

4

3063512R1

NUT

adjustment, check chain

2шт.

5

3063511R91

END ASSY.

END, tractor, check chain, cpte.

2шт.
