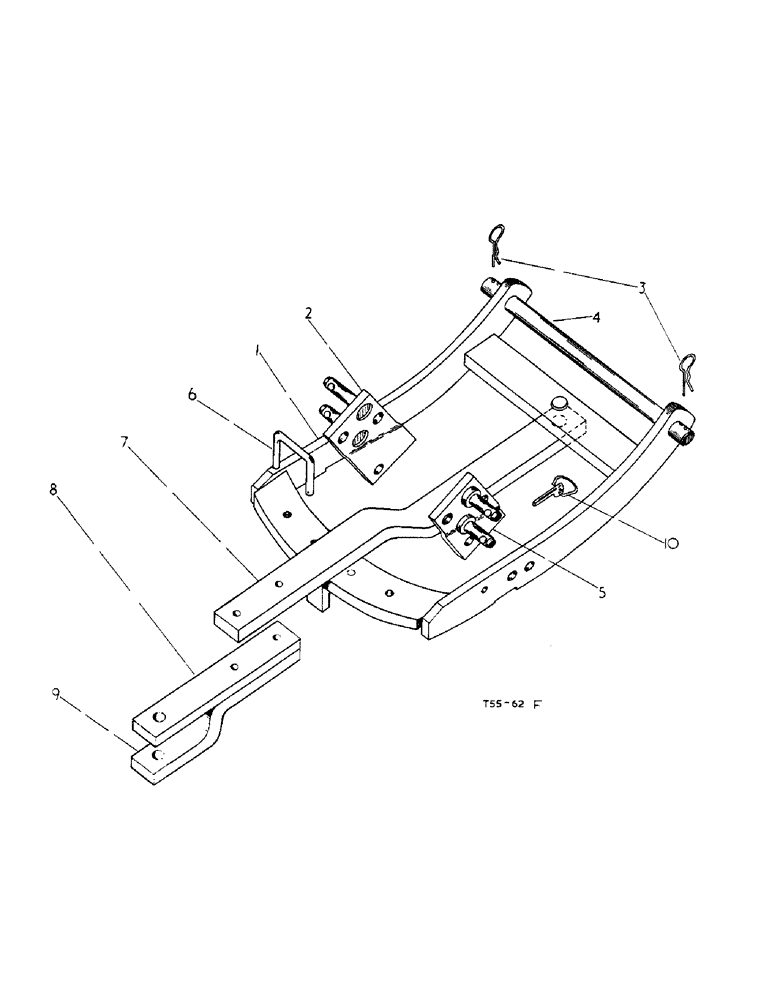

Запчасти Case IH 276 (6-06) - DRAWBAR ATTACHMENT (09) - CHASSIS

3044439R93

ATTACHMENT, drawbar

1шт.

1

704022R93

FRAME, drawbar, cpte.

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

hex-hd., 3/4" x 2"

2шт.

220081

NUT

hex., 3/4"

2шт.

2

3060786R11

PLATE

support, drawbar, L.H. cpte.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

3

3067210R1

CLIP

spring

2шт.

4

704058R1

PIN

drawbar frame

1шт.

5

3060787R11

PLATE

support, drawbar, R.H. Touch

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

6

704061R5

PIN

stop, swinging drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

7

3064331R1

BAR

DRAWBAR, adjustable height, cpte.

1шт.

Used with Adjustable Height Drawbar

1шт.

7

704059R3

BAR

DRAWBAR, swinging

1шт.

NLS

NO LONGER SERVICED

hex-hd., 5/8" x 2-1/2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

8

3064334R1

ARM

drawbar clevis

1шт.

Used with Adjustable Height Drawbar

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex-hd., 5/8" x 4"

2шт.

Used with Adjustable Height Drawbar

1шт.

102639

NUT,5/8"-11, G5

2шт.

Used with Adjustable Height Drawbar

1шт.

9

704060R2

NO LONGER SERVICED

CLEVIS, drawbar

1шт.

3064333R1

DRAWBAR CLAMP

CLEVIS, drawbar

1шт.

Used with Adjustable Height Drawbar

1шт.

3064333R11

ROLLER

CLEVIS, cpte., drawbar

1шт.

On orders for Clevis 3064333R11 furnish Clevis 3064333R1 and Arm 3064334R1

1шт.

Used with Adjustable Height Drawbar

1шт.

10

704212R91

COTTER PIN

COTTER, implement, cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, clip, implement cotter

1шт.
