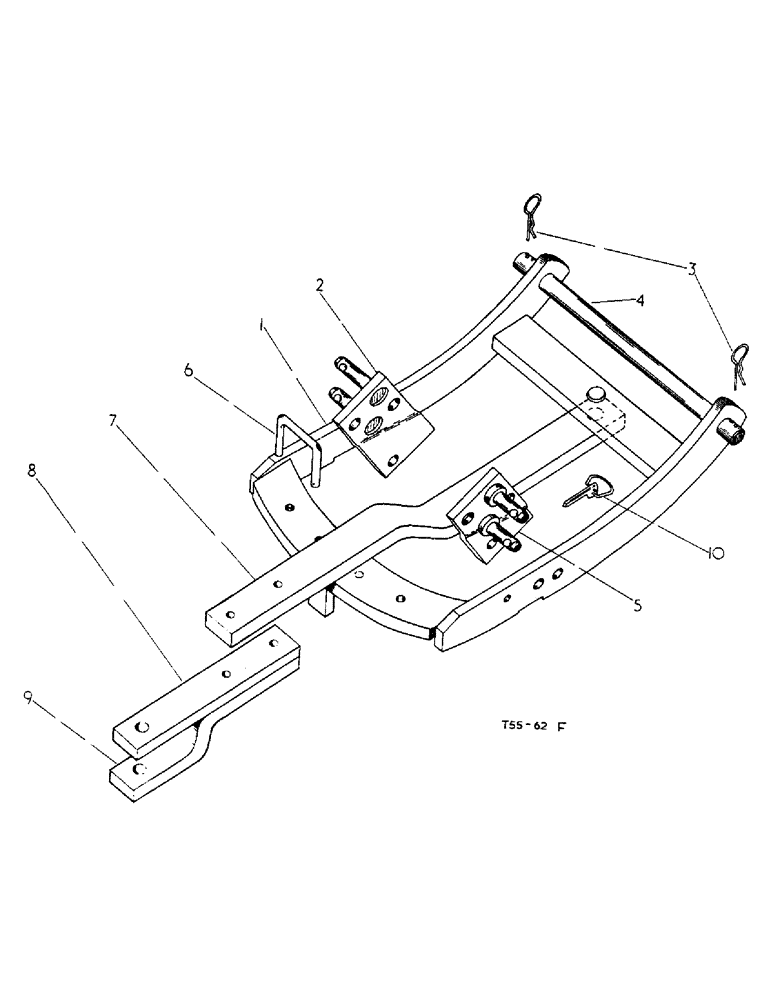

Запчасти Case IH 276 (6-05) - DRAWBAR ATTACHMENTS (09) - CHASSIS

3064693R92

1шт.

1

3071323R91

FRAME

cpte., drawbar

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

hex-hd., 3/4" x 2-1/4"

2шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4"

2шт.

2

3060786R11

PLATE

cpte., drawbar support L.H.

1шт.

271606

BOLT,Hex, 3/4" - 10 x 1 3/8", Gr 5

hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

3

3067210R1

CLIP

spring

2шт.

4

704058R1

PIN

drawbar frame

1шт.

5

3060787R11

PLATE

support, drawbar cpte., R.H.

1шт.

NLS

NO LONGER SERVICED

hex-hd., 3/4" x 1-3/8"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

2шт.

6

3071789R1

NO LONGER SERVICED

PIN, stop, swinging, drawbar

1шт.

720631R1

LINCH PIN

PIN, cotter

1шт.

7

3071322R2

SWINGING DRAWBAR

DRAWBAR, cpte., swinging,bar &houte

1шт.

8

3064334R1

ARM

drawbar clevis

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex-hd., 5/8" x 4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

9

3064333R1

DRAWBAR CLAMP

CLEVIS, drawbar

1шт.

3064333R11

ROLLER

CLEVIS, assy., drawbar

1шт.

On orders for Clevis 3064333R11 furnish Clevis 3064333R1 and Arm 3064664R1

1шт.

10

704212R91

COTTER PIN

COTTER, implement cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, clip, implement cotter

1шт.
