Запчасти Case IH 276 (6-04) - DRAWBAR ATTACHMENTS (09) - CHASSIS

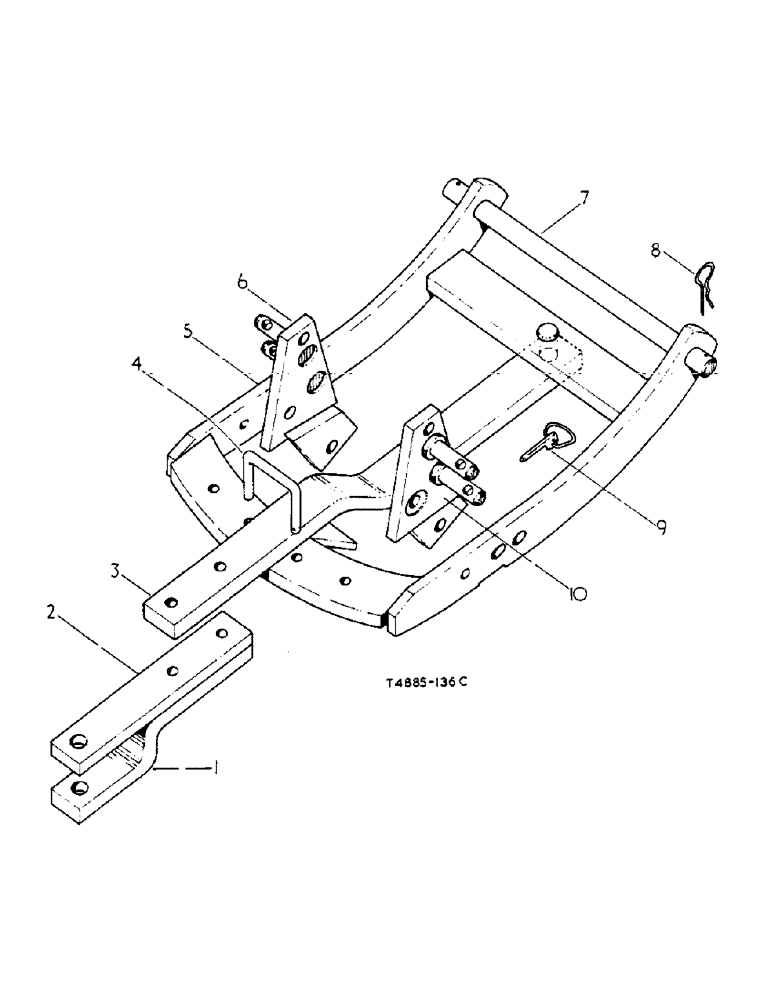

Схема запчастей Case IH 276 - (6-04) - DRAWBAR ATTACHMENTS (09) - CHASSIS
1
10
6
5
3
4
2
7
9
8

Артикул

Название

Примечание

Количество

3070066R92

ATTACHMENT, swinging drawbar &houte

1шт.

For use with Automatic Hitch 3069524R91

1шт.

3069521R92

ATTACHMENT, swinging drawbar &h the

1шт.

For use with Automatic Hitch 3069524R91

1шт.

1

3064333R1

DRAWBAR CLAMP

CLEVIS, drawbar

1шт.

3064333R11

ROLLER

CLEVIS, cpte., drawbar

1шт.

On orders for Clevis 3064333R11 furnish Clevis 3064333R1 and Arm 3064334R1

1шт.

2

3064334R1

ARM

drawbar clevis

1шт.

223444

BOLT,Hex, 5/8" - 11 x 4", Gr 8

hex-hd., 5/8" x 4"

2шт.

102639

NUT,5/8"-11, G5

2шт.

3

3071322R2

SWINGING DRAWBAR

DRAWER cpte., swinging, adjustable.

1шт.

4

3071789R1

NO LONGER SERVICED

PIN, stop, swinging drawbar

1шт.

720631

COTTER PIN

PIN, cotter

1шт.

5

3071328R91

FRAME

drawbar, cpte.

1шт.

6

3064335R91

PLATE, drawbar support, cpte., L.H.

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex-hd., 3/4" x 1-3/8" (A2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (A2)

1шт.

7

704058R1

PIN

drawbar frame

1шт.

8

3067210R1

CLIP

spring

2шт.

9

704212R91

COTTER PIN

COTTER, implement, cpte.

1шт.

700531R1

NO LONGER SERVICED

COTTER, implement

1шт.

704187R1

LOCKING RING

RING, clip, implement cotter

1шт.

10

3060787R11

PLATE

support, drawbar, cpte.,INGg

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

hex-hd., 3/4" x 1-3/8" (A2)

1шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (A2)

1шт.
