Запчасти Case IH 276 (4-37) - FENDERS (09) - CHASSIS

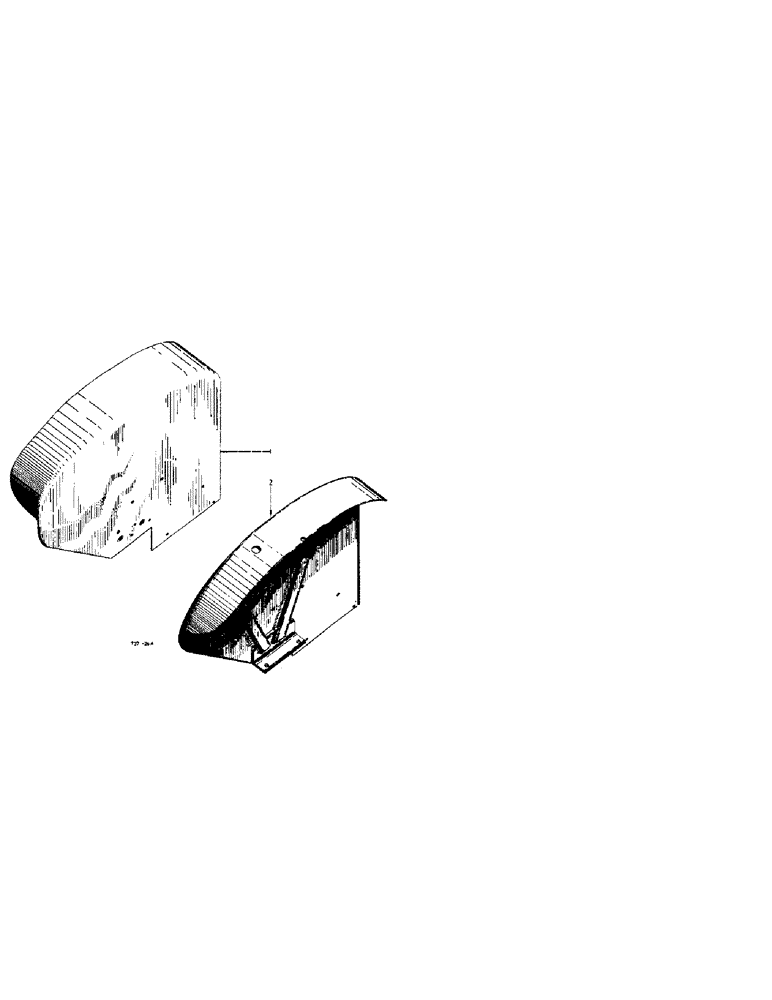

Схема запчастей Case IH 276 - (4-37) - FENDERS (09) - CHASSIS
2
1

Артикул

Название

Примечание

Количество

1

3071650R91

FENDER

w/two RIVET 104112, rear wheel L.H. cpte., (Domestic)

1шт.

1

3071652R91

FENDER, w/two RIVET 104112, rear wheel L.H. cpte., (Export)

1шт.

104112

RIVET,But Hd, 3/8" x 7/8"

solid, button-hd., 3/8"

2шт.

3070582R1

BOLT (SPREADER)

BOLT, T. hd., 5/8" x 2"

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex-hd., 5/8" x 2"

1шт.

102639

NUT,5/8"-11, G5

2шт.

2

3071651R91

FENDER

w/two RIVET 104112, rear wheel R.H. cpte., (Domestic)

1шт.

2

3071653R91

FENDER

w/two RIVET 104112, rear wheel R.H. cpte., (Export)

1шт.

104112

RIVET,But Hd, 3/8" x 7/8"

solid, button-hd., 3/8"

2шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

hex-hd., 5/8" x 2"

2шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

hex-hd., 5/8" x 2"

1шт.

102639

NUT,5/8"-11, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

R.H. Fender to footplate Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

R.H. Fender to Footplate 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (R.H. Fender to footplate) 3/8"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

L.H. Fender to footplate (Domestic only) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

NLS

NO LONGER SERVICED

(L.H. Fender to Footplate - Domestic only) Hex, 3/8"-16 x 1", G5

1шт.

102635

NUT,3/8"-16, G5

L.H. Fender to Footplate - Domestic only 3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (L.H. Fender to footplate - Domestic only) 3/8"

2шт.

Выбрано товаров: 19
