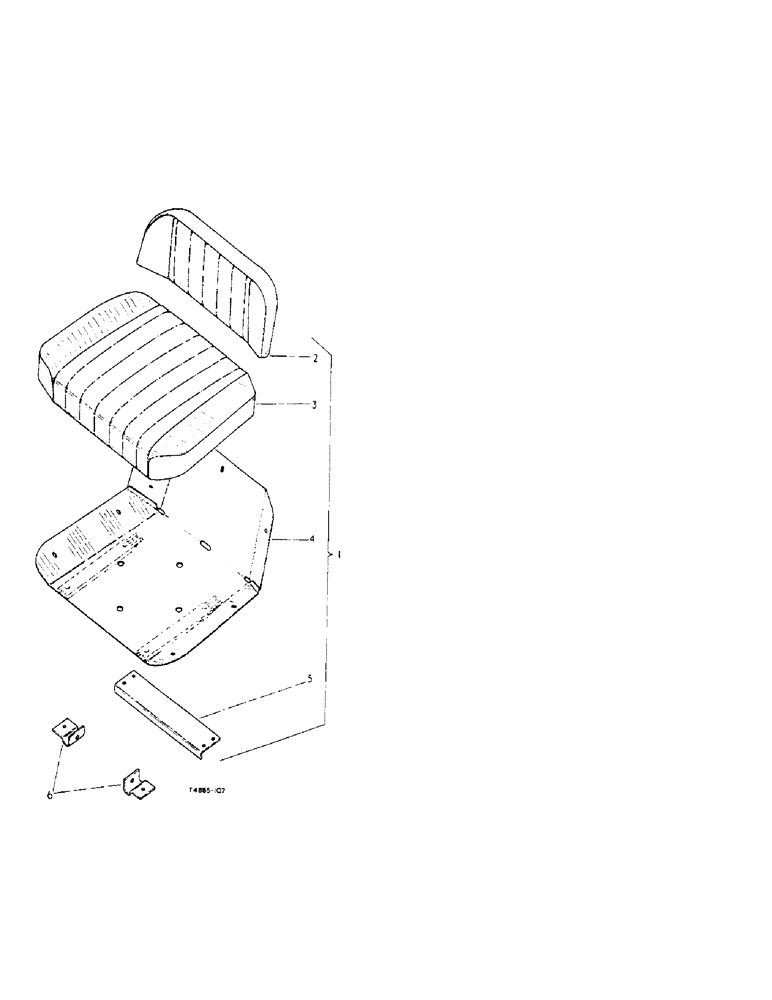

Запчасти Case IH 276 (4-36) - BOSTROM SEAT, PETROL (09) - CHASSIS

1

3064746R91

SEAT, de-luxe, cpte., comprising

1шт.

2

3068213R91

ARMREST

REST, back assy.

1шт.

3

3068212R91

CUSHION

SEAT, plate assy.

1шт.

4

3068211R91

SEAT

PAN, seat assy.

1шт.

5

3071396R1

ANGLE

rear adjuster

1шт.

6

3067850R1

BRACKET, seat

2шт.

3067849R1

RAIL, slide (R.H.)

1шт.

3067848R1

RAIL, slide (L.H.)

1шт.

3070942R1

SPACER

4шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

hex-hd., 1/2" x 1-3/4"

2шт.

3065389R1

NUT, lock, Philidas

2шт.

495-11053

WASHER,1/2", SAE

1шт.
