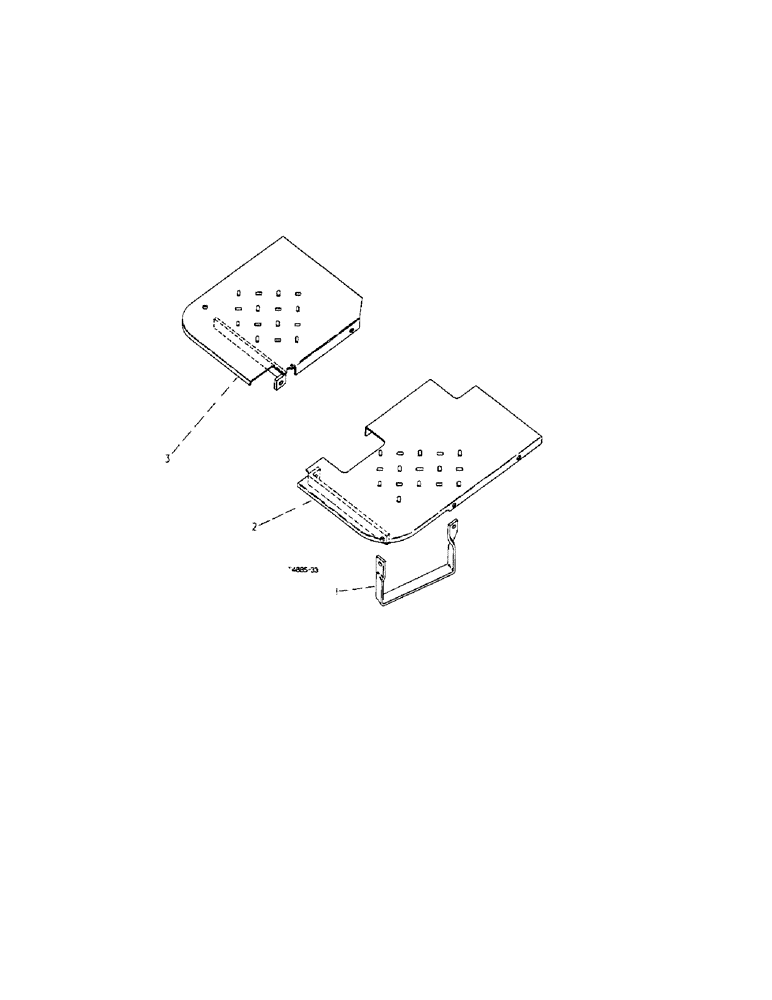

Запчасти Case IH 276 (4-36[1]) - FOOTPLATES (09) - CHASSIS

1

3070589R1

FOOTSTEP, Diesel, domestic only

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

3070585R11

PLATE

FOOTPLATE, cpte., L.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

3070587R21

PLATFORM

FOOTPLATE, cpte., R.H.

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
