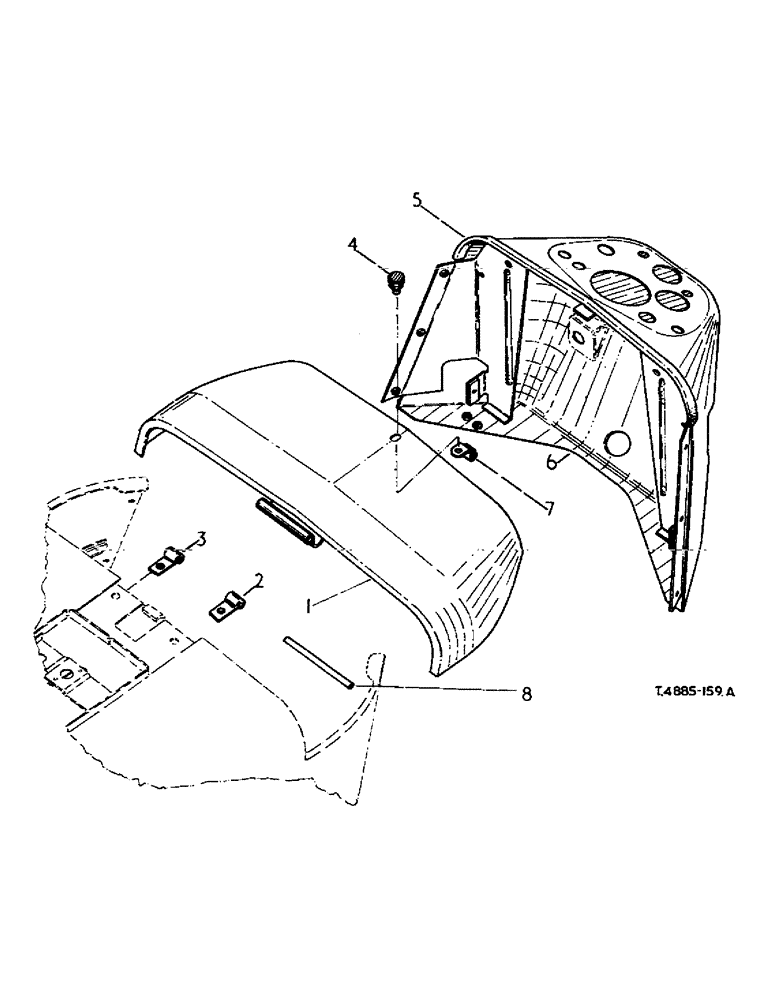

Запчасти Case IH 276 (4-09) - INSTRUMENT SHROUD AND BATTERY COVER (09) - CHASSIS

1

3072840R92

COVER, w/STRIP 3070521R11, STRIP

1шт.

3070522R11 and PIN 3070523R1 cpte.

1шт.

battery

1шт.

2

3070521R11

STRIP, centre piece L.H.

1шт.

3

3070522R11

STRIP, centre piece R.H.

1шт.

4

3072832R1

GRIP

KNOB, battery cover

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16" UNF

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

3071317R1

STRIP, protecting

1шт.

6

3072825R91

SHROUD, w/STRIP 3071317R1 assy.

1шт.

instr.

1шт.

3071178R1

GROMMET, rubber (Petrol only)

1шт.

7

3072833R1

SPRING, battery cover

1шт.

8

3070523R1

PIN, hinge

1шт.
