Запчасти Case IH 276 (4-08) - HOOD AND LID (09) - CHASSIS

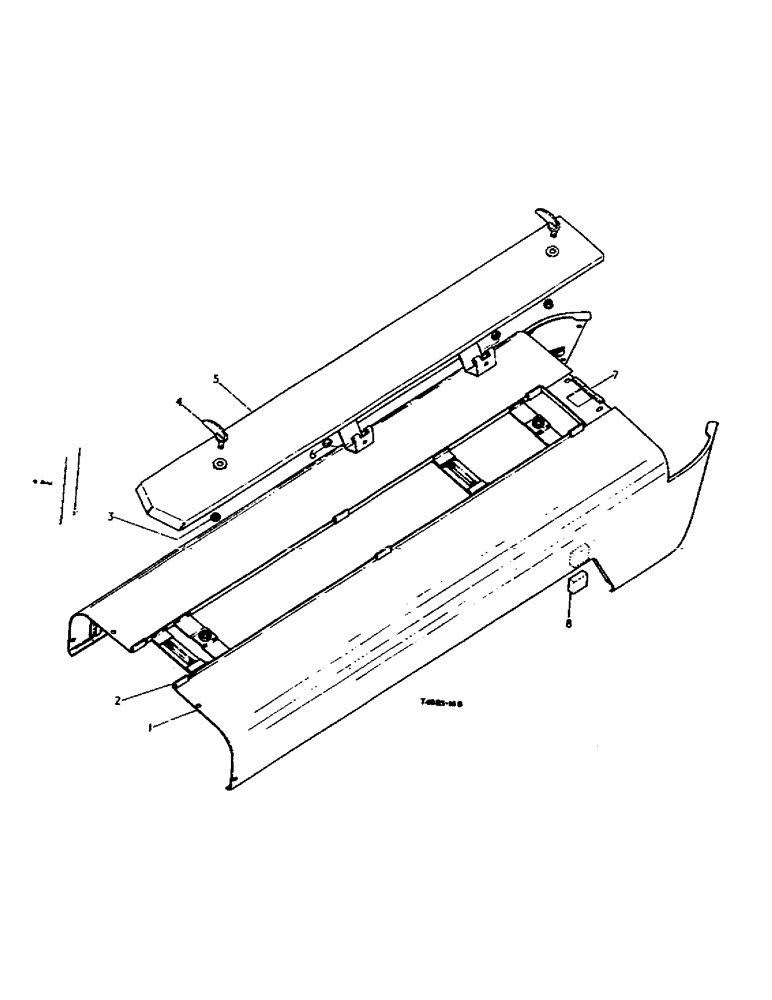

Схема запчастей Case IH 276 - (4-08) - HOOD AND LID (09) - CHASSIS
8
1
5
7
4
3
2

Артикул

Название

Примечание

Количество

1

3071730R92

SHEET

HOOD ASSY.., comprising next 6 items

1шт.

3070342R2

STRIP

BUFFER

6шт.

3071954R1

PAD

2шт.

3070513R2

STRIP

1шт.

3070357R1

SPRING

1шт.

3044095R1

RIVET

2шт.

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

2шт.

2

3070342R2

STRIP

BUFFER, lid retainer

6шт.

3

3047340R1

GROMMET

hood sheer lid

2шт.

894585H1

RETAINER

276D/3007 up, including 276P/ 2001 up

2шт.

4

3107554R1

FASTENER

hood sheet lid, 276D/3007 up, including 279P/2001 up

1шт.

4

3070361R1

FASTENER

hood sheet lid, up to 276D/3007, including 276P/2001 up

1шт.

On orders for Fastener 3070361R1 furnish Fastener 3107557R1 and Retainer 894585H1

1шт.

5

3071731R91

COVER

LID, hood sheet, assy., comprising next 5 items

1шт.

3070363R1

BUMPER

BUFFER

2шт.

3107554R1

FASTENER

2шт.

3047340R1

GROMMET

2шт.

894585H1

RETAINER

2шт.

3070366R1

PIN, hinge

2шт.

137130

PIN

cotter, 1/16" x 7/16"

1шт.

6

3070363R1

BUMPER

BUFFER, lid hinge

2шт.

7

3070513R2

STRIP, battery cover stop

1шт.

8

3071954R1

PAD

radiator

2шт.

3072055R1

BOLT

special

10шт.

3072684R1

WASHER

plain, 9/32" x 5/8"

10шт.

3072055R1

BOLT

hex-hd., 1/4" x 5/8"

6шт.

3072684R1

WASHER

9/32" x 5/8"

6шт.

3044095R1

RIVET, used in Hood assy.

2шт.

3070357R1

SPRING

used in Hood assy.

1шт.

218322

WASHER,0.12" ID x 0.31" OD x 0.03" Thk

used in Hood assy.

2шт.

Выбрано товаров: 30
