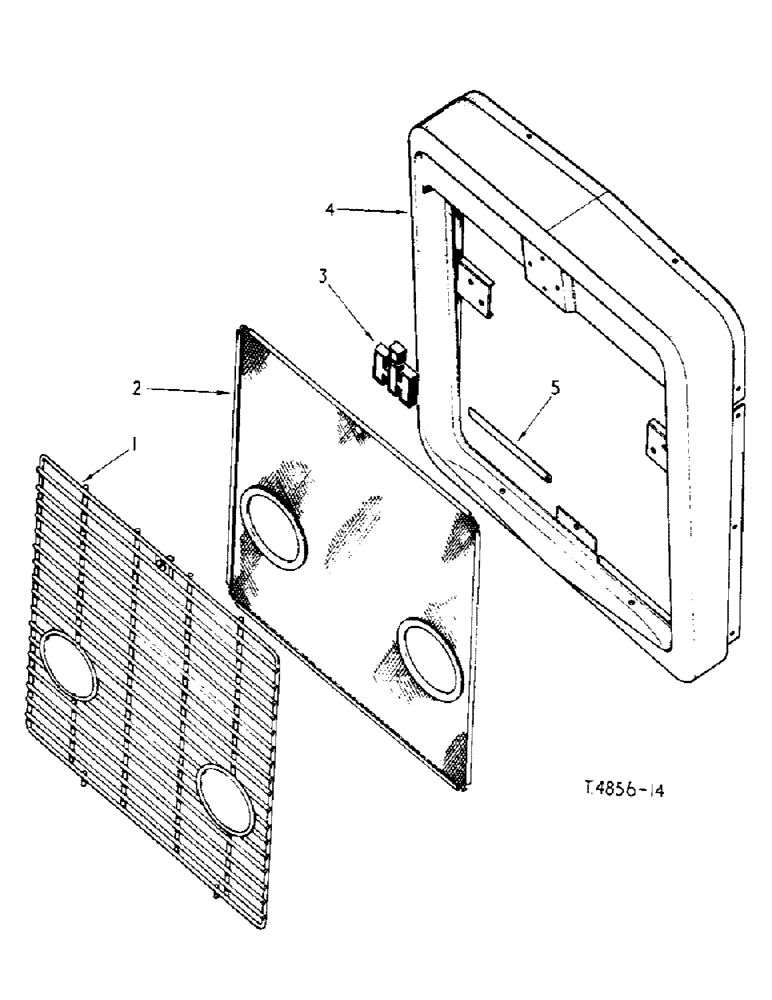

Запчасти Case IH 276 (4-06) - RADIATOR GRILLE, FRAME AND MESH (09) - CHASSIS

1

3073632R91

GRILLE, assy., radiator w/FASTENER 3070511R1 and RING 3070512R1

1шт.

3070511R1

FASTENER

(Dzus)

1шт.

3070512R1

RING

retaining

1шт.

2

3070335R11

GRILLE

MESH, grille, cpte.

1шт.

3

2751846R1

EMBLEM CASE/IH

PLATE, I.H. monogram

1шт.

260-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

pan-hd., sltd., self-tap No. 10 x 5/16"

4шт.

4

3070325R91

FRAME

radiator grille, assy.

1шт.

5

3071315R1

STRIP

cushion

1шт.

3071314R91

FRAME

radiator grille, cpte., w/FRAME 3070325R91 and STRIP 3071315R1

1шт.
