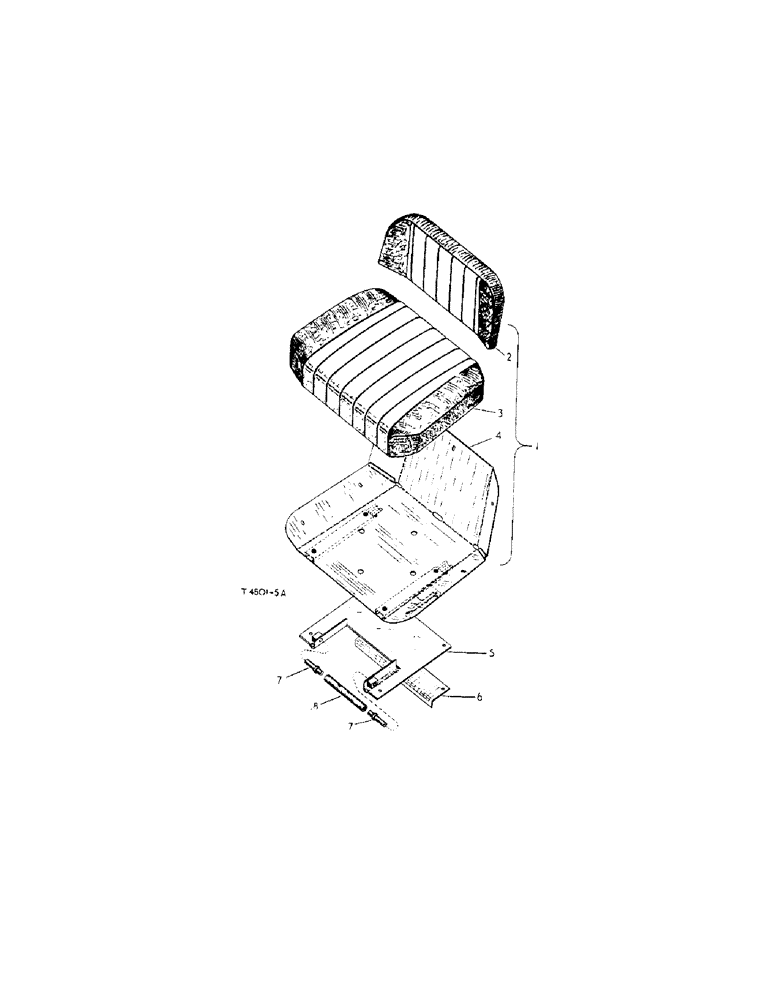

Запчасти Case IH 276 (4-03[1]) - DE-LUXE SEAT, DIESEL (09) - CHASSIS

3109579R91

SEAT

assy., De-luxe, cpte.,,strial

1шт.

1

3069568R91

SEAT

cpte., de-luxe, comprising

1шт.

2

3068213R91

ARMREST

REST, assy., back

1шт.

3

3068212R91

CUSHION

assy., seat

1шт.

4

3068211R91

SEAT

PAN, assy., seat

1шт.

3070940R1

SLIDE

RAIL, L.H. slide

1шт.

3070941R1

SLIDE

RAIL, R.H. slide

1шт.

3070942R1

SPACER

4шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

1шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

5

3069579R11

PLATFORM

cpte., seat

1шт.

6

3071396R1

ANGLE

SUPPORT, rear platform

1шт.

7

3069619R1

PIN

rear pivot

2шт.

8

3069620R1

RETAINER

pivot pin

1шт.
