(5-35) - AUXILIARY VALVE, PRESSURE PIPES, AUXILIARY VALVE ATTACHMENTS

Запчасти Case IH 276 (5-35) - AUXILIARY VALVE, PRESSURE PIPES, AUXILIARY VALVE ATTACHMENTS (08) - HYDRAULICS

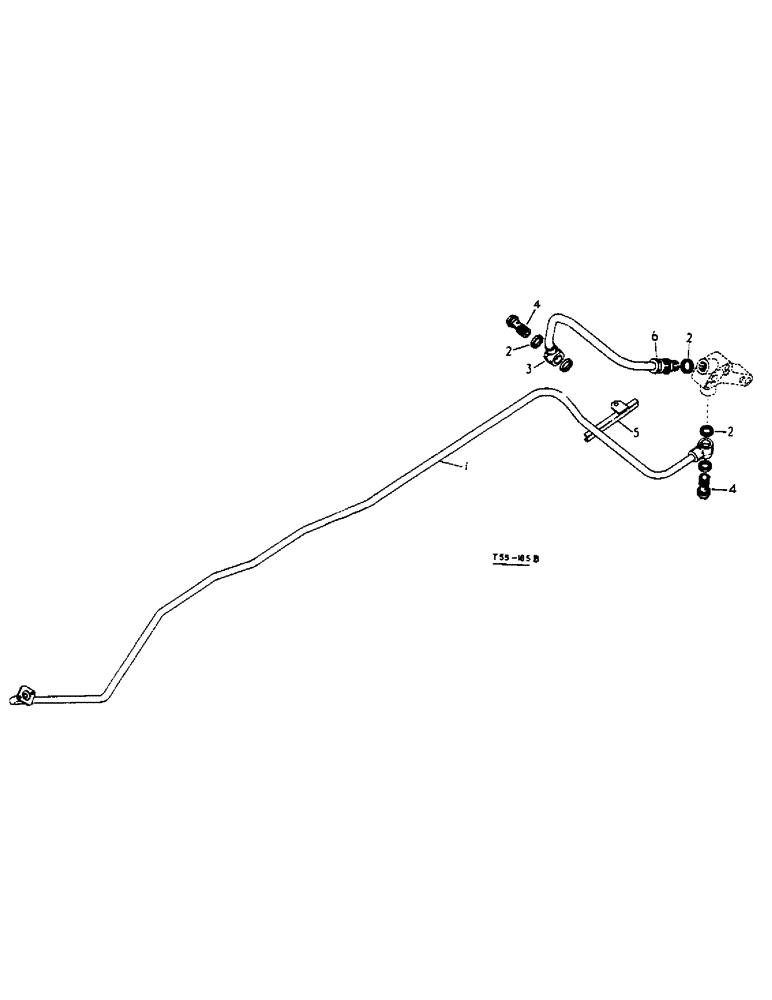

Схема запчастей Case IH 276 - (5-35) - AUXILIARY VALVE, PRESSURE PIPES, AUXILIARY VALVE ATTACHMENTS (08) - HYDRAULICS
5
2
4
2
6
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

3069028R11

PIPE

assy., pressure

1шт.

2

704337R1

SEALING WASHER

WASHER, Dowty

5шт.

3

3069024R11

PIPE

assy., pressure (adaptor block to main valve)

1шт.

4

3069026R1

BOLT,1/2" BSP x 2"

banjo

2шт.

5

3069030R11

ROD

CONDUIT, cpte., cable front

1шт.

6

3069027R91

COUPLING, BREAK AWAY

COUPLING, 1/2" BSP, steel

1шт.
