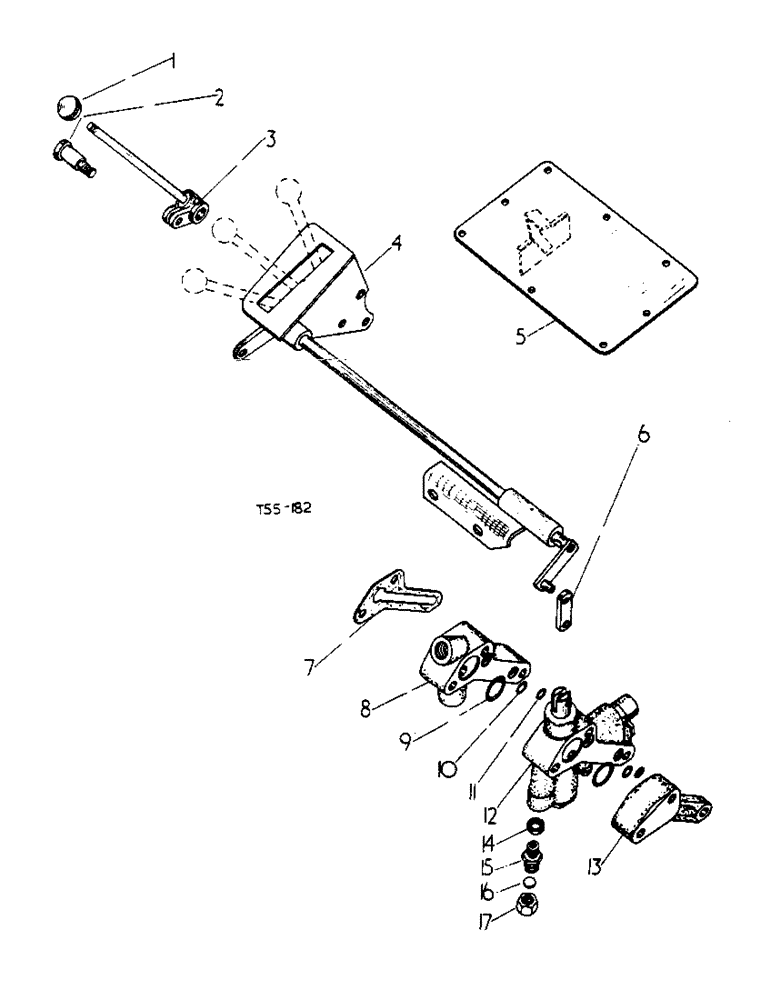

Запчасти Case IH 276 (5-29) - AUXILIARY VALVE ATTACHMENTS WITH ONE S.A. OR ONE D.A. VALVE (08) - HYDRAULICS

, Serial Range: KEY-UNITS

1шт.

3069001R91

ATTACHMENT, Single Acting Ind. Aux. Valve (Domestic) (A)

1шт.

3069002R91

ATTACHMANT, Single Acting Ind. Aux. Valve (Export) (B)

1шт.

3069003R91

ATTACHMENT, Double Acting Aux. Valve (Domestic) (C)

1шт.

3069004R91

1шт.

ATTACHMENT, Double Acting Aux. Valve (Export) (D) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

371602R1

KNOB

1шт.

2

3067252R1

SPINDLE, control lever (A.C.)

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8" x 1-1/8" hex-hd., (A2.C2)

1шт.

120377

NUT,3/8" - 16, Gr 5

(A.C.) 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (A3.C3) 3/8"

1шт.

3

3061041R11

LEVER

cpte., R.H. control

1шт.

3066427R1

PIN

5/16" x 7/8" std-hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

4

3069015R91

SHAFT, assy., cross (A.C.)

1шт.

4

3069016R91

SHAFT

assy., cross (B.D.)

1шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1/2" x 3-3/4" hex-hd.

2шт.

102685

NUT, 3/8" hex., (B.D.)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B.D.) 3/8"

1шт.

Q1505

WASHER

13/32" x 1" x 16 ga. plain (B.D.)

1шт.

5

3044366R12

PLATE

top cover welded assy.

1шт.

6

3061040R1

LINK

connecting

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, std-hd. 5/16" x 1"

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

7

3061055R2

GASKET

1шт.

8

3069023R1

BLOCK

adaptor

1шт.

9

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING, 1" x 1-1/4" x 1/8"

2шт.

3110297R1

RETAINER

"O" ring

2шт.

10

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, 7/16" x 5/8" x 3/32"

2шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

"O" RING, 3/8" x 9/16" x 3/32"

2шт.

12

3069019R92

LOCK VALVE

VALVE, single acting Ind. Aux. (A.B.)

1шт.

12

3069020R92

CONTROL VALVE

VALVE, double acting Aux. (C.D.)

1шт.

13

3069021R1

PLATE

valve cover

1шт.

183289

BOLT, 3/8" x 5" hex-hd., (C2.D2)

1шт.

433114

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8" x 4-1/4" hex-hd., (C.D.)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (C3.D3) 3/8"

1шт.

189306

COVER,Hex, 3/8" - 16 x 5", Gr 5

3/8" x 5" hex-hd., (A2.B2.) cad. or zinc-pltd.

1шт.

433115

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 5

3/8" x 4-1/4" hex-hd., (A.B.) cad. or zinc-pltd.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (A3.B3) 3/8"

1шт.

14

704743R91

SEALING WASHER

WASHER, Dowty (A.B.)

1шт.

15

702270R2

ADAPTER

ADAPTOR, hose (A.B.)

1шт.

16

703619R1

GASKET

blanking off nut (A.B.)

1шт.

17

703618R1

NUT

blanking off (A.B.) PRESSURE PIPES (see detail list)

1шт.

3110307R91

O-RING

PACKAGE, "O" ring service, comprising

1шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING

1шт.

3110297R1

RETAINER

1шт.
