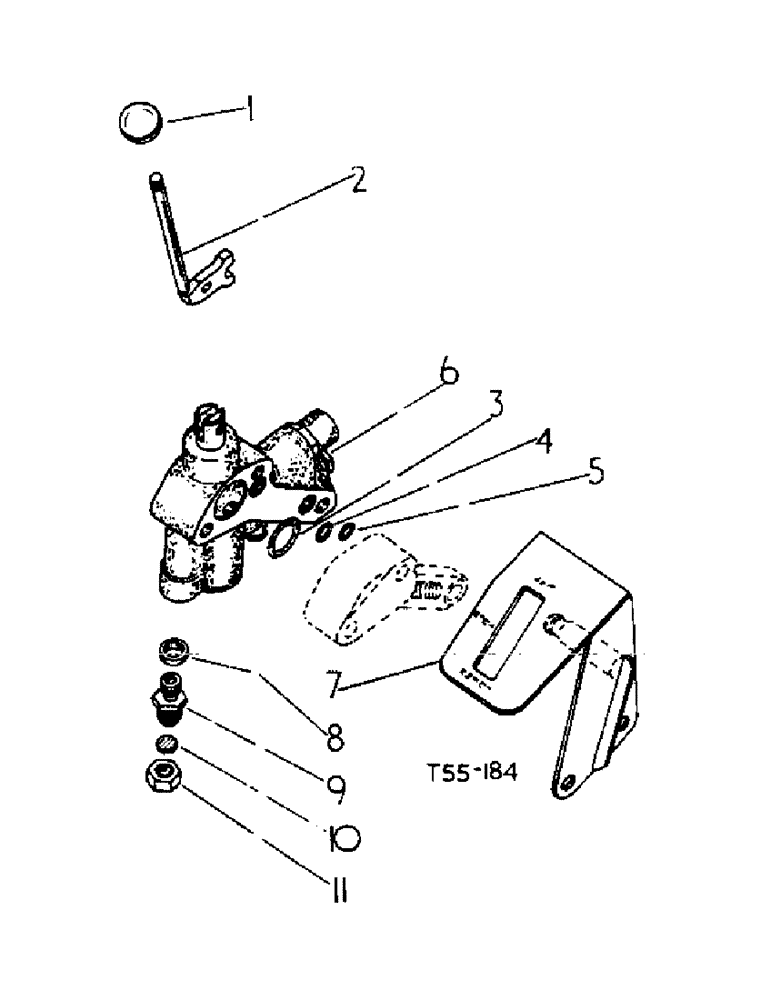

Запчасти Case IH 276 (5-28) - AUXILIARY VALVE ATTACHMENTS, WHEN ONE AUXILARY VALVE ALREADY FITTED (08) - HYDRAULICS

, Serial Range: KEY-UNITS

1шт.

3069011R91

ATTACHMENT, Single Acting Ind. Aux.

1шт.

Valve (Domestic) (A)

1шт.

3069012R91

ATTACHMENT, Single Acting Ind. Aux.

1шт.

VALVE (Export) (B)

1шт.

3069013R91

ATTACHMENT, Double Acting Aux.

1шт.

Valve (Domestic) (C)

1шт.

3069014R91

ATTACHMENT, Double Acting Aux.

1шт.

Valve (Export) (D)

1шт.

Units. Letters of these units

1шт.

correspond with those following the

1шт.

description of the parts in the

1шт.

list below and identifies the unit

1шт.

for which the part is used. Items

1шт.

without letters after the

1шт.

description indicates the part is

1шт.

used for all units.

1шт.

1

371602R1

KNOB

1шт.

2

3061061R91

LEVER

ARM and LEVER, assy., L.H.

1шт.

3063983R1

HEADED PIN,5/16" x 1"

PIN, 5/16" dia. x 1", std-hd.

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

"O" RING, 1" x 1-1/4" x 1/8"

1шт.

4

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, 7/16" x 5/8" x 3/32"

1шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

"O" RING, 3/8" x 9/16" x 3/32"

1шт.

6

3069019R92

LOCK VALVE

VALVE, Single Acting Ind. Aux.

1шт.

(A.B.)

1шт.

6

3069020R92

CONTROL VALVE

VALVE, Double Acting Aux. (C.D.)

1шт.

7

3069017R91

BRACKET

and Control lever pivot

1шт.

assy., (A.C.)

1шт.

7

3069018R91

LEVER

BRACKET, and Control lever pivot

1шт.

assy., (B.D.)

1шт.

20507R1

BOLT,Hex, 3/8" - 16 x 6 3/4", Gr 5

3/8" x 6-3/4" hex-hd.

1шт.

(B2.D2.)

1шт.

186290

BOLT (SPREADER)

BOLT, 3/8" x 6" hex-hd., (B.D.)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (B3.D3) 3/8"

1шт.

20506R1

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3/8" x 6-3/4" hex-hd.

1шт.

(A.C.) cad. or zinc pltd.

1шт.

20508R1

BOLT

3/8" x 6" hex-hd., (A2.C2.)

1шт.

cad. or zinc. pltd.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (A3.C3.) coa. 3/8"

1шт.

or zinc pltd.

1шт.

8

704743R91

SEALING WASHER

WASHER, Dowty (A.B.)

1шт.

9

702270R2

ADAPTER

ADAPTOR, hose (A.B.)

1шт.

10

703619R1

GASKET

blanking off nut (A.B.)

1шт.

11

703618R1

NUT

blanking off (A.B.)

1шт.
