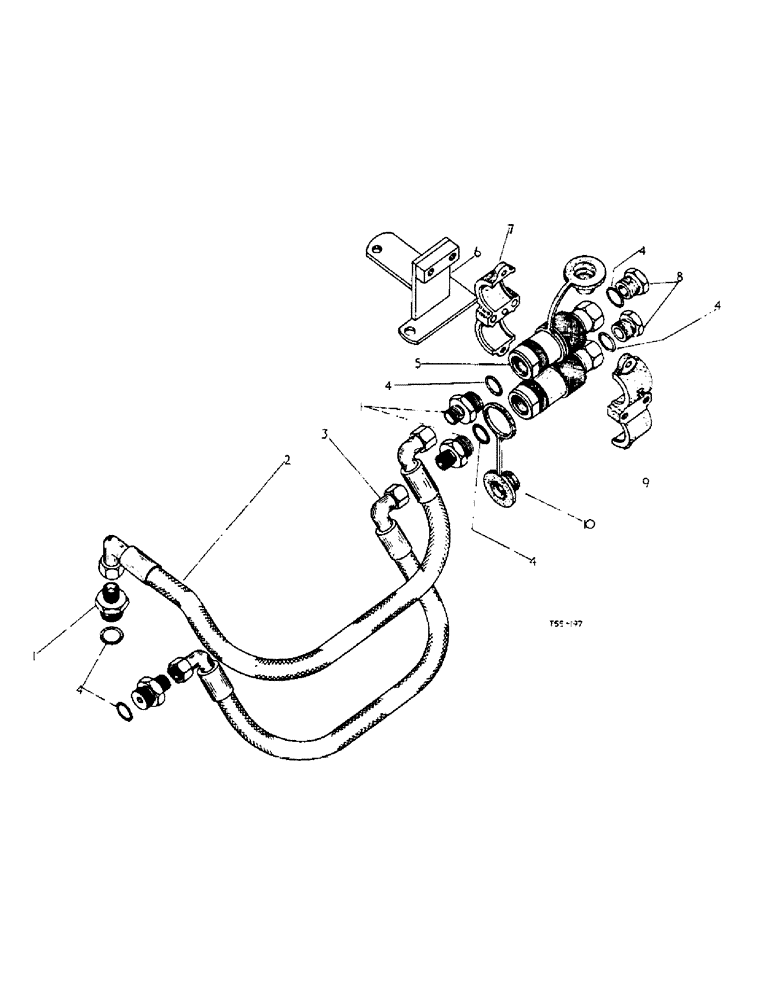

Запчасти Case IH 276 (5-25) - SELF SEALING COUPLING ATTACHMENT, DOUBLE ACTING, BREAKAWAY (08) - HYDRAULICS

3069764R91

ATTACHMENT, breakaway, self sealing

1шт.

Fitted to tractors with double acting Independent Auxiliary Valve attachment

1шт.

1

3060799R2

ADAPTER

ADAPTOR, hose

4шт.

2

3069765R91

HOSE

flexible

1шт.

3

3062508R91

HOSE

flexible

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, 3/4" x 15/16" x 3/32"

6шт.

5

3067991R91

BREAKER POINTS

COUPLING, cpte., breakaway

2шт.

3067993R91

COUPLING, BREAK AWAY

1шт.

3067992R91

COUPLING, BREAK AWAY

1шт.

6

3065078R11

SUPPORT

PLATE, assy., coulping support

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16" x 1-1/2" hex-hd.

2шт.

NLS

NO LONGER SERVICED

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

371114R1

CLAMP

FRAME

1шт.

8

9410360

PLUG

5/8" blanking

2шт.

9

371115R1

CLAMP

1шт.

19

373220R1

PLUG

SEAL, dust

2шт.
