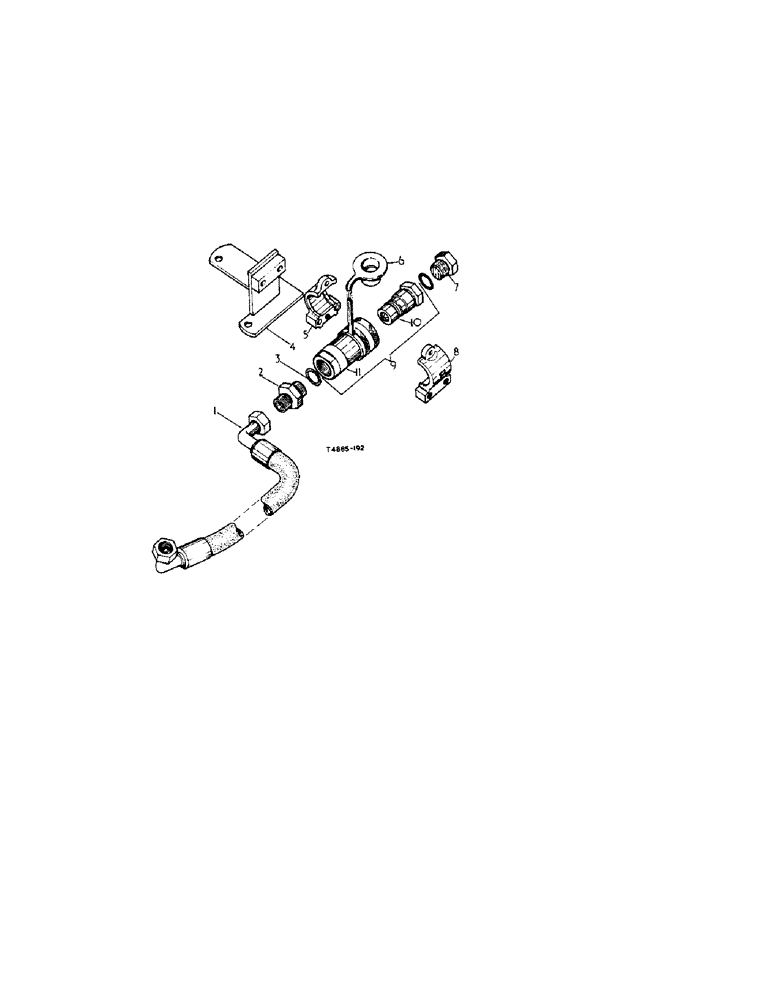

Запчасти Case IH 276 (5-24) - SELF SEALING COUPLING ATTACHMENT, SINGLE BREAKWAY (08) - HYDRAULICS

3063992R92

ATTACHMENT, self sealing coupling

1шт.

1

3063993R91

HOSE

flexible

1шт.

2

3060799R2

ADAPTER

ADAPTOR, hose

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING, 3/4" x 15/16" x 3/32"

2шт.

4

3065078R11

SUPPORT

PLATE, assy., coupling support

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

hex-hd., 5/16" x 2"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

3063989R1

CLAMP

FRAME

1шт.

6

373220R1

PLUG

SEAL, dust

1шт.

7

9410360

PLUG

blanking, 5/8"

1шт.

8

3063988R1

CLAMP

1шт.

9

3067991R91

BREAKER POINTS

COUPLING, breakaway cpte.,le-halflf

1шт.

10

3067992R91

COUPLING, BREAK AWAY

COUPLING, breakaway - male-halflf

1шт.

11

3067993R91

COUPLING, BREAK AWAY

COUPLING, breakaway - female-half

1шт.
