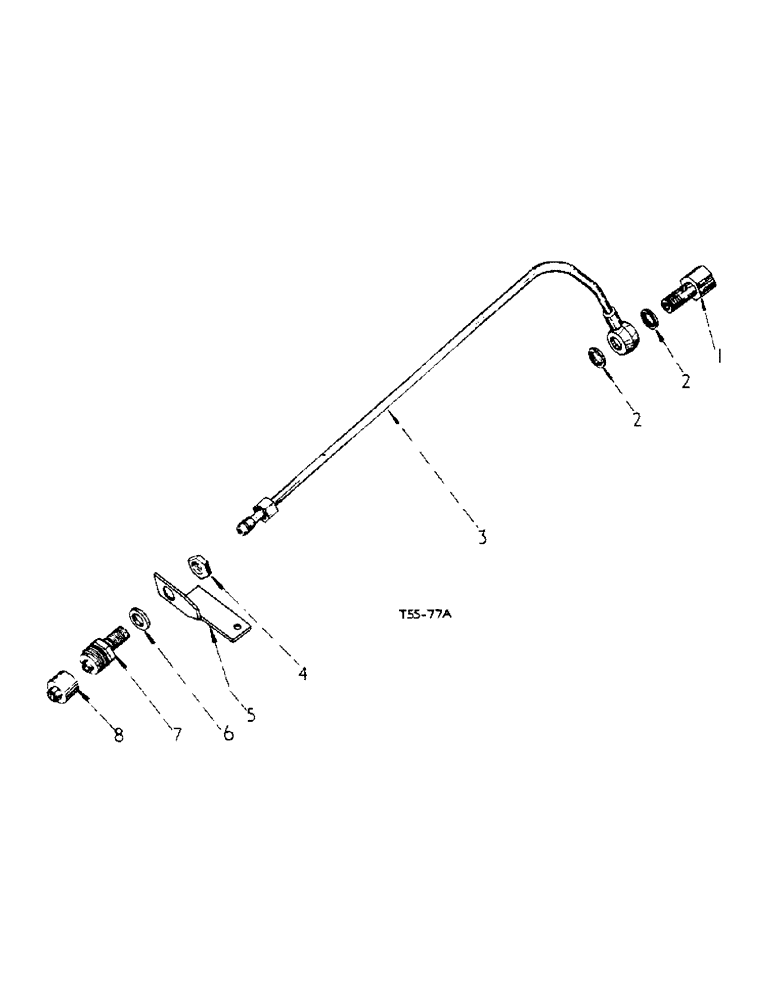

Запчасти Case IH 276 (5-21) - SELF SEALING COUPLING ATTACHMENT (08) - HYDRAULICS

3048413R92

COUPLING

ATTACHMENT, self sealing coupling

1шт.

Can only be used when tractor is fitted with Hydraulic Lift Attachment, Vary Touch

1шт.

1

705512R1

BOLT,1/2"-14 x 1 5/8"

self sealing coupling

1шт.

2

704337R1

SEALING WASHER

WASHER, Dowty, 1/2" BSP

2шт.

3

3048414R91

PIPE

assy., self sealing coupling

1шт.

4

752286R1

NUT

lock, 1/2" BSP

1шт.

5

3065076R11

SUPPORT

BRACKET, self sealing coupling

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

6

551658R1

WASHER

plain, 25/32" x 1-1/4" x 22, to be used as required

1шт.

6

Q3501

WASHER

plain, 25/32" x 1-1/4" x 16, to be used as required

1шт.

6

575813R1

WASHER

plain, 25/32" x 1-1/4" 11 Ga., to be used as required

1шт.

7

3041962R91

COUPLING, BREAK AWAY

COUPLING, self sealing, male half,e

1шт.

3045135R1

RING

"O" RING

1шт.

3045134R1

SLEEVE, sub. assy.

1шт.

3045136R1

SLEEVE

tubular

1шт.

3045137R1

SPRING

1шт.

7

705579R91

COUPLING

self sealing (Dowty) male

1шт.

3045140R1

RING

"O" RING

1шт.

3045138R1

SPRING, locking

1шт.

3045139R1

SPRING, valve (male half)

1шт.

3045141R1

VALVE

1шт.

3045142R91

SLEEVE

assy., valve

1шт.

705578R1

CYLINDER END CAP

CAP, coupling, dust (opt.)

1шт.

3041963R1

CAP

dust (opt.)

1шт.
