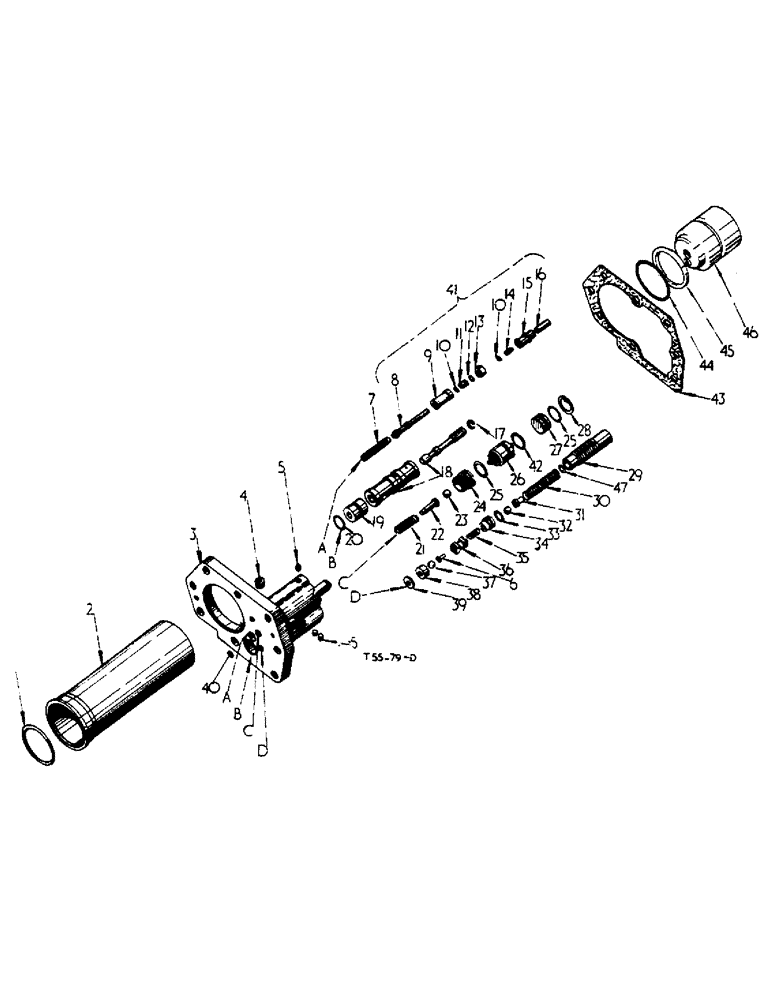

Запчасти Case IH 276 (5-19) - VALVE BODY CONTROL VALVE (08) - HYDRAULICS

1

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

"O" RING, cyl., 2-5/8" x 3" x 3/16"

1шт.

2

3044434R1

SLEEVE

CYLINDER, hydraulic lift

1шт.

3

3044426R1

BODY

valve

1шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

444697

PLUG,Hex Soc, 3/8"-18

3/8" NPT

1шт.

5

444687

PLUG,Hex Soc, 1/8"-27

3шт.

6

3063495R1

SEAT

RIDER, ball

1шт.

7

41608D

SPRING

spool

1шт.

8

SPOOL lowering, order 3049142R93

1шт.

9

SPOOL lowering, order 3049142R93

1шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

"O" RING, 1/4" x 3/8" x 1/16"

2шт.

11

GLAND lowering spool, order 3049142R93

1шт.

12

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

"O" RING, 5/16" x 7/16" x 1/16"xto6

1шт.

13

PLUG lowering sleeve, order 3049142R93

1шт.

14

3045610R1

SPRING

plunger

1шт.

15

SLEEVE lowering spool, order 3049142R93

1шт.

16

PLUNGER lowering spool, order 3049142R93

1шт.

17

3040910R1

RETAINER

CIRCLIP, internal 1/2" bore

1шт.

18

3049088R91

SPOOL

and SLEEVE, w/CIRCLIP16" xto6

1шт.

19

3040809R1

PLUG

main sleeve

1шт.

20

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

"O" RING, valve sleeve, 13/16" xto6

1шт.

21

352026R2

SPRING

flow control valve ball

1шт.

22

352084R2

RIDER, flow control valve ball

1шт.

23

3072912R1

BALL

flow control valve

1шт.

24

751562R1

SEAT

flow control valve

1шт.

25

704378R1

O-RING,0.139" Thk x 0.85" ID

"O" RING

2шт.

26

751563R91

PISTON

valve cpte.

1шт.

27

751566R1

PLUG

valve piston

1шт.

28

751567R1

RETAINER

CIRCLIP, internal, 103/16" bore

1шт.

29

3108947R2

HOUSING

relief valve spring 276D/4896 up, including 276P/2102 up and 276I/2009 up

1шт.

29

751558R2

HOUSING

relief valve spring, up to 276D/4895, order 3108946R3 together with 3108947R2

1шт.

30

751557R1

SPRING

relief valve

1шт.

31

3108946R3

SEAT

RIDER, relief valve ball 276D/4896 up, Including 276P/2102 up and 276I/2009 up

1шт.

31

751556R2

SEAT

RIDER, relief valve ball, up to 276D/4895, order 3108946R3 together with 3108947R2

1шт.

32

3072883R1

BALL,3/8" Dia

relief valve

1шт.

33

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O" RING, valve seat, 9/16" x 3/4"6

1шт.

34

751554R1

SEAT

relief valve

1шт.

35

3074227R1

SPRING

non-return valve

1шт.

36

751555R2

SLEEVE

non-return valve

1шт.

37

3072883R1

BALL,3/8" Dia

non-return valve

1шт.

38

751559R2

SEAT

non-return valve

1шт.

39

751560R1

COPPER WASHER

copper, 9/32" x 23/32" x 16

1шт.

40

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

"O" RING, flow control valve bore,x

1шт.

41

3049142R93

SPOOL

lowering, assy., comprising

1шт.

NSS

NOT SOLD SEPARAT

GLAND

1шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

"O" RING

1шт.

706584R1

GASKET

"O" RING

2шт.

NSS

NOT SOLD SEPARAT

PLUG

1шт.

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3045610R1

SPRING

1шт.

42

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

"O" RING, valve piston

1шт.

43

3044437R2

GASKET

valve body

1шт.

44

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

"O" RING, 2-5/8" x 3/16"

1шт.

45

3072018R1

WASHER

back-up

1шт.

46

3044376R92

PISTON

assy., comprising

1шт.

3072882R1

BALL,3/32" Dia

chrome steel, .p x 3/32" Dia

1шт.

707747R1

SCRAPER RING

"O" RING, relief valve

1шт.

707745R1

PLUG

relief valve

1шт.

3044377R4

PISTON

1шт.

707746R2

SEAT

RIDER, ball

1шт.

57561D

VALVE SPRING

SPRING, vlave

1шт.

47

3110027R1

SHIM

steel 276D/4896 up, Including 276P/2102 up and 276I/2009 up

1шт.

3047842R1

RETAINER

CIRCLIP, piston oil seal usedclip x

1шт.

3044379R1

RETAINER

oil seal, used with Circlip grooved piston

1шт.

On orders for 3044379R1 furnish 3044376R92 together with O-ring 381871R1 and Washer 307201R1

1шт.

3044378R1

SEAL

OIL SEAL, piston used w/Circlipl, x

1шт.

3063656R93

VALVE

1шт.

3072883R1

BALL,3/8" Dia

2шт.

3108947R2

HOUSING

1шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O" RING

1шт.

3063495R1

SEAT

RIDER

1шт.

3108946R3

SEAT

RIDER

1шт.

751554R1

SEAT

1шт.

751559R2

SEAT

1шт.

751557R1

SPRING

1шт.

3074227R1

SPRING

1шт.

751555R2

SLEEVE

1шт.

751560R1

COPPER WASHER

1шт.

3110027R1

SHIM

5шт.

3063659R91

REPAIR KIT

PACKAGE, service, lowering spool, x

1шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING

1шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

"O" RING

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING

1шт.

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

"O" RING

1шт.

3063657R91

SPOOL

1шт.

41058DA

SPRING

1шт.

3067990R91

KIT

1шт.

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

"O" RING

1шт.

704753R1

GASKET,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

"O" RING

2шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

"O" RING

2шт.

706584R1

GASKET

"O" RING

4шт.

704378R1

O-RING,0.139" Thk x 0.85" ID

"O" RING

2шт.

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

"O" RING

2шт.

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O" RING

2шт.

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING

2шт.

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

"O" RING

2шт.

3067284R1

GASKET

"O" RING

1шт.

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

"O" RING

1шт.
