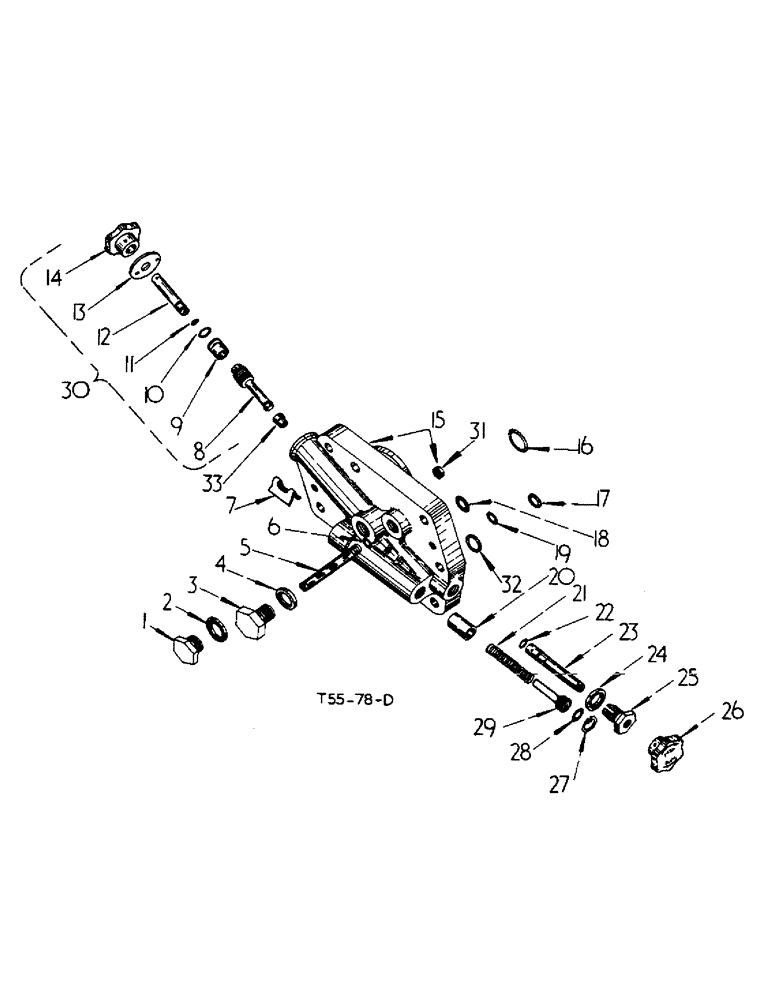

Запчасти Case IH 276 (5-17) - CYLINDER HEAD, CONTROL VALVE (08) - HYDRAULICS

3069236R94

LOCK VALVE

VALVE, control draft (Vary Touch)

1шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

hex-hd., 1/2" x 2-1/4" , CONTROL VALVE

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex-hd., 1/2" x 2-1/2" , CONTROL VALVE

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Control valve 1/2"

7шт.

704743R91

SEALING WASHER

WASHER, Dowty, 1/4" B.S.P.6R16" x , CONTROL VALVE

1шт.

1

706027R1

PLUG

1/2" BSP (Auxiliary Tapping)

1шт.

2

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

3

751580R3

BOLT,5/8" - 18 x 5/8"

needle valve cover

1шт.

4

3045118R1

SEAL

WASHER, Dowty

1шт.

5

3071686R91

ORIFICE

assy. (opt.)

1шт.

5

3047294R95

FILTER

ORIFICE, assy. (opt.)

1шт.

6

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

"O" RING, 1/4" x 3/8" x 1/16"

1шт.

7

3045190R2

SPACER

1шт.

8

3045102R2

VALVE

isolator

1шт.

9

3045106R1

BUSHING

BUSH, isolator valve

1шт.

10

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

"O" RING, 15/32" x 21/32"

1шт.

11

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

"O" RING, 7/32" x 11/32" (class 1)

1шт.

12

3045107R1

SHAFT

isolator valve knob

1шт.

443137

AXLE PIN

PIN, groove, 5/32" x 1/2"

1шт.

13

3045104R1

PLATE

stop

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

3045113R1

KNOB

isolator valve

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

15

3069235R91

CYLINDER

HEAD, w/PLUG and SEAT 3067146R16" x

1шт.

16

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING, pressure outlet, 11/16" x

1шт.

17

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

"O" RING, 9/16" x 3/4" x 3/32"

1шт.

18

706584R1

GASKET

"O" RING, 1/4" x 3/4" (Angus)

1шт.

19

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, pressure, inlet, 7/16" x2

1шт.

20

3045105R1

PISTON

speed control

1шт.

21

3045111R1

SPRING

speed control piston

1шт.

22

379366R1

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

"O" RING, 5/16" x 7/16" x 1/16"x 22

1шт.

23

SPOOL, speed control, order SPOOL 3045103R11

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, , Rail 3/16" x 1/2", Slotted

1шт.

24

3045118R1

SEAL

WASHER, Dowty

1шт.

25

LATCH, spool, order SPOOL 3045103R11

1шт.

26

3045112R1

KNOB

speed control

1шт.

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

27

3047246R1

RETAINER

CIRCLIP (for 11/16" dia. bore)

1шт.

28

3067183R1

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

"O" RING, 7/16" x 5/8" x 3/32"

1шт.

29

3108188R1

PLUG

assy.

1шт.

3045103R11

SPOOL

speed control, comprising

1шт.

3045112R1

KNOB

1шт.

17136R1

LOCK PIN,3/16" x 1/2", Slotted

PIN, 3/16" x 1/2", Slotted

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

30

3045102R21

VALVE

assy., isolator, comprising

1шт.

3045106R1

BUSHING

BUSH

1шт.

3045113R1

KNOB

1шт.

23524R1

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

"O" RING

1шт.

3045116R1

O-RING,0.103" Thk x 0.469" ID, Cl 6

"O" RING

1шт.

443137

AXLE PIN

PIN

1шт.

142494

GUIDE

Pin, Grooved, 5/32" x 7/8", Type A

1шт.

3045104R1

PLATE

1шт.

3045107R1

SHAFT

1шт.

3045102R1

VALVE

1шт.

31

NOT SERVICED

1шт.

32

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

"O" RING, 9/16" x 3/4" x 3/32" x 22

1шт.

33

3067146R1

SEAT

isolator valve

1шт.
