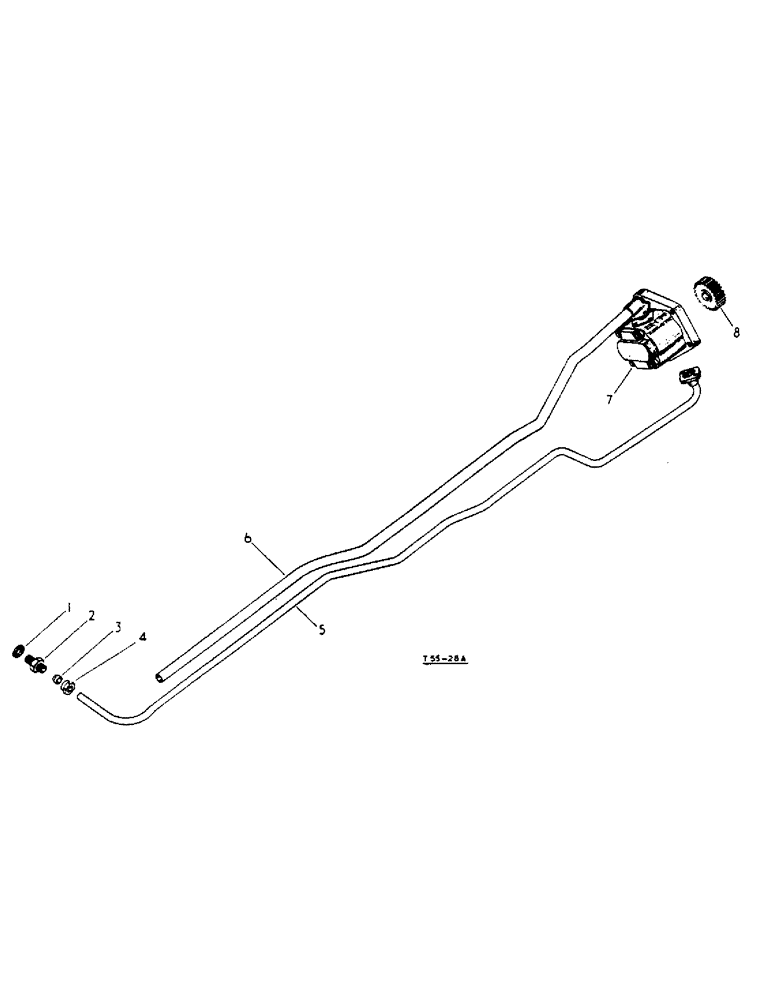

Запчасти Case IH 276 (5-16) - PUMP, SUCTION AND PRESSURE PIPES, HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (08) - HYDRAULICS

1

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

2

704336R1

COUPLING, BREAK AWAY

COUPLING, male, parallel, 1/2" x 1/2" BSP

1шт.

3

705519R1

RING

sealing

1шт.

4

705520R1

NUT,0.69" Length

1шт.

5

3045509R21

PIPE

cpte., pressure

1шт.

6

3045508R21

PIPE

cpte., suction

1шт.

7

PUMP, cpte., hydraulic (see detail list)

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

3шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

8

704331R1

GEAR

PINION, hydraulic pump

1шт.

706405R1

CLAMP

hydraulic pipe

2шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

103084

NUT, hex., 1/4"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
