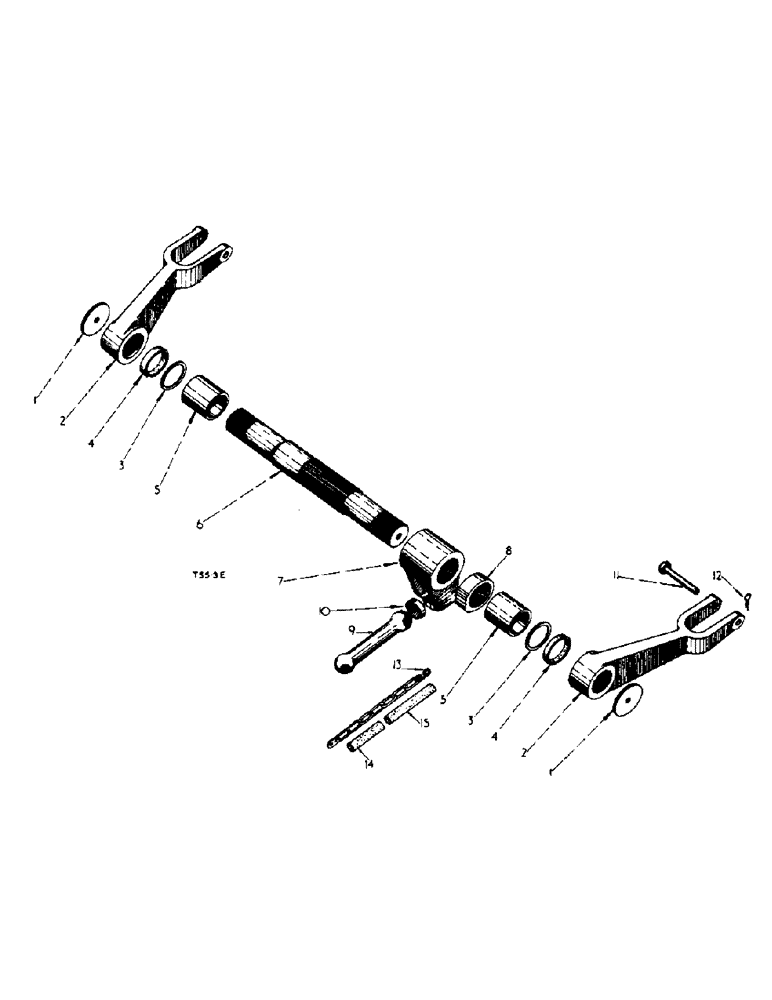

Запчасти Case IH 276 (5-15) - HYDRAULIC LIFT, ARMS, HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (08) - HYDRAULICS

1

708922R1

PLATE, lift arm, retaining

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

3044375R1

ARM

lift

2шт.

3

3044372R1

WASHER

rockshaft

2шт.

4

3109496R91

SEAL

OIL SEAL, rockshaft (opt.)

2шт.

4

708920R92

RETAINER

OIL SEAL, rockshaft (opt.)

2шт.

4

3071148R91

OIL SEAL,55.12mm ID x 73.28mm OD x 12.7mm Thk

OIL SEAL, rockshaft (opt.)

2шт.

4

3109497R91

SEAL

OIL SEAL, rockshaft (opt.)

2шт.

5

3044371R1

BUSHING

BUSH, rockshaft

2шт.

6

3044370R1

SHAFT

ROCKSHAFT

1шт.

7

3044373R1

ARM

rocker

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

hex-hd., 3/8" UNF x 1"

1шт.

8

3048403R1

CAM

rockshaft

1шт.

9

708924R1

ROD

connecting

1шт.

M79594

PIN,5/16" x 3 1/4"

std-hd., 5/16" x 3-1/4"

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

10

3046977R1

BUSHING

BUSH, connection rod

1шт.

11

3044309R1

PIN

std-hd., (5/8" dia. x 3-3/8")

2шт.

12

720631R1

LINCH PIN

PIN, cotter

2шт.

13

3070768R91

CHAIN

safety, cpte.

1шт.

14

395829R1

PIPE

HOSE, safety chain (short)

1шт.

15

395830R2

HOSE,0.50" ID x 5.00"

Safety Chain, Long 0.50" ID x 5.00"

1шт.
