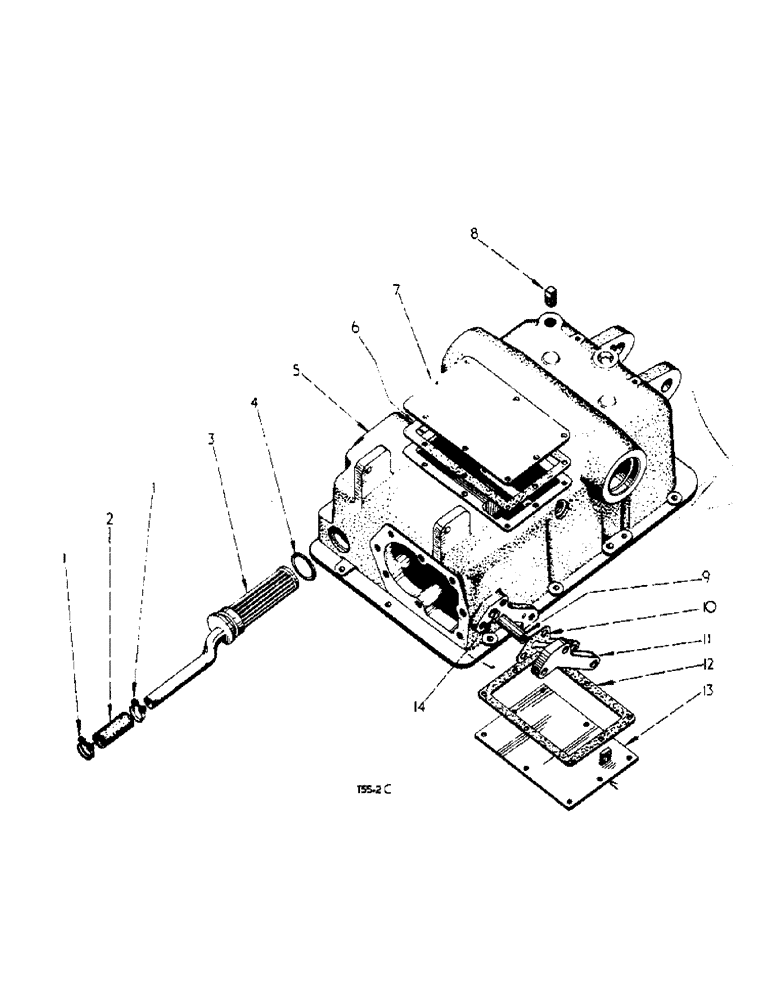

Запчасти Case IH 276 (5-12) - HYDRAULIC LIFT ATTACHMENT, VARY TOUCH (08) - HYDRAULICS

3044363R91

ATTACHMENT, hydraulic lift, comprising CONTROL LEVER (see detail list) CONTROL VALVE ASSY. (see detail list) HOUSING LIFT ARMS (see detail list) PUMP (see detail list) PIPES, suction and pressure (see detail list)

1шт.

1

705937R91

CLIP

CLAMP, hose, housing, hydraulic lift attachment (vary touch)

2шт.

2

704741R1

HOSE,0.81" ID x 2.50"

Suction Filter, Housing, Hydraulic Lift Attachment 0.81" ID x 2.50"

1шт.

3

3044368R93

FILTER

cpte., suction, housing, hydraulic lift attachment (vary touch)

1шт.

4

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

"O" RING, suction filter, housing, hydraulic lift attachment (vary touch)

1шт.

5

3044365R4

HOUSING

hydraulic lift, attachment (vary touch)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, hex-hd., 3/8" x 1-3/8", housing, hydraulic lift attachment (vary touch)

8шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

hex-hd., 3/8" x 3-3/4", housing, hydraulic lift attachment (vary touch)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Housing, hydraulic lift attachment (vary touch) 3/8"

11шт.

6

3044367R2

GASKET

top cover plate, housing, hydraulic lift attachment (vary touch)

1шт.

7

3044366R1

PLATE

top cover, housing, hydraulic lift attachment (vary touch)

1шт.

179814

SPACER

Housing, hydraulic lift attachment (vary touch) Hex, 5/16"-18 x 5/8", G5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Housing, hydraulic lift attachment (vary touch) 5/16"

8шт.

8

217-442

PLUG,3/4" - 14

3/4" ANPT pipe, housing, hydraulic lift attachment (vary touch)

1шт.

9

751540R1

CONNECTOR, ELEC

CONNECTOR, valve return, housing, hydraulic lift attachment (vary touch)

1шт.

10

3061055R2

GASKET

auxiliary valve, cover plate, housing, hydraulic lift attachment (vary touch)

1шт.

11

751541R1

PLATE

auxiliary valve, cover, housing, hydraulic lift attachment (vary touch)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

hex hd. 3/8"-16 x 1-1/4", Housing, hydraulic lift attachment (vary touch)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Housing, hydraulic lift attachment (vary touch) 3/8"

3шт.

12

751499R2

GASKET

hydraulic lift housing, cover plate, attachment (vary touch)

1шт.

13

751497R11

PLATE

cpte., cover, hydraulic lift housing, attachment (vary touch)

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Housing, hydraulic lift attachment (vary touch) Hex, 5/16"-18 x 5/8", G5

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, , Housing, hydraulic lift attachment (vary touch) 5/16"

8шт.

14

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

"O" RING, 9/16" x 3/4" x 3/32" (class 6), housing, hydraulic lift attachment (vary touch)

1шт.

58997DB

PLUG

magnetic drain, 3/4" NPT, housing, hydraulic lift attachment (vary touch)

1шт.

172570

PLUG,Exp, 1 3/8"

1-3/8" expansion, housing, hydraulic lift attachment (vary touch)

1шт.
