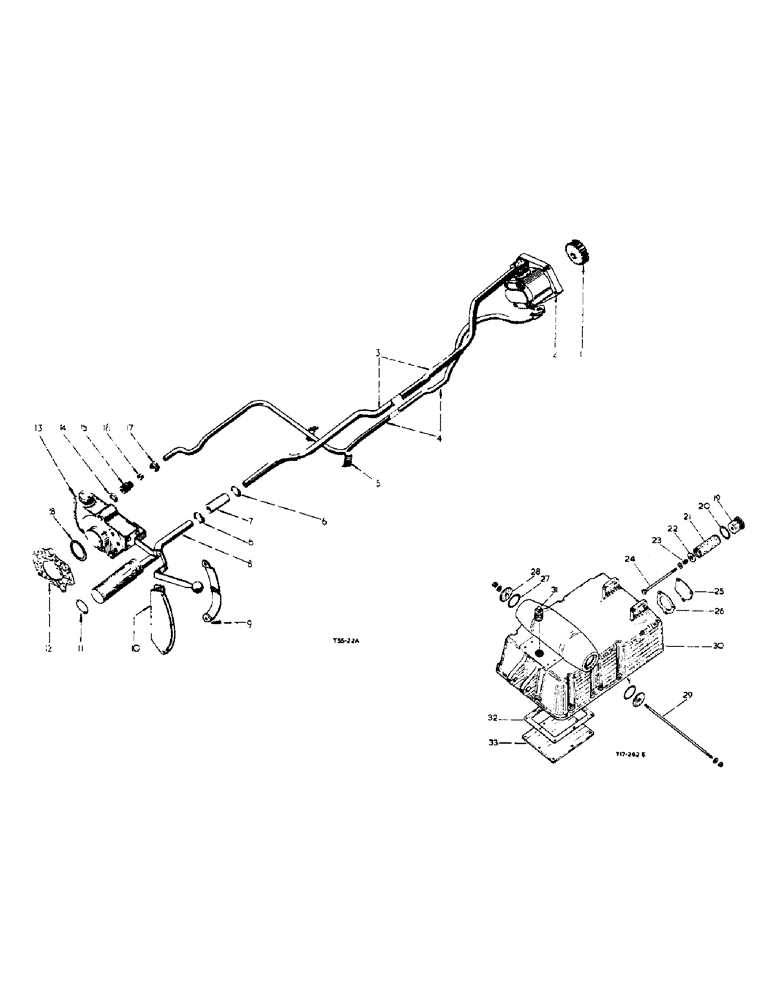

Запчасти Case IH 276 (5-10) - HYDRAULIC LIFT ATTACHMENT, FOR USE WITH REMOTE CYLINDERS (08) - HYDRAULICS

ATTACHMENT, hydraulic lift (Factory Application), comprising

1шт.

1

704331R1

GEAR

PINION, hydraulic pump

1шт.

2

PUMP, cpte., hydraulic (see detail list)

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

3шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

3

704332R22

MANIFOLD

PIPE, cpte., suction

1шт.

4

704334R22

MANIFOLD

PIPE, cpte., pressure

1шт.

5

706405R1

CLAMP

hydraulic pipe

2шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

705937R1

CLAMP, hose

2шт.

7

704741R1

HOSE,0.81" ID x 2.50"

Connecting, Suction Filter 0.81" ID x 2.50"

1шт.

8

704342R92

FILTER

cpte., suction

1шт.

9

3040078R2

STRIP

quadrant

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex-hd., 3/8" x 5/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

750232R1

QUADRANT, control lever

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

"O" RING, suction filter

1шт.

12

704625R3

GASKET

control vale

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

"O" RING, gasket, control valve 1/2" x 11/16" x 3/32" (class 5)

1шт.

13

704624R93

VALVE, w/LEVER, cpte., control (see detail list)

1шт.

271566

SUPPORT,Hex, 5/8" - 11 x 3", Gr 5

hex-hd., 5/8" x 3"

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

hex-hd., 5/8" x 2-1/2"

1шт.

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

BOLT, hex-hd., 5/8" x 1-7/8"

1шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.

14

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

15

704336R1

COUPLING, BREAK AWAY

COUPLING, male, parallel, 1/2" x 1/2" BSP

1шт.

16

705519R1

RING

sealing (Ermeto)

1шт.

17

705520R1

NUT,0.69" Length

(Ermeto)

1шт.

18

704341R1

O-RING

"O" RING, cyl.

1шт.

19

704740R2

BODY

by-pass filter

1шт.

705817R1

PIN, by-pass filter

1шт.

20

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

"O" RING, by-pass filter

1шт.

21

704353R91

FILTER

assy., by-pass

1шт.

22

704739R1

SEAT, by-pass filter hold-dowm spring

1шт.

23

704738R1

VALVE SPRING

SPRING, by-pass filter hold-down

1шт.

24

18575R1

BOLT, hex-hd., 5/8" UNF x 6-1/2"

1шт.

Q398

WASHER

plain, 11/32" x 7/8" x 16 ga.

1шт.

25

708177R1

PLATE, depth control blanking

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

26

704381R1

GASKET

depth control blanking plate

1шт.

27

704341R1

O-RING

"O" RING

2шт.

28

708179R1

WASHER, blanking

2шт.

29

708178R1

ROD, tie

1шт.

102635

NUT,3/8"-16, G5

2шт.

Q1505

WASHER

plain, 13/32" x 1" x 16 ga.

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

704274R31

HOUSING, w/two PLUGS 112428 and PLUG 103869 cpte., hydraulic lift

1шт.

179842

SPACER

BOLT, hex-hd., 3/8" x 1-3/8"

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

31

217-442

PLUG,3/4" - 14

pipe. 3/4" NPT (opt.)

1шт.

31

NLS

NO LONGER SERVICED

pipe, 3/4" NPT (opt.)

1шт.

32

704339R1

GASKET

hydraulic lift housing cover plate

1шт.

33

704338R1

PLATE

hydraulic lift housing cover

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

708181R1

GASKET

2шт.

112428

PLUG

cork, No. 9

2шт.
