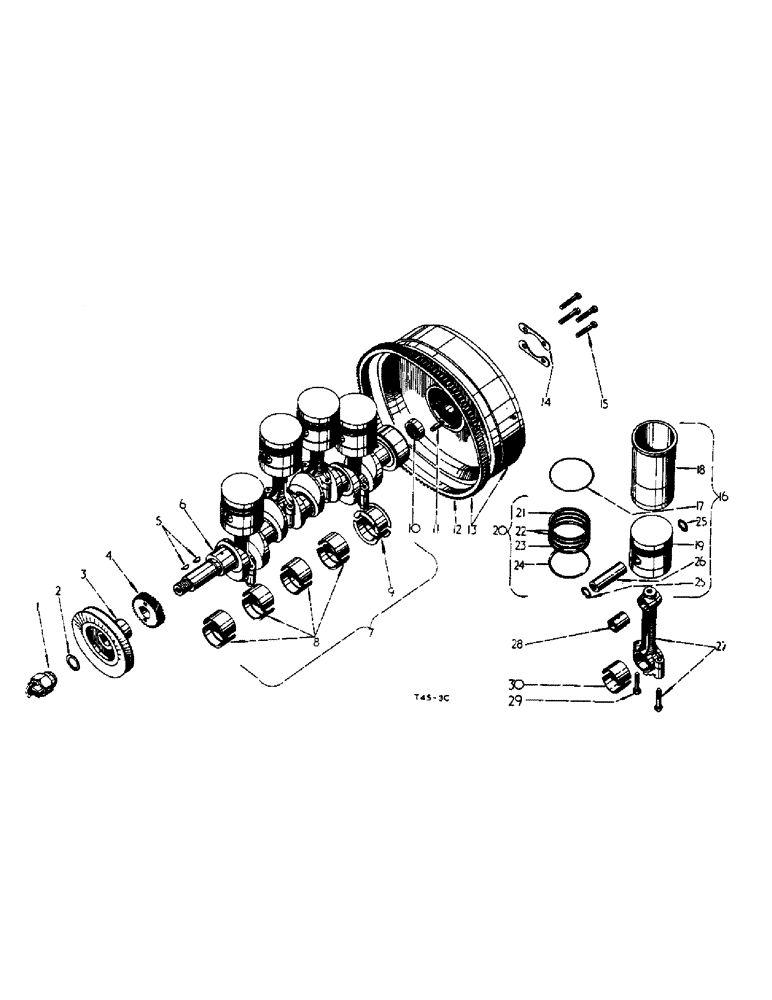

Запчасти Case IH 276 (1-07) - CRANKSHAFT AND CONNECTING RODS AND PISTON UNIT (02) - ENGINE

1

3107767R1

TINE

NUT, starting crank

1шт.

2

193-17

LOCK WASHER,Ext Tooth, 1"

WASHER, LOCK, Ext Tooth, 1"

1шт.

3

708286R1

PULLEY

fan drive (D.P.A. Inj.)

1шт.

135269

RIVET, plain, solid, truss-hd., 5/32" x 5/8" (used w/Fabricated Pulleys)

6шт.

4

703865R1

GEAR

PINION, crankshaft (33 teeth)

1шт.

5

218211

DRIVING SPROCKET

Woodruff, No. 91(1/4" x 3/4")

2шт.

6

751303R51

CRANKSHAFT

std., cpte., w/two PINS 24550D and BEARING 708909R93

1шт.

7

708912R91

CRANKSHAFT BEARING

BEARING, crankshaft main (std.), comprising

1шт.

3064523R11

CRANKSHAFT BEARING

BEARING

4шт.

708910R91

BEARING ASSY

BEARING

1шт.

7

708913R91

CRANKSHAFT BEARING

BEARING, crankshaft main (.030 undersize), comprising

1шт.

3064524R11

BEARING LINER

BEARING

4шт.

708911R91

BEARING ASSY

BEARING

1шт.

7

708914R91

CRANKSHAFT BEARING

BEARING, crankshaft main (.015 undersize), comprising

1шт.

3064525R11

BEARING LINER

BEARING

4шт.

708915R91

BEARING ASSY

BEARING

1шт.

8

3064523R11

CRANKSHAFT BEARING

BEARING, crankshaft main front and centre (std.) cpte.

4шт.

3064524R11

BEARING LINER

BEARING, crankshaft main front and centre (.030 undersize) cpte.

4шт.

3064525R11

BEARING LINER

BEARING, crankshaft main front and centre (.015 undersize) cpte.

4шт.

9

708910R91

BEARING ASSY

BEARING, crankshaft main rear (std.) cpte.

1шт.

708911R91

BEARING ASSY

BEARING, crankshaft main rear (.030 undersize) cpte.

1шт.

708915R91

BEARING ASSY

BEARING, crankshaft main rear (.015 undersize) cpte.

1шт.

10

708909R93

BALL BEARING,20 mm ID x 47 mm OD x 14"

BEARING, clutch pilot (Fischer)

1шт.

10

751846R93

BALL BEARING

clutch pilot (R&M)

1шт.

10

751847R93

BALL BEARING

clutch pilot (S.K.F.)

1шт.

10

751848R94

BALL BEARING

BEARING, clutch pilot (Hoffman)

1шт.

11

24550D

PIN

dowel, flywheel

2шт.

12

704436R1

SPROCKET

GEAR, flywheel ring

1шт.

13

3040913R11

FLYWHEEL

w/RING GEAR 704436R1 and two PINS 141215

1шт.

14

3069118R2

SHEET

LOCK, flywheel bolt

2шт.

15

709517R1

BOLT,Hex, 7/16" - 20 x 1 3/4"

flywheel

4шт.

16

751603R92

SLEEVE CYLINDER

SLEEVE, cyl. and pistons, cpte., (set of 4), comprising

1шт.

751604R92

PISTON & RINGS KIT

PISTONS and SLEEVES

4шт.

16

751604R92

PISTON & RINGS KIT

PISTON, with sleeve and rings, cpte., comprising

4шт.

751605R92

PISTON

1шт.

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING

1шт.

704092R1

LINER, ENGINE CYLIND

SLEEVE

1шт.

17

704100R1

SEALING RING,5.46mm Thk x 91.06mm ID

RING, packing, cyl., sleeve

4шт.

18

704092R1

LINER, ENGINE CYLIND

SLEEVE, cyl.

4шт.

19

3048523R1

PISTON, without rings (opt.)

4шт.

19

704099R2

PISTON ASSY

PISTON, without rings (opt.)

4шт.

19

751605R92

PISTON

pin and rings, assy., comprising

4шт.

704094R1

LARGE PIN

PIN

1шт.

704099R2

PISTON ASSY

PISTON

1шт.

704095R1

SNAP RING,M28, Int

RETAINER

2шт.

704096R1

RING

1шт.

704097R1

RING

2шт.

751606R91

PISTON RING

RING

1шт.

704098R1

RING

1шт.

20

751607R91

SEGMENT

RING, piston, set, comprising

1шт.

704096R1

RING

4шт.

704097R1

RING

8шт.

704098R1

RING

4шт.

751606R91

PISTON RING

RING

4шт.

21

704096R1

RING

piston, compression, top (opt.)

4шт.

21

3048252R1

RING, piston, commpression, top (opt.)

4шт.

22

704097R1

RING, piston, compression (opt.)

8шт.

22

3048253R1

RING, piston, compression (opt.)

8шт.

23

751606R91

PISTON RING

RING, piston, oil control, top (opt.)

4шт.

23

3047733R91

RING, piston, oil control, top (opt.)

4шт.

24

704098R1

RING, piston, oil control (opt.)

4шт.

24

705993R1

RING, piston, oil control (opt.)

4шт.

25

704095R1

SNAP RING,M28, Int

RETAINER, piston pin

8шт.

26

704094R1

LARGE PIN

PIN, piston (std.)

4шт.

706411R1

PIN

piston (.005 oversize)

1шт.

27

3061216R91

CONNECTING ROD

ROD, connecting cpte., (set of four), comprising

1шт.

3061214R91

PITMAN ASSY.

ROD

4шт.

27

704089R91

CONNECTING ROD

ROD, connecting, cpte. (set of four) (order 3061216R91)

1шт.

27

3061214R91

PITMAN ASSY.

ROD, connecting, assy., comprising

4шт.

3043216R1

BOLT,3/8" - 24 x 2"

2шт.

711045R1

BUSHING

BUSH

1шт.

NSS

NOT SOLD SEPARAT

CAP

1шт.

NSS

NOT SOLD SEPARAT

ROD

1шт.

28

711045R1

BUSHING

BUSH, piston pin (opt.)

4шт.

28

3043611R1

BUSHING

BUSH, piston pin (opt.)

4шт.

28

3043216R1

BOLT,3/8" - 24 x 2"

connecting rod

8шт.

30

3070536R11

BEARING

connecting rod, cpte., std. (two halves)

4шт.

30

3070537R11

BEARING

connecting rod, cpte., (.030 undersize) (two halves)

1шт.

30

3070538R11

JOURNAL

BEARING, connecting rod, cpte., (.015 undersize) (two halves)

1шт.

3070546R91

BEARING LINER

BEARING, connecting rod, std. comprising four BEARING 3070536R11

1шт.

3070547R91

CRANKSHAFT BEARING

BEARING, connecting rod, (.030 undersize) comprising four BEARING 3070537R11

1шт.

3070539R91

BEARING LINER

BEARING, connecting rod, (.015 undersize) comprising four BEARING 3070538R11

1шт.

141215

PIN,5/16" x 1/2"

S, used with flywheel

2шт.

3067471R91

PACKAGE, service, undersize crankshaft, comprising

1шт.

3067472R11

CRANKSHAFT, .015 undersize, cpte., w/PIN 24550D

1шт.

24550D

PIN

dowel, flywheel

2шт.

708914R91

CRANKSHAFT BEARING

SET of crankshaft main bearings

1шт.
