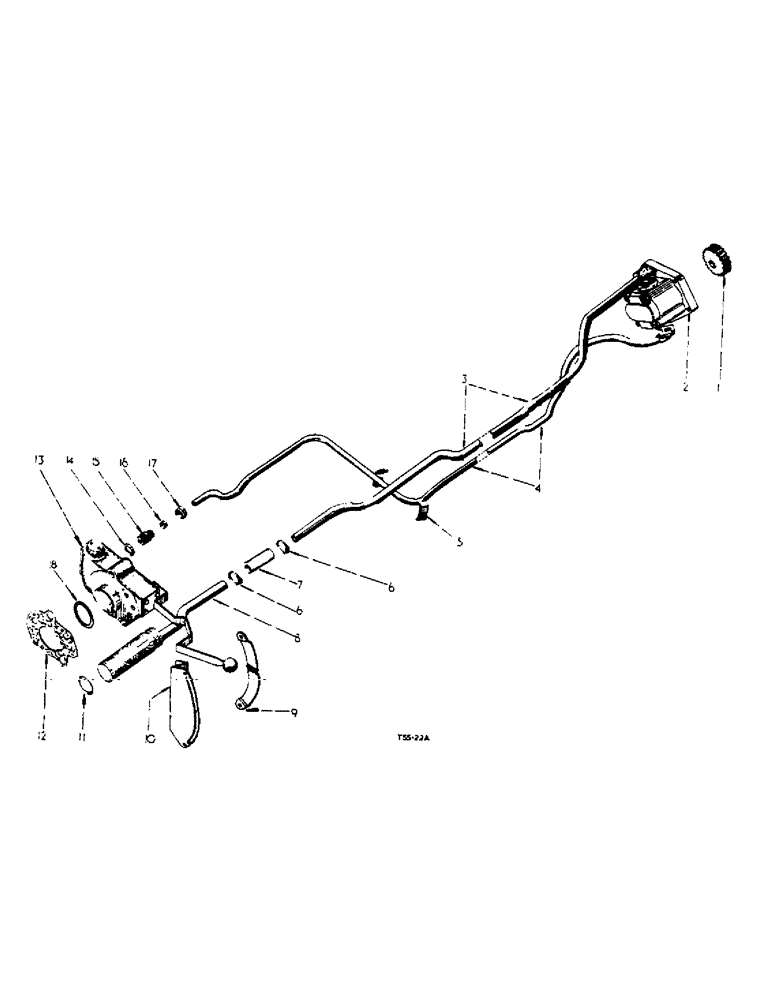

Запчасти Case IH 276 (5-04) - HYDRAULIC PUMP AND CONTROL VALVE, HYDRAULIC LIFT ATTACHMENT (08) - HYDRAULICS

1

704331R1

GEAR

PINION, hydraulic pump

1шт.

2

PUMP, cpte., hydraulic (see detail list)

1шт.

179828

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

2шт.

3

704332R22

MANIFOLD

PIPE, cpte., suction

1шт.

4

704334R22

MANIFOLD

PIPE, cpte., pressure

1шт.

5

706405R1

CLAMP

hydraulic pipe

2шт.

179799

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

6

705937R91

CLIP

LAMP, hose

2шт.

7

704741R1

HOSE,0.81" ID x 2.50"

Connecting, Suction Filter 0.81" ID x 2.50"

1шт.

8

704342R92

FILTER

cpte., suction

1шт.

9

3040078R2

STRIP

quadranr

1шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

hex-hd., 3/8" x 5/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

705232R1

QUADRANT, control lever

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

704348R1

O-RING,0.139" Thk x 1.687" ID, Cl 5

"O" RING, suction filter

1шт.

12

704625R3

GASKET

control valve

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

"O" RING, gasket, control valve

1шт.

13

704624R93

VALVE, w/LEVER, cpte., control (see detail list)

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

hex-hd., 5/8" x 3", Course Threads

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

hex-hd., 5/8" x 2-1/2"

1шт.

271561

PANEL

BOLT, hex-hd., 5/8" x 1-7/8"

1шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

3шт.

14

704337R1

SEALING WASHER

WASHER, sealing, 1/2" BSP

1шт.

15

704336R1

COUPLING, BREAK AWAY

COUPLING,(body only) male, parallel 1/2" x 1/2" BSP

1шт.

16

705519R1

RING

sealing (Ermeto)

1шт.

17

705520R1

NUT,0.69" Length

(Ermeto)

1шт.

18

704341R1

O-RING

"O" RING, cyl.

2шт.
