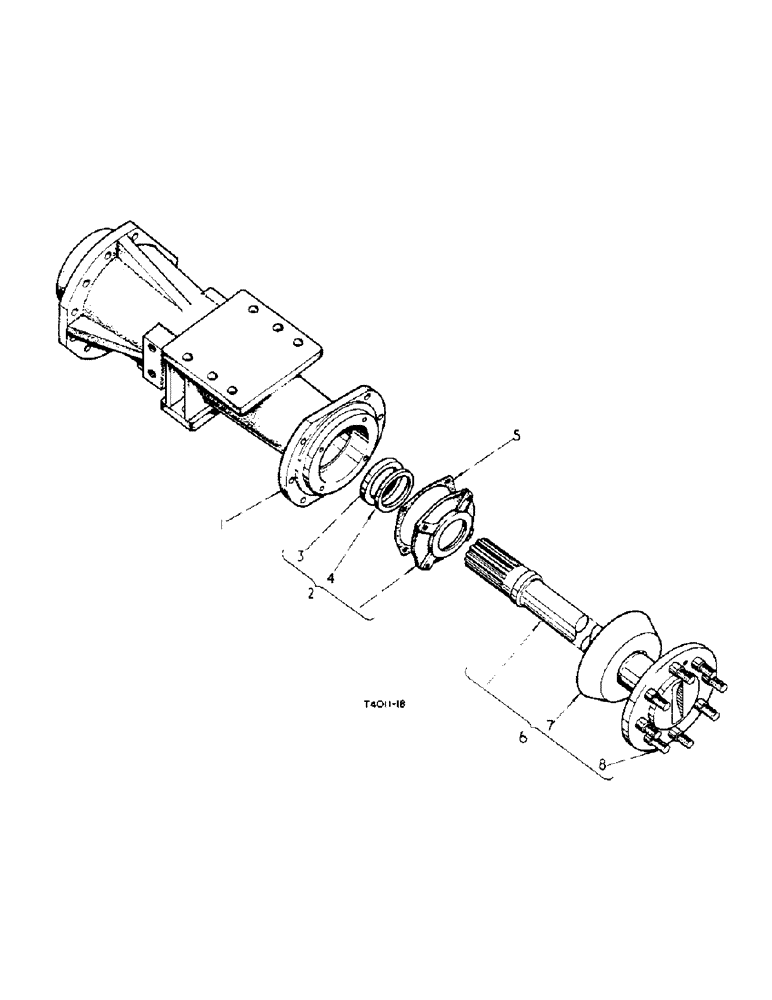

Запчасти Case IH 276 (8-07) - REAR AXLE AND CARRIERS, HAND OPERATED DRUM BRAKE ATTACHMENT (07) - BRAKES

1

3107829R1

CARRIER

rear axle, L.H. (Illustrated)

1шт.

1

3107830R1

CARRIER

axle, R.H.

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

hex-hd., 1/2" x 1-3/8"

20шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

2

702110R11

RETAINER, cpte., rear axle bearing w/SEAL 703916R91 and WASHER 703915R1

2шт.

3

703916R91

SEAL

oil (opt.)

2шт.

3

703917R92

OIL SEAL

oil (opt.)

2шт.

3

3069987R91

SEAL

oil (opt.)

2шт.

4

703915R1

WASHER,2.56mm ID x 3.13mm OD x 0.25mm Thk

rear axle, felt

2шт.

5

711197R1

GASKET

rear axle bearing retainer

2шт.

6

709111R21

AXLE

rear, cpte., w/eight BOLT 3047577R2 and FLINGER 709113R1

2шт.

7

709113R1

FLINGER, oil, rear wheel hub

2шт.

8

3047577R2

BOLT,Wheel, 5/8" - 18 x 2 1/2"

rear wheel hub

16шт.

3047575R2

NUT,Wheel, 5/8"-18

rear wheel

16шт.

3069349R91

BEARING, BALL

rear axle, inner (opt.)

2шт.

3069352R91

BEARING, BALL

rear axle, inner (opt.)

2шт.

3069353R91

BALL BEARING

BEARING, ball, rear axle, inner (opt.)

2шт.

3069355R91

BEARING, BALL

rear axle, inner (opt.)

2шт.

709251R1

COLLAR

rear axle

2шт.

933078R1

SNAP RING,M110, Int

RING, locking (opt.)

2шт.

703911R1

RING

CIRCLIP, 110 mm. (opt.)

2шт.
