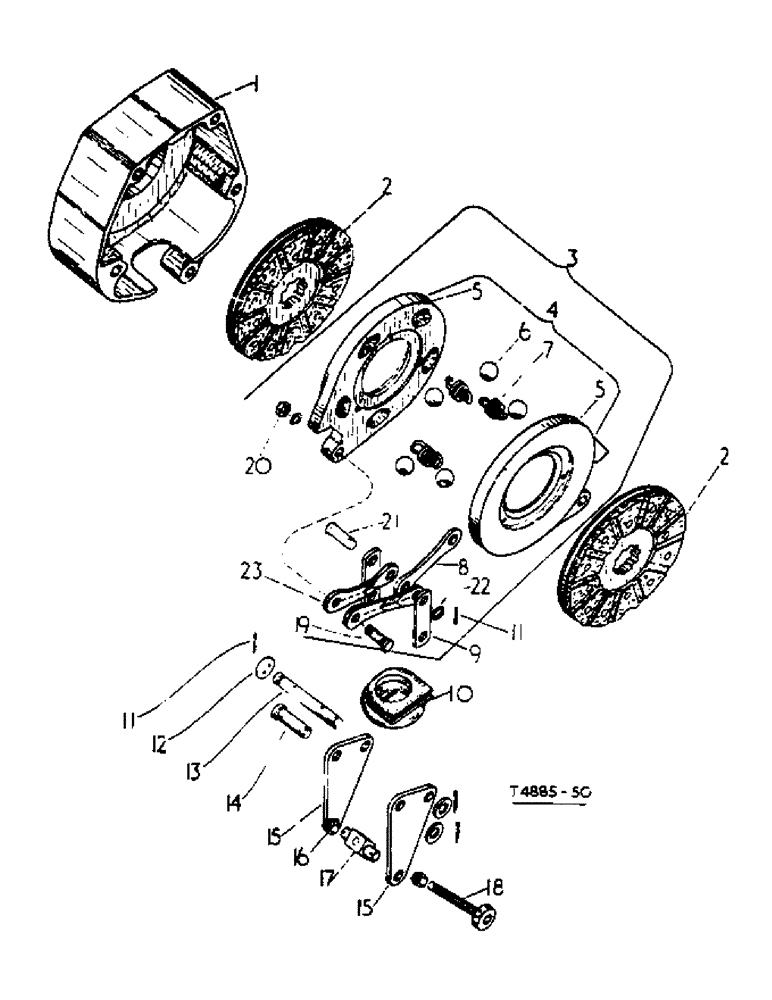

Запчасти Case IH 276 (4-35) - DISC BRAKES 276/2069 UP (07) - BRAKES

KEY TO UNITS

1шт.

3064168R93

BRAKE

assy., disc, R.H. (Illustrated) (A)

1шт.

3064167R93

BRAKE

1шт.

BRAKE, assy., disc, L.H. Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

3105293R1

HOUSING, brake R.H. (Illustrated) (A)

1шт.

1

3105297R1

HOUSING

brake L.H.

1шт.

2

3064170R91

BRAKE DISC

DISC, lined friction, assy.

2шт.

3

3105296R91

ACTUATOR

UNIT, assy., actuating disc, comprising

1шт.

3105299R91

DISC

1шт.

3105303R1

LINK

2шт.

3105302R1

LINK

1шт.

3067140R1

LINK

2шт.

3105301R1

NUT

2шт.

3105300R1

BOLT

PIN

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN

1шт.

3071519R1

PIN

1шт.

3067142R1

WASHER

1шт.

4

3105299R91

DISC

w/two DISC 3105304R1, five BALL 706039R2 and three SPRING 3066876R1 cpte., actuating assy.

1шт.

5

3105304R1

DISC

actuating

2шт.

6

706089R2

BALL, 7/8" dia.

5шт.

7

3066876R1

SPRING

return disc

3шт.

8

3105302R1

LINK

plain

1шт.

9

3067140R1

LINK

tension

2шт.

10

3064173R1

BOOT

rubber

1шт.

11

3071519R1

PIN

split, 3/32" x 7/8" long (A 6) (B 5)

1шт.

12

3067147R1

WASHER

plain, 35/64" x 1" x .090" (A5) (B4)

1шт.

13

3064195R1

PIN

brake operating pivot (A)

1шт.

14

3064216R1

PIN

tension link (A) (B2)

1шт.

15

3064194R1

LEVER

brake operating

2шт.

16

3067136R1

LOCK NUT

lock, 3/8" UNF (special)

2шт.

17

3064217R1

TRUNNION

brake operating lever (blank)

1шт.

18

3064218R1

BOLT

footbrake adjuster

1шт.

19

3105300R1

BOLT

PIN, pivot

2шт.

20

3105301R1

NUT

lock

2шт.

21

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, jaw

1шт.

22

3067142R1

WASHER

1шт.

23

3105303R1

LINK

cranked

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

hex-hd., 1/2" x 3-1/2" (A3)(B4)

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

(A) Hex, 1/2"-13 x 3 3/4", G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3040152R92

LINING

PACKAGE, brake lining, service

1шт.

704423R2

RIVET

1шт.
