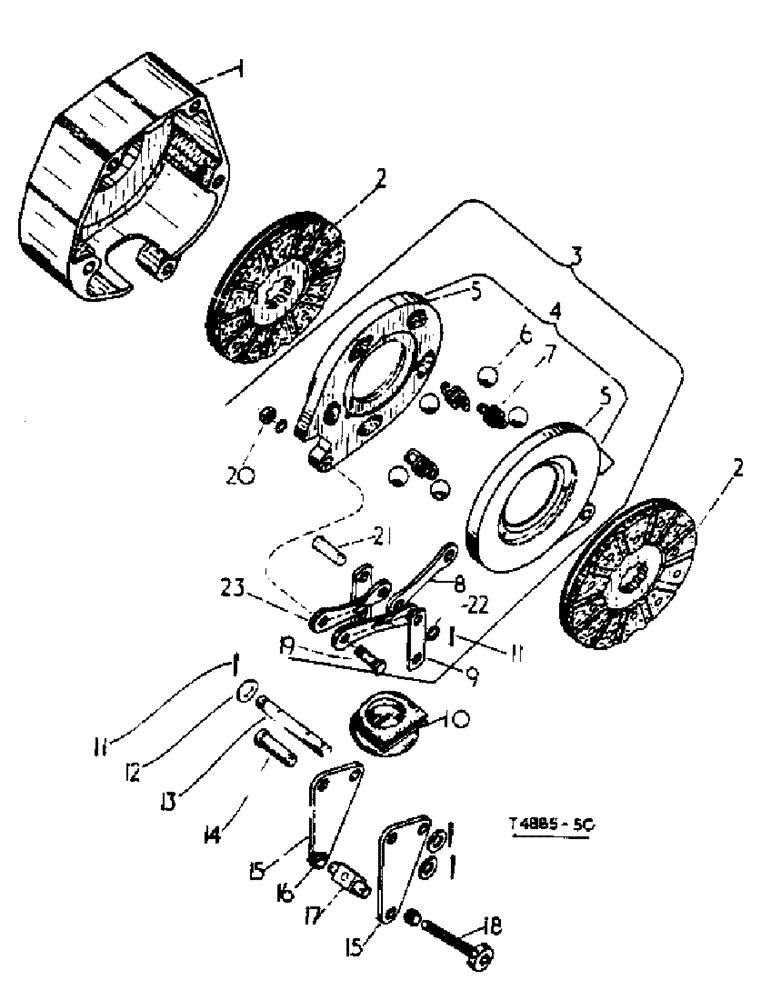

Запчасти Case IH 276 (4-34) - DISC BRAKES UP TO 276/2068 (07) - BRAKES

KEY TO UNITS

1шт.

3064168R92

BRAKE, assy., disc, R.H. (Illustrated) (A)

1шт.

3064167R92

NO LONGER SERVICED

1шт.

BRAKE, assy., disc, L.H. (B) Units. Letters of these units correspond with those following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

1

3064172R1

HOUSING

brake R.H.(Illustrated) (A)

1шт.

1

3064171R1

HOUSING

brake L.H.

1шт.

2

3064170R91

BRAKE DISC

DISC, lined friction, assy.

2шт.

3

3067135R92

ACTUATOR

UNIT, assy., actuating disc, comprising

1шт.

3064169R91

DISC

1шт.

3072278R1

LINK

2шт.

705967R1

LINK

1шт.

3067140R1

LINK

2шт.

118624

JAM NUT,Jam, 5/16"-24, G5

2шт.

3067137R1

PIN

2шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN

1шт.

3071519R1

PIN

1шт.

3067142R1

WASHER

1шт.

4

3064169R91

DISC

w/two DISC 3067144R1, five BALL 706039R2 and three SPRING 3066876R1 cpte., actuating assy.

1шт.

5

3067144R1

TRAY

DISC, actuating

2шт.

6

706089R2

BALL, 7/8" dia.

5шт.

7

3066876R1

SPRING

return disc

3шт.

8

705967R1

LINK

2шт.

9

3067140R1

LINK

tension

2шт.

10

3064173R1

BOOT

rubber

1шт.

11

3071519R1

PIN

split, 3/32" x 7/8" long (A6) (B5)

1шт.

12

3067147R1

WASHER

plain, 35/64" x 1" x .090" (A5) (B4)

1шт.

13

3064195R1

PIN

brake operating pivot (A)

1шт.

14

3064216R1

PIN

tension link (A) (B2)

1шт.

15

3064194R1

LEVER

brake operating

2шт.

16

3067136R1

LOCK NUT

lock, 3/8" UNF (special)

2шт.

17

3064217R1

TRUNNION

brake operating lever (blank)

1шт.

18

3064218R1

BOLT

footbrake adjuster

1шт.

19

3067137R1

PIN

pivot

2шт.

20

118624

JAM NUT,Jam, 5/16"-24, G5

lock

2шт.

21

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, jaw

1шт.

22

3067142R1

WASHER

1шт.

23

3072278R1

LINK

joggle

2шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

hex-hd., 1/2" x 3-1/2" (A3) (B4)

1шт.

179896

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

(A) Hex, 1/2"-13 x 3 3/4", G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3040152R92

LINING

PACKAGE, brake lining, service

1шт.

704423R2

RIVET

1шт.

3067211R91

PACKAGE, field, disc brake 6-1/2" x 3-1/2"

1шт.

3072613R91

FIP KIT

PACKAGE, field improvement 6-1/2" x 3-1/2", disc brake

1шт.
