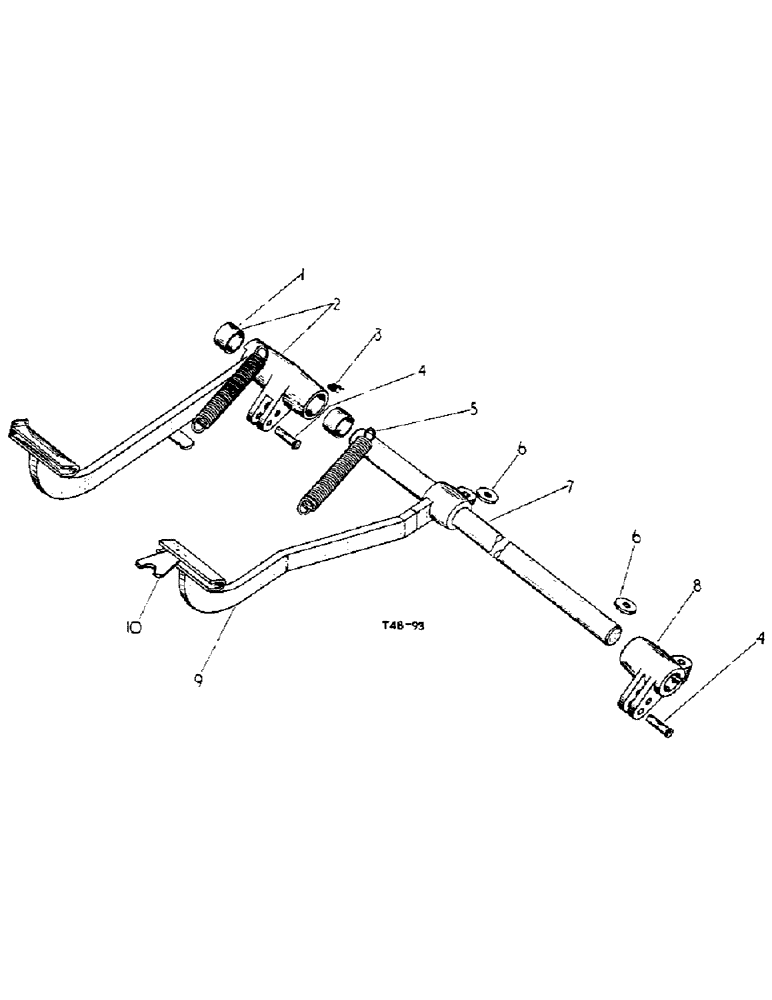

Запчасти Case IH 276 (4-33) - FOOT BRAKES AND LINKAGE (07) - BRAKES

1

3061206R1

BUSHING

brake pedal cross shaft

2шт.

2

3064177R91

PEDAL

w/FITTING 109461 and two BUSHING 3061206R1 cpte., R.H. brake

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

4

3064219R1

PIN

footbrake adjuster

2шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

495-11053

WASHER,1/2", SAE

plain, 17/32" x 1-1/16" x .095 ga.

2шт.

5

3064186R2

SPRING

brake pedal return

2шт.

6

3064184R1

KEY

brake lever

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

3064175R2

SHAFT

brake pedal

1шт.

3072088R1

RETAINER

CIRCLIP

1шт.

8

3064185R1

LEVER

L.H. disc brake

1шт.

9

3064176R91

PEDAL

w/PLATE 43751DB, PIN 442946 and SPRING 51293D cpte., L.H. brake

1шт.

10

43751DB

LATCH, PEDALS

PLATE, brake pedal lock

1шт.

51293D

SPRING

brake pedal lock, plate tension

1шт.

38-31620

PIN,6.35mm OD x 31.75mm L

groove, 1/4" x 5/8" type 3

1шт.
