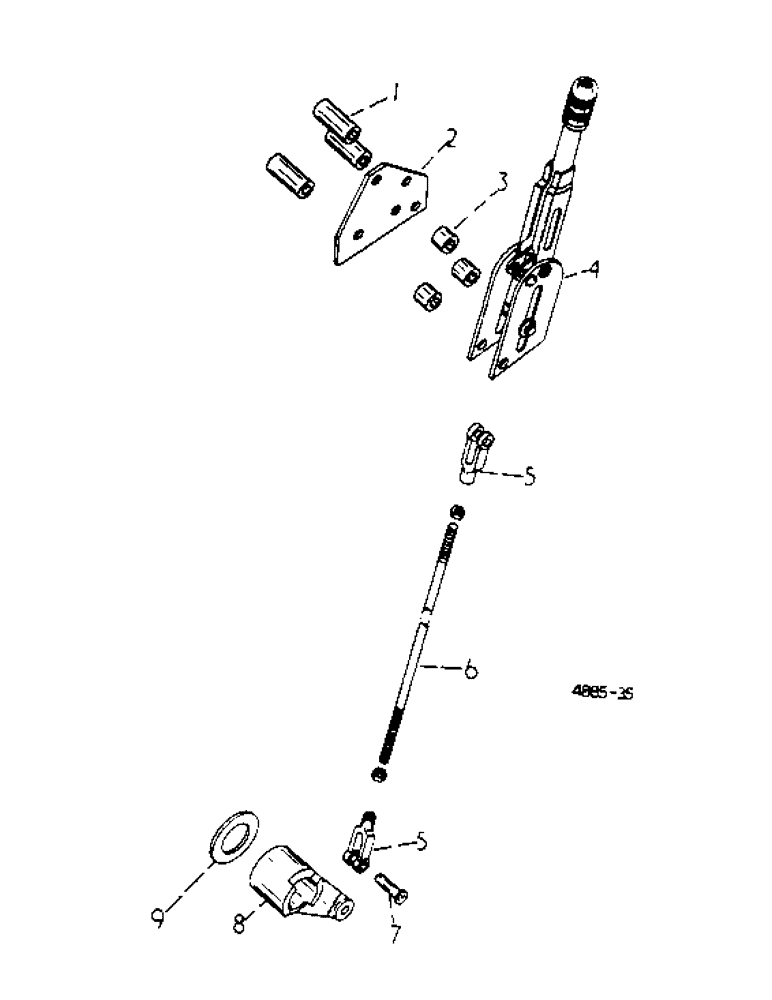

Запчасти Case IH 276 (4-32) - HANDBRAKE LINKAGE (07) - BRAKES

1

3047776R1

SPACER

handbrake mtg. plate

3шт.

2

3064187R1

PLATE

handbrake lever mtg.

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

3064188R1

SPACER

handbrake lever mtg. plate

3шт.

4

3045931R92

NO LONGER SERVICED

HANDBRAKE (see detail list)

1шт.

5

3071486R1

CLEVIS

5/16" UNF adjustable

2шт.

6

3064189R1

ROD

handbrake connecting

1шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

7

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16" x 1-1/16" rod end

1шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32" x 11/16" x .065 plain

1шт.

8

3070578R1

LEVER, handbrake operating

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

9

3064192R1

WASHER

pedal shaft

1шт.
