(6-46[1]) - REAR WHEEL, TIRE AND TUBE ATTACHMENT

Запчасти Case IH 276 (6-46[1]) - REAR WHEEL, TIRE AND TUBE ATTACHMENT (06) - POWER TRAIN

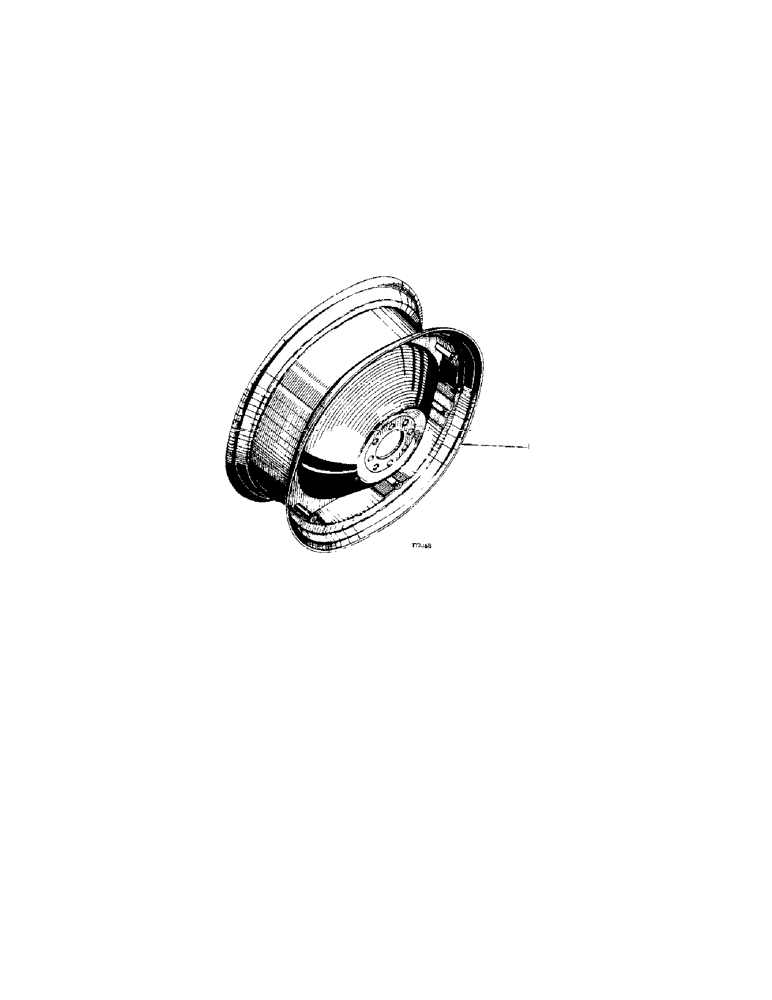

Схема запчастей Case IH 276 - (6-46[1]) - REAR WHEEL, TIRE AND TUBE ATTACHMENT (06) - POWER TRAIN
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

ref

Part No.

EnglishENT, rear wheel pneu. tyrehe

1шт.

3069484R91

ATTACHMENT, rear wheel pneu. tyrehe

1шт.

3069485R91

ATTACHMENT, rear wheel pneu. tyrehe

1шт.

3069489R91

ATTACHMENT, rear wheel pneu. tyrehe

1шт.

1

3048867R91

WHEEL ASSY.

WHEEL, cpte., rear, rim and disc W9

1шт.

1

3042291R92

RIM

WHEEL, cpte., rear, rim and disc W9

1шт.

3073908R1

BOLT

6шт.

3042290R1

DISC

1шт.

121358

YOKE

6шт.

703328R92

RIM

1шт.

703931R1

WASHER

6шт.
